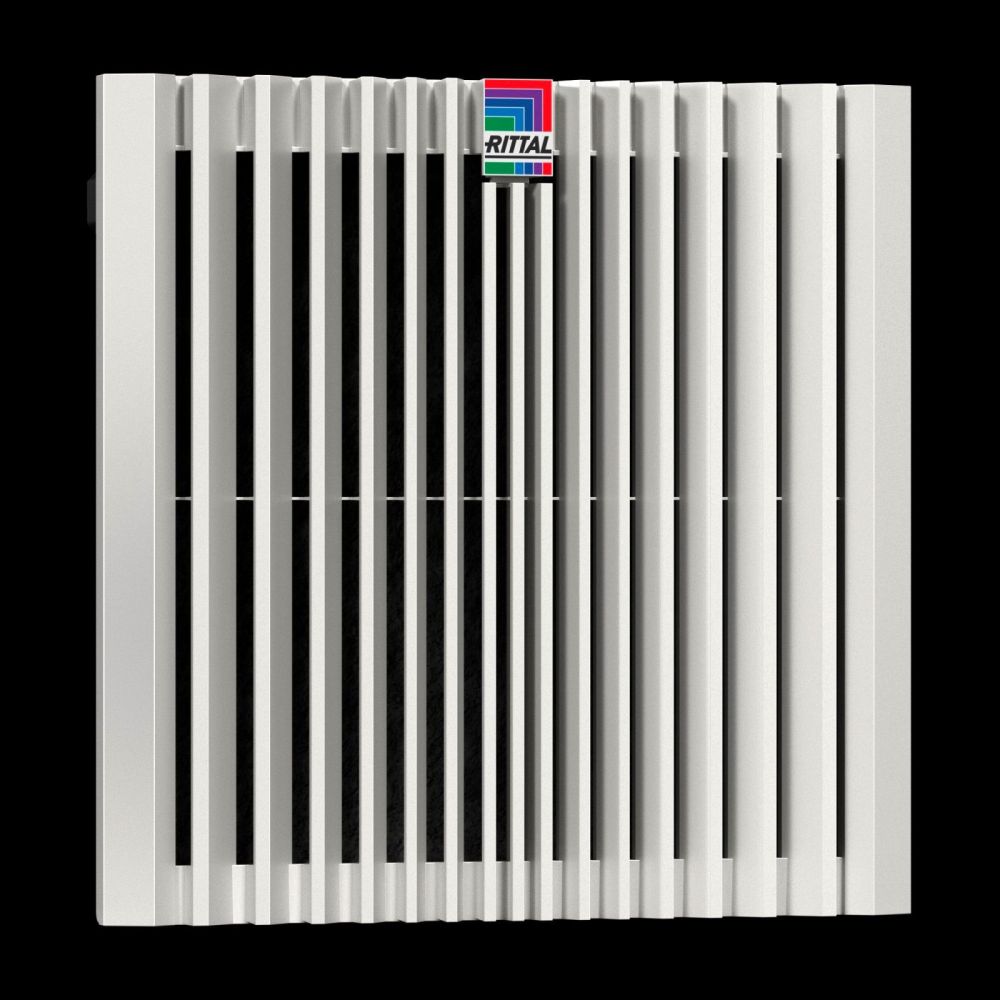

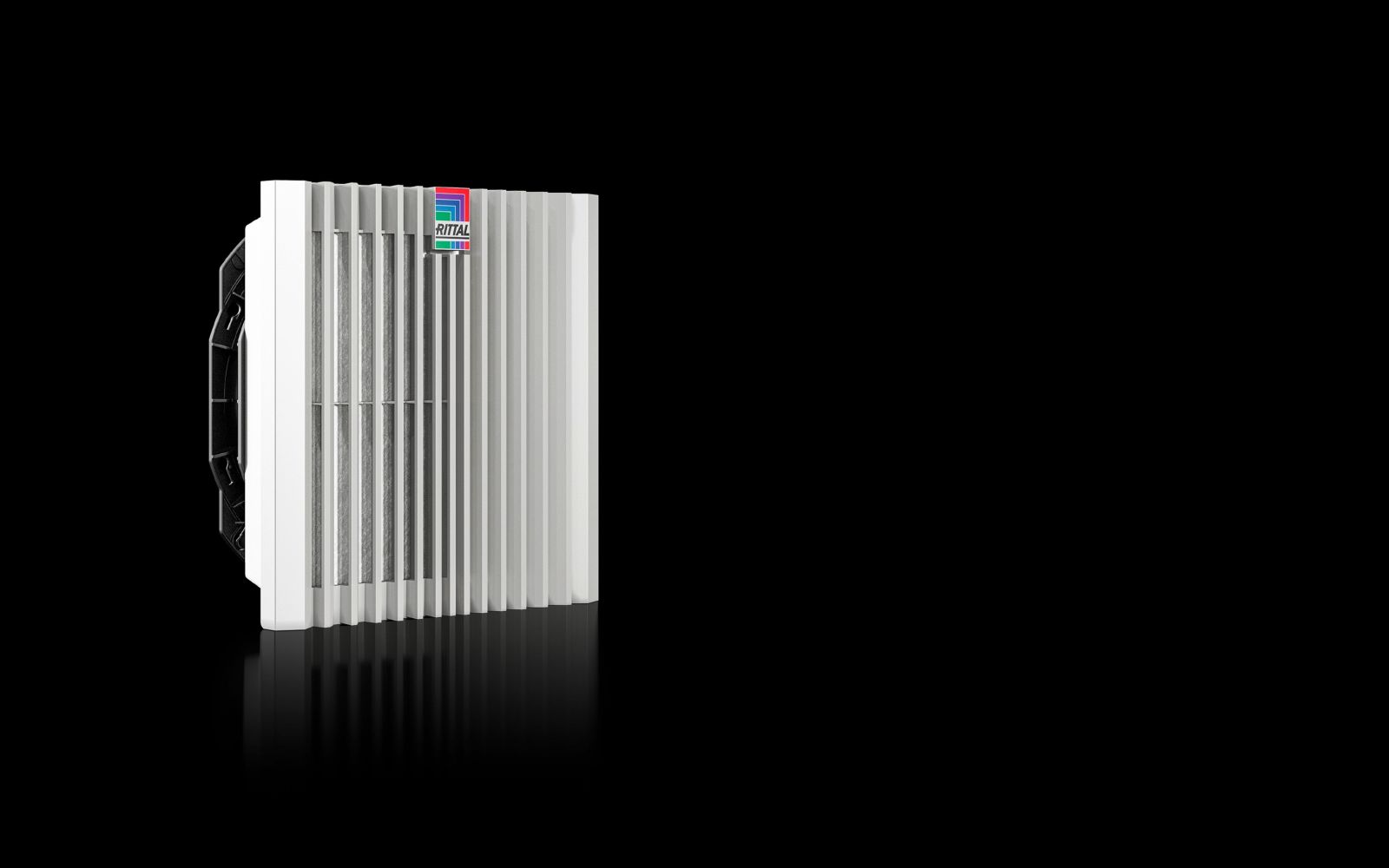

Rittal 3240800 Blue e+ filter fan EMV 175/157 m³/h, 230 V, RAL 7030
|
-9% 245,07 EUR 269,91 EUR |
|
|
( 291,63 EUR incl. VAT ) ≈ £205.12 | ≈ $269.33 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683838 |
| Mfg Part No: | 3240800 |
| UPC/EAN: | 4028177998094 |
| Weight: | 2.362 kg |
| Type: | SK 3240.800 |
Product information for Rittal 3240800:
Applications
The filter fan is suitable for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suited for systems equipped with electronic controls, power electronics, or other sensitive components. The EMC shielding meets requirement level 2 according to EN 61587-3, ensuring high attenuation of electromagnetic interference. This minimises interference with sensitive devices inside the enclosure.
Functions and Equipment in Detail

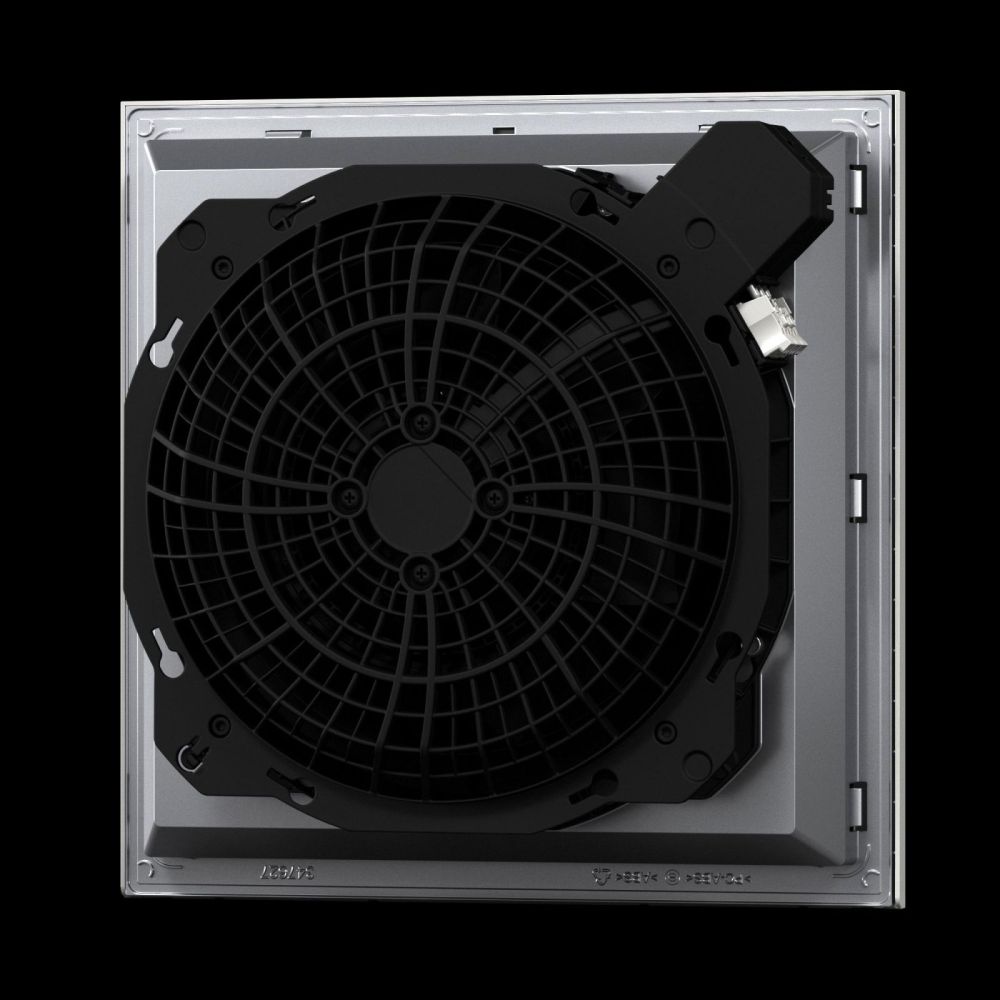

The fan features diagonal fan technology with a split-pole motor, providing higher pressure stability and thus enabling more uniform and consistent air circulation within the enclosure. The air performance is 175 m³/h at 50 Hz and 157 m³/h at 60 Hz when free-blowing (with non-woven filter). When used with the corresponding outlet filter including non-woven filter, the air performance reduces to 130 m³/h at 50 Hz and 112 m³/h at 60 Hz. The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The rated power is 33.1 W (50 Hz) or 37.3 W (60 Hz), and the rated current is maximum 0.2 A (50 Hz) or 0.21 A (60 Hz). The fuse is rated at 2 A.
Technology Explained Simply

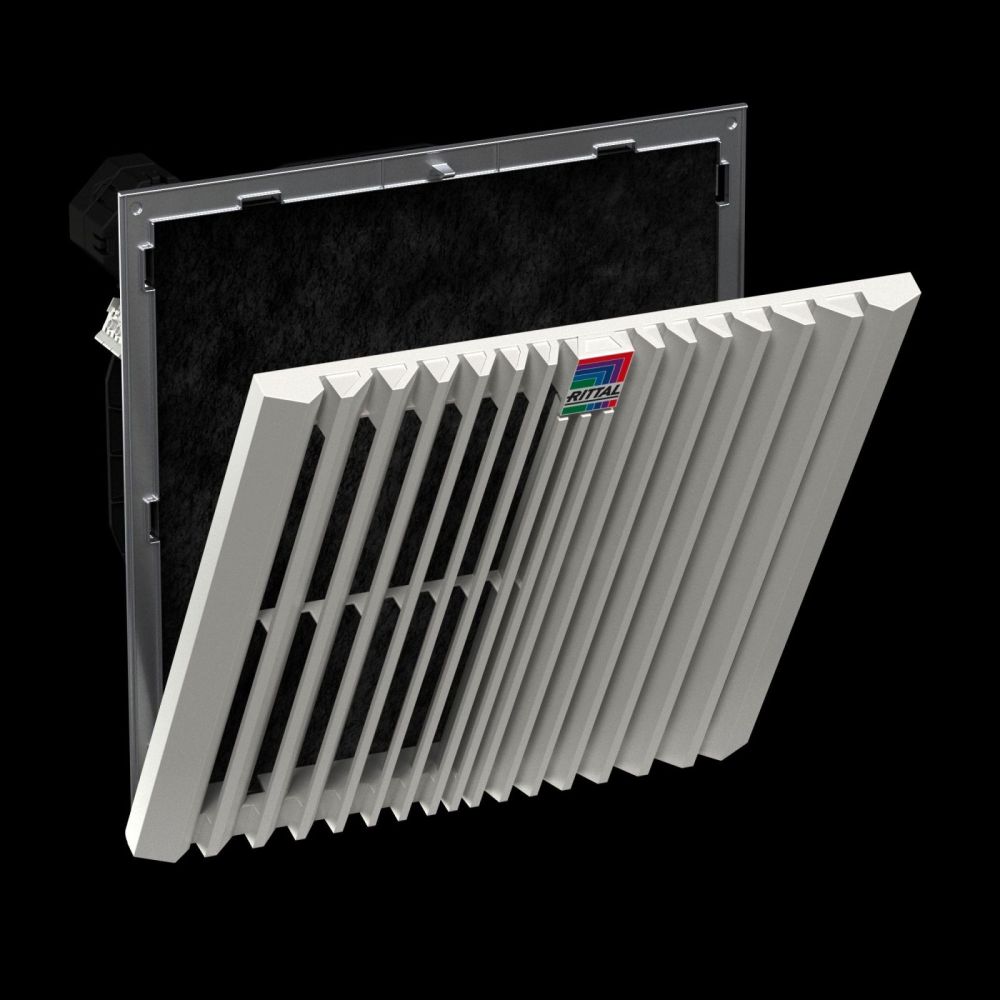

The diagonal fan technology ensures improved pressure stability, which is particularly beneficial at higher air resistance levels within the enclosure. Air is distributed evenly, resulting in consistent cooling performance. The EMC shielding protects against electromagnetic interference generated by other devices within the enclosure or from the surrounding environment. The filter mat provides mechanical separation of dust and particles, increasing air cleanliness inside the enclosure. The tool-free mounting via snap hooks reduces installation time and simplifies replacement.
Compatibility and Accessories
The fan can be combined with various accessories to extend functionality. These include the Blue e+ outlet filter EMC in RAL 7035, which further improves air cleanliness. For precise temperature control, a thermostat enclosure internal temperature controller, a speed controller for filter fans, or a digital temperature display and control can be used. The spray water hood made of stainless steel increases the protection rating to IP 56 (according to IEC 60 529) and Type 3, 3R, 4, 4X (according to NEMA), enabling use in outdoor or damp environments. A hygrostat can be used for humidity control.
Mounting and Installation

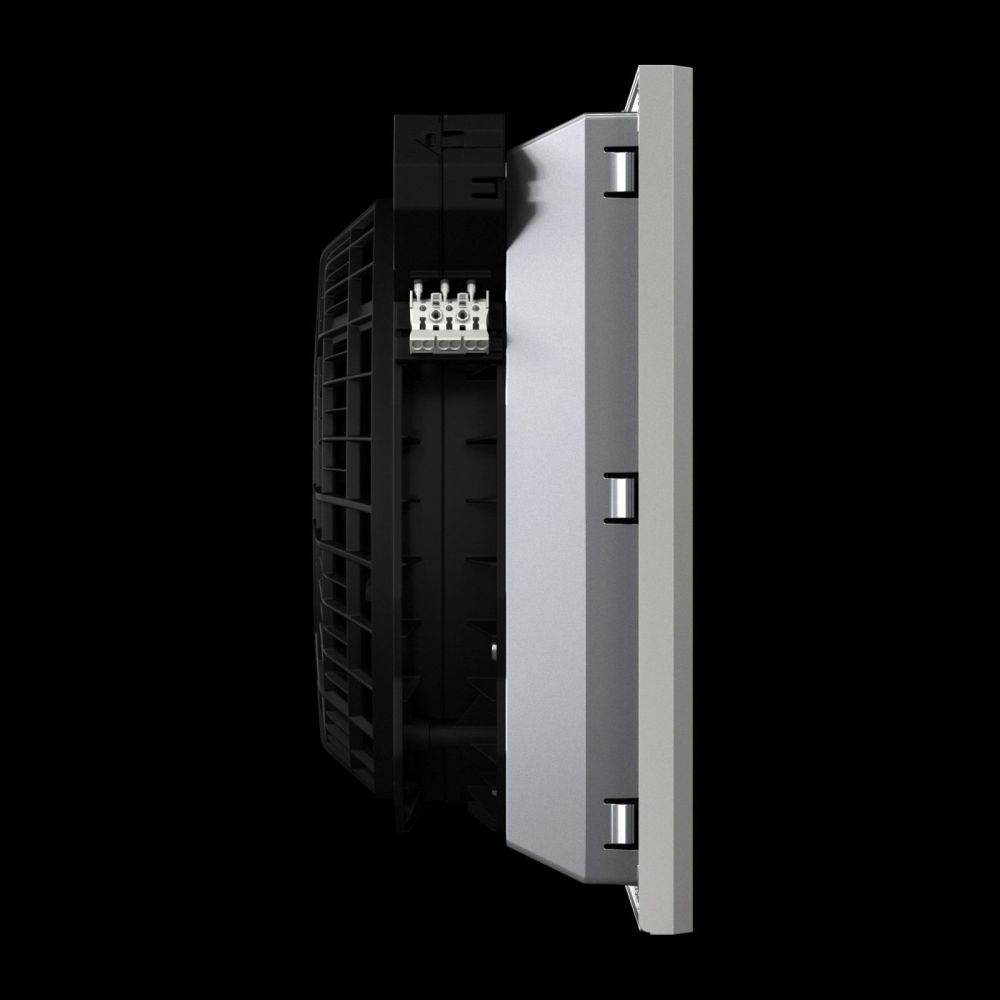

Mounting is tool-free onto the enclosure wall. The mounting cutout measures 224 mm (width) x 224 mm (height). The installation depth of the device is 108 mm, and the overall dimensions are 255 mm (width) x 255 mm (height) x 129 mm (depth). The unit is designed for installation on flat surfaces and adapts to standard enclosure front panels.
Operational Advantages
The operating temperature range is between -30 °C and 55 °C, and the storage temperature can reach up to 70 °C. The sound pressure level is 48 dB(A) at 50 Hz and 45 dB(A) at 60 Hz, ensuring quiet operation. The recommended use of temperature controllers or displays contributes to energy efficiency and extends the device's service life. The IP protection class 54 (with non-woven filter) and IP 56 (with non-woven filter and spray water hood), as well as NEMA Type 12 (with non-woven filter) and Type 3, 3R, 4, 4X (with non-woven filter and spray water hood), ensure high protection against dust and splashing water. The EMC shielding ensures reliable operation in electromagnetically demanding environments.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Diagonal, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 175 m³/h, at 60 Hz: 157 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 130 m³/h, At 60 Hz: 112 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 33.1 W, At 60 Hz: 37.3 W |
| Rated current max. | At 50 Hz: 0.2 A, At 60 Hz: 0.21 A |
| Width | 255 mm |
| Height | 255 mm |
| Depth | 129 mm |
| Built-in depth | 108 mm |
| Mounting cutout | Cutout width: 224 mm, cutout height: 224 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 48 dB(A), At 60 Hz: 45 dB(A) |
