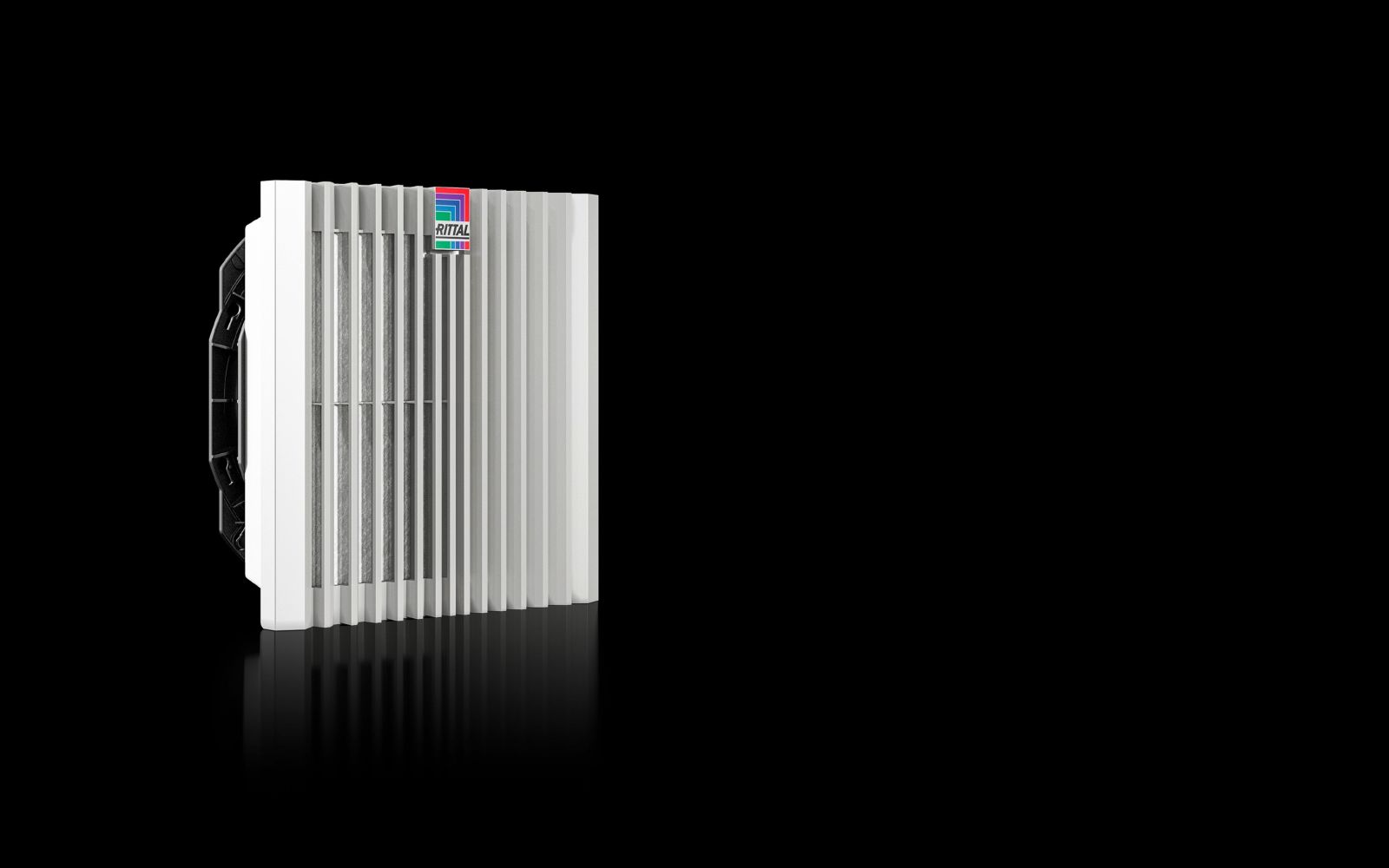

Rittal 3241800 Blue e+ filter fan EMV 225/245 m³/h, 230 V, RAL 70
|
253,12 EUR |
|
|
( 301,21 EUR incl. VAT ) ≈ £211.86 | ≈ $278.18 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683854 |
| Mfg Part No: | 3241800 |
| UPC/EAN: | 4028177998018 |
| Weight: | 2.36 kg |
| Type: | SK 3241.800 |
Product information for Rittal 3241800:
Applications
The filter fan is designed for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for systems operating in areas with increased dust or moisture exposure, as it is equipped with nonwoven filters that retain particles in the airflow. The integrated EMC shielding protects sensitive electronic components from electromagnetic interference, which is important in sensitive applications such as automation technology or process control.
Functions and Equipment in Detail

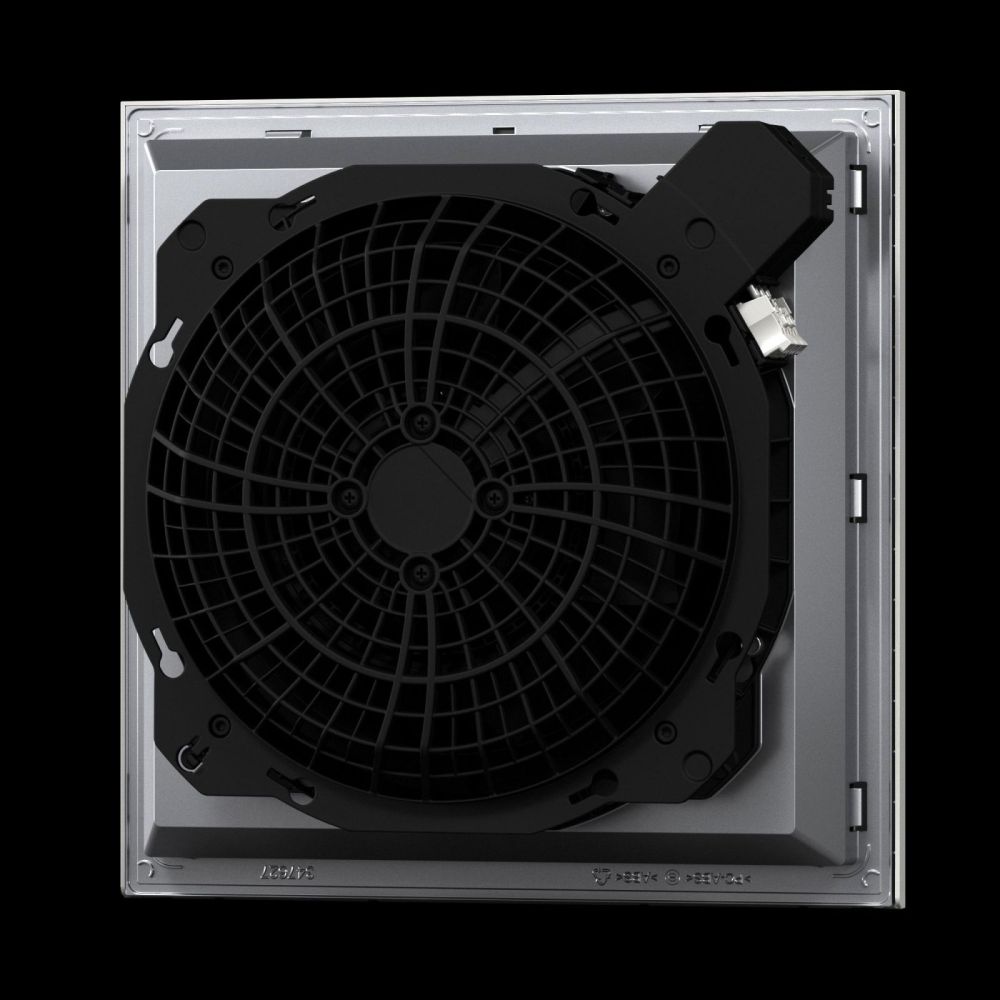

The fan operates with diagonal fan technology and a split-pole motor, ensuring higher pressure stability and thus more uniform, constant air circulation within the enclosure. The air performance is 225 m³/h at 50 Hz and 245 m³/h at 60 Hz when free-blown, while values decrease to 173 m³/h (50 Hz) and 187 m³/h (60 Hz) when used with the corresponding outlet filter including nonwoven filter. The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The rated power is 43.2 W at 50 Hz and 54.5 W at 60 Hz, with the maximum rated current being 0.27 A (50 Hz) and 0.32 A (60 Hz). The unit is equipped with a 4 A fuse, providing protection against overloads.
Technology Explained Simply

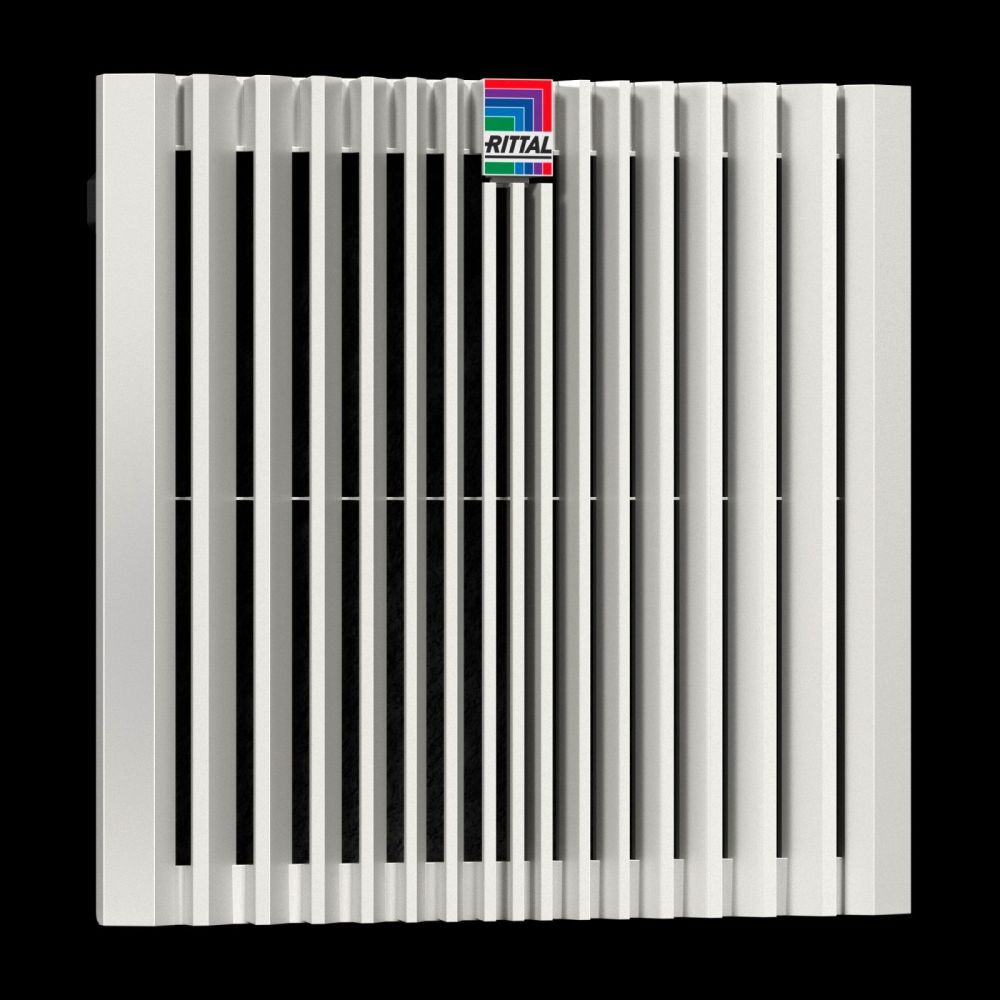

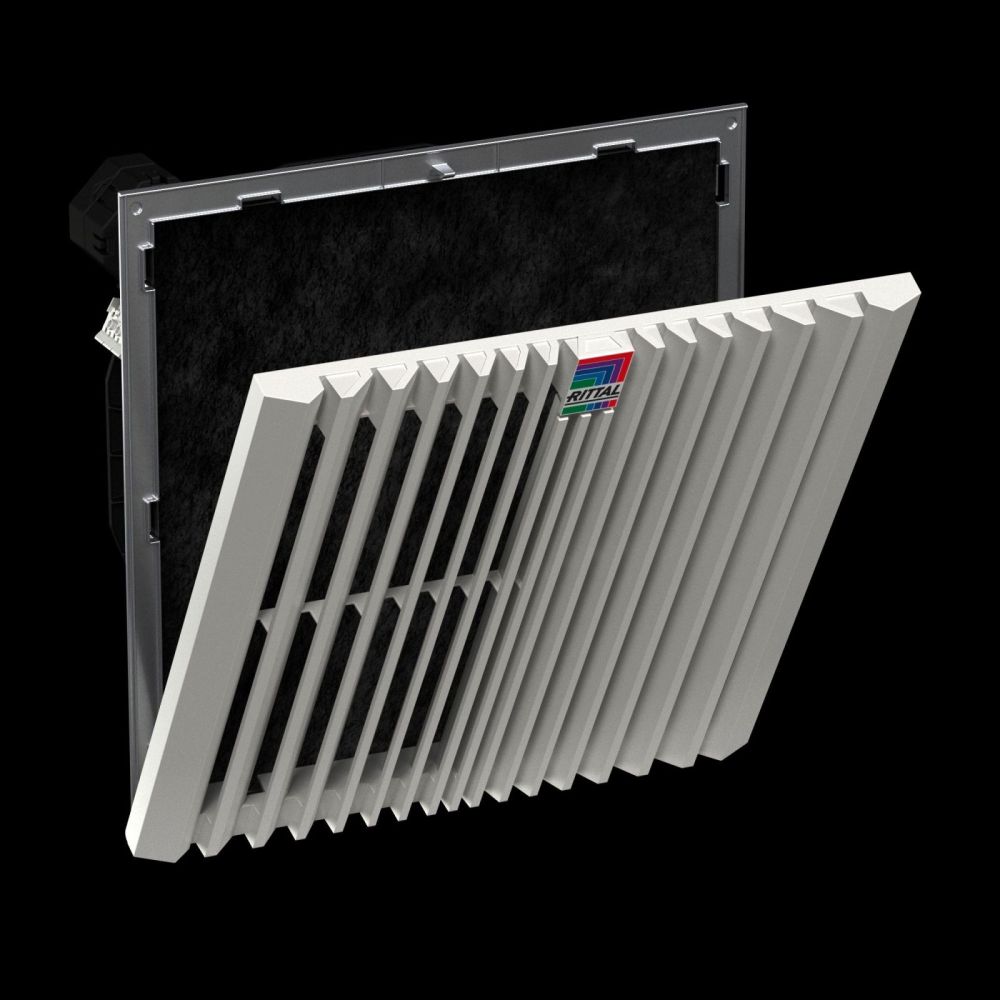

The diagonal fan technology ensures that the airflow is evenly and stably directed through the enclosure, enabling efficient cooling of installed components. The EMC filter mat reduces electromagnetic interference generated by the ventilation unit itself or picked up from external sources. The plastic construction ensures high mechanical stability with low weight. The tool-free mounting and optimized latching hooks allow for quick and easy installation on the enclosure. The opening mechanism on the louver grille facilitates filter replacement, simplifying maintenance.
Compatibility and Accessories
The filter fan can be combined with various accessories to extend functionality. These include EMC outlet filters in RAL 7035, which improve air purification, as well as thermostats and speed controllers that adjust fan speed according to internal temperature. A digital temperature display and control enables precise monitoring and regulation. For increased protection requirements, a spray water hood made of stainless steel can be used, increasing the protection rating to IP 56 (according to IEC 60 529) or NEMA Type 3, 3R, 4, 4X (with nonwoven filter and spray water hood). A hygrostat can be used for humidity control.
Mounting and Installation

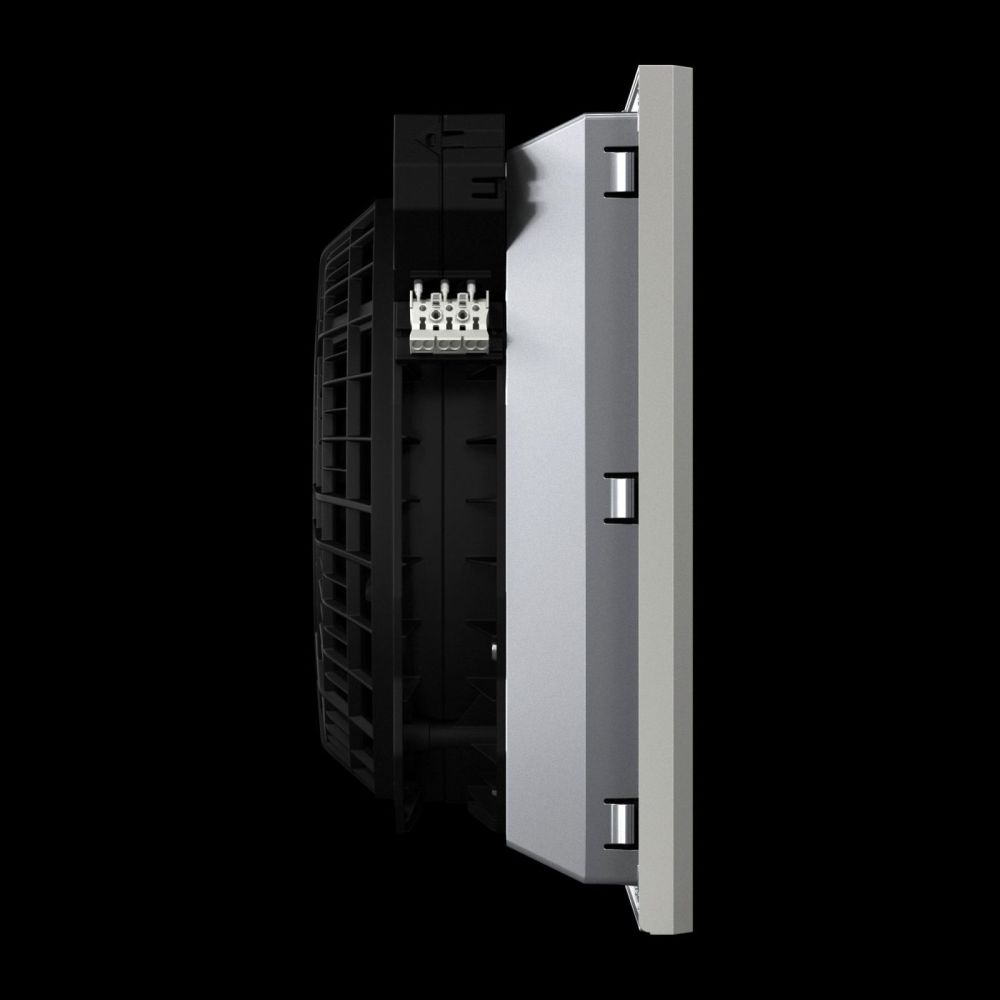

The unit is mounted as a wall-mounted installation and requires a mounting cutout of 224 mm width and 224 mm height. The installation depth is 108 mm, with overall dimensions of 255 mm (W) × 255 mm (H) × 129 mm (D). The tool-free mounting and optimized latching hooks enable quick and secure attachment to the enclosure. Installation is carried out directly on the enclosure front, with air intake through the integrated louver grille.
t
Operational Advantages
The operating temperature range is between -30 °C and 55 °C, enabling use in various climatic environments. The storage temperature can reach up to 70 °C. The sound pressure level is 53 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, ensuring acoustically pleasant operation. The recommendation to use temperature controllers or displays supports energy efficiency and extends the device’s lifespan, as targeted fan control avoids unnecessary operation. The protection rating IP 54 (with nonwoven filter) and IP 56 (with nonwoven filter and spray water hood), as well as the corresponding NEMA types (Type 12, 3, 3R, 4, 4X), ensure reliable operation in various environments.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Diagonal, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 225 m³/h, At 60 Hz: 245 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 173 m³/h, At 60 Hz: 187 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 43.2 W, At 60 Hz: 54.5 W |
| Rated current max. | At 50 Hz: 0.27 A, At 60 Hz: 0.32 A |
| Width | 255 mm |
| Height | 255 mm |
| Depth | 129 mm |
| Built-in depth | 108 mm |
| Mounting cutout | Cutout width: 224 mm, cutout height: 224 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield |
| Fuse | Circuit breaker/fuse: 4 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 53 dB(A), At 60 Hz: 54 dB(A) |
