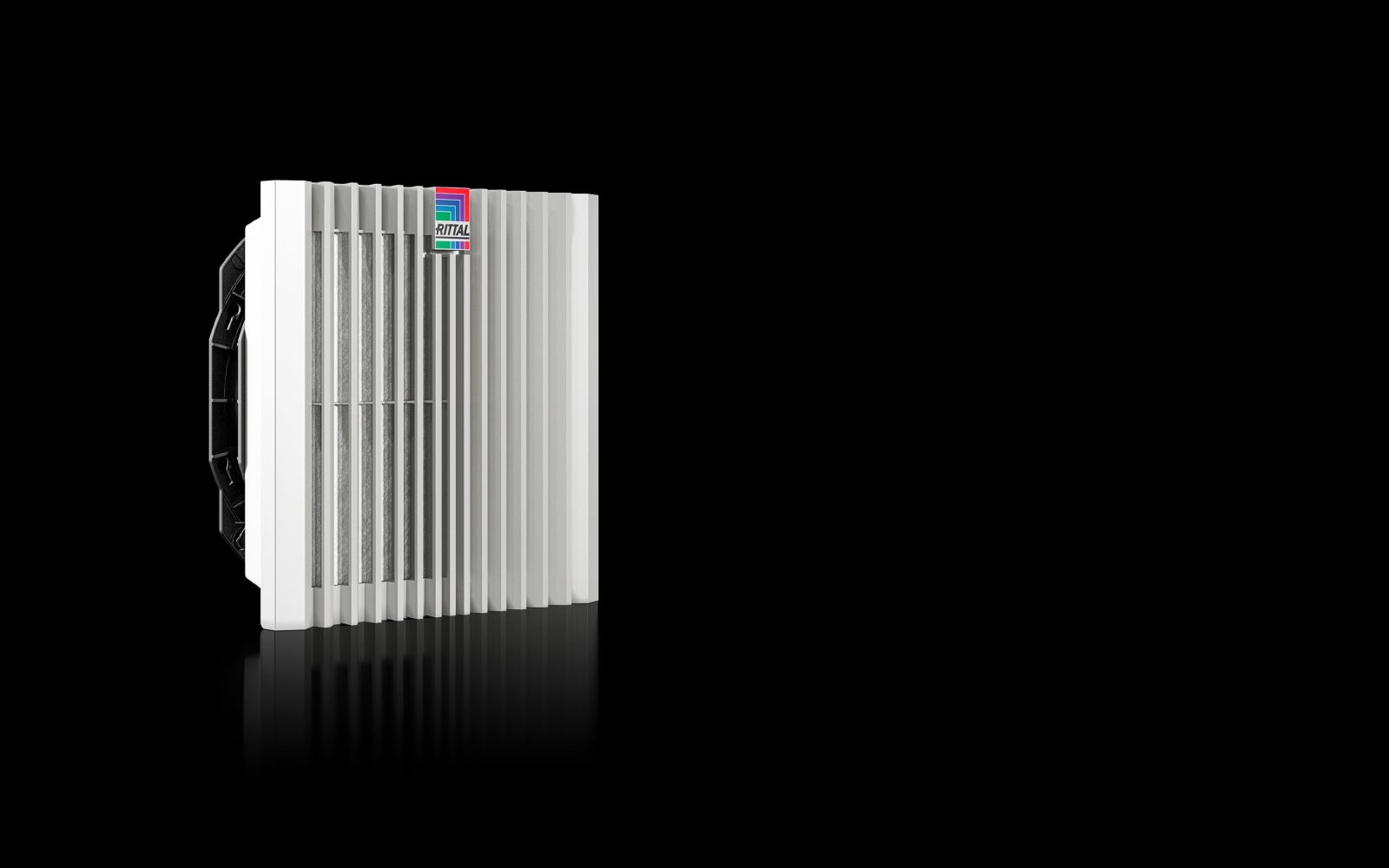

Rittal 3241810 Blue e+ filter fan EMV 225/245 m³/h, 230 V, RAL 70
|
-8% 297,85 EUR 322,58 EUR |
|
|
( 354,44 EUR incl. VAT ) ≈ £249.30 | ≈ $327.34 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683855 |
| Mfg Part No: | 3241810 |
| UPC/EAN: | 4028177998001 |
| Weight: | 2.36 kg |
| Type: | SK 3241.810 |
Product information for Rittal 3241810:
Applications
The filter fan is designed for use in industrial environments where continuous and reliable ventilation is required. It is particularly suitable for enclosures in production plants, automation systems, or manufacturing technology, where electronic components must be protected from overheating. The integrated EMC shielding minimizes electromagnetic interference generated by other devices in the enclosure and protects sensitive controls and sensors. The unit is suitable for indoor and outdoor use, provided additional protective measures such as a spray water hood are used.
Functions and Equipment in Detail

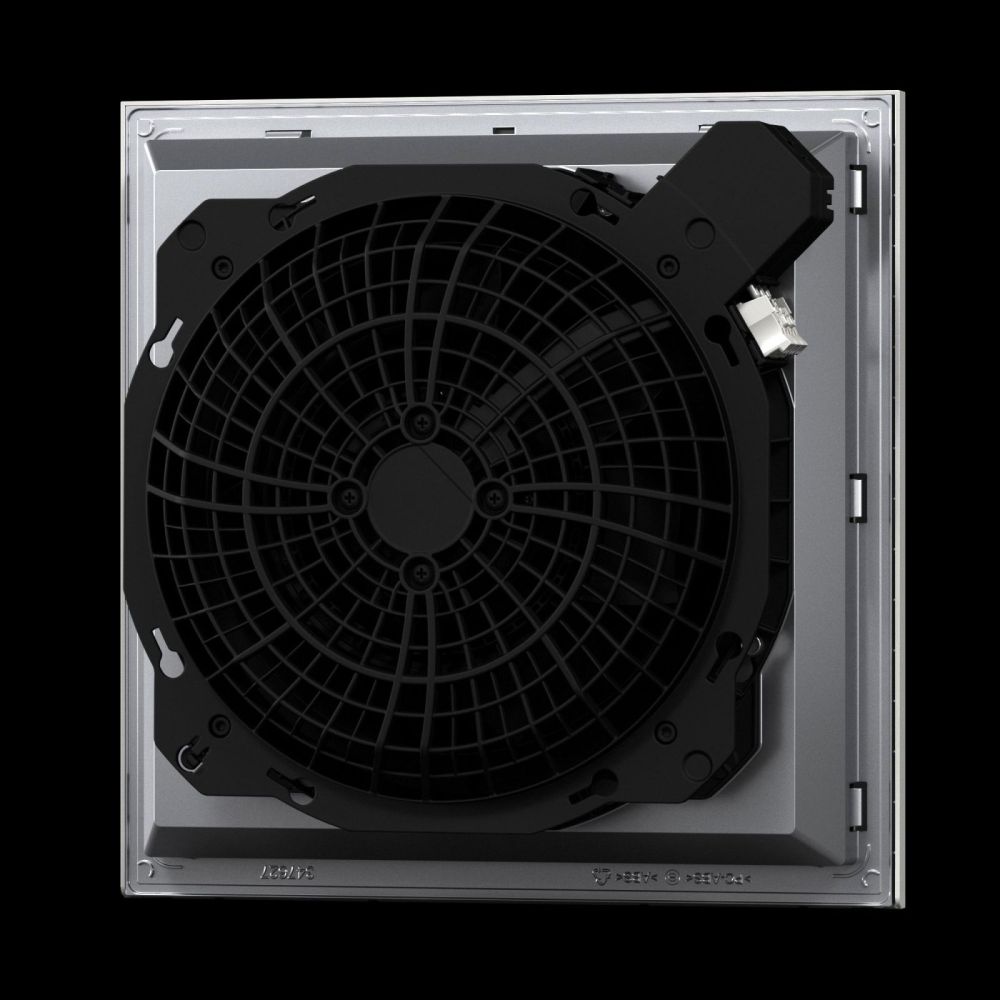

The fan features diagonal fan technology with a split-pole motor, ensuring higher pressure stability and thus enabling more uniform and consistent air circulation within the enclosure. The air performance is 225 m³/h at 50 Hz and 245 m³/h at 60 Hz when free-blowing, while the air performance decreases to 173 m³/h (50 Hz) or 187 m³/h (60 Hz) when used with a matching outlet filter including a fleece filter. The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz, with a rated current of maximum 0.54 A (50 Hz) or 0.6 A (60 Hz). The rated power is 43.4 kW (50 Hz) and 52.2 kW (60 Hz). The unit is designed for an operating temperature range of -30 °C to 55 °C and can be stored at -30 °C to 70 °C.
Technology Explained Simply

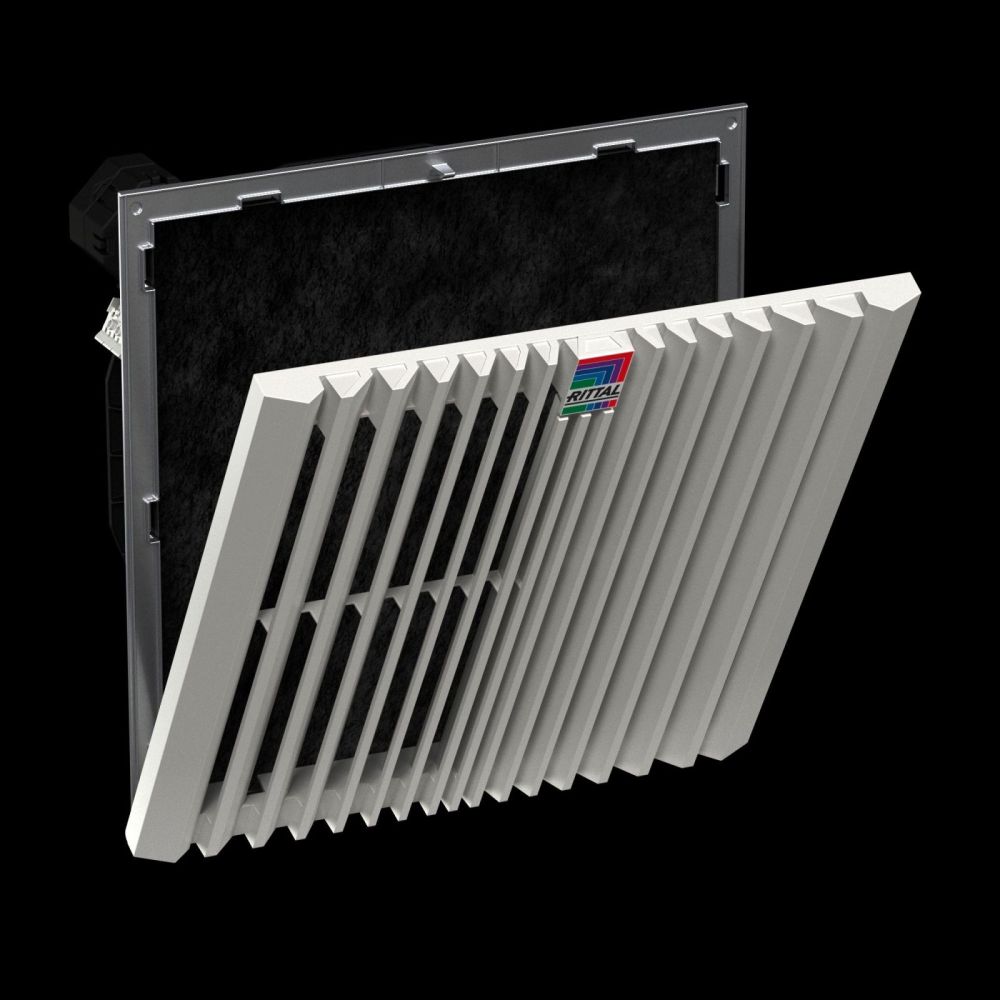

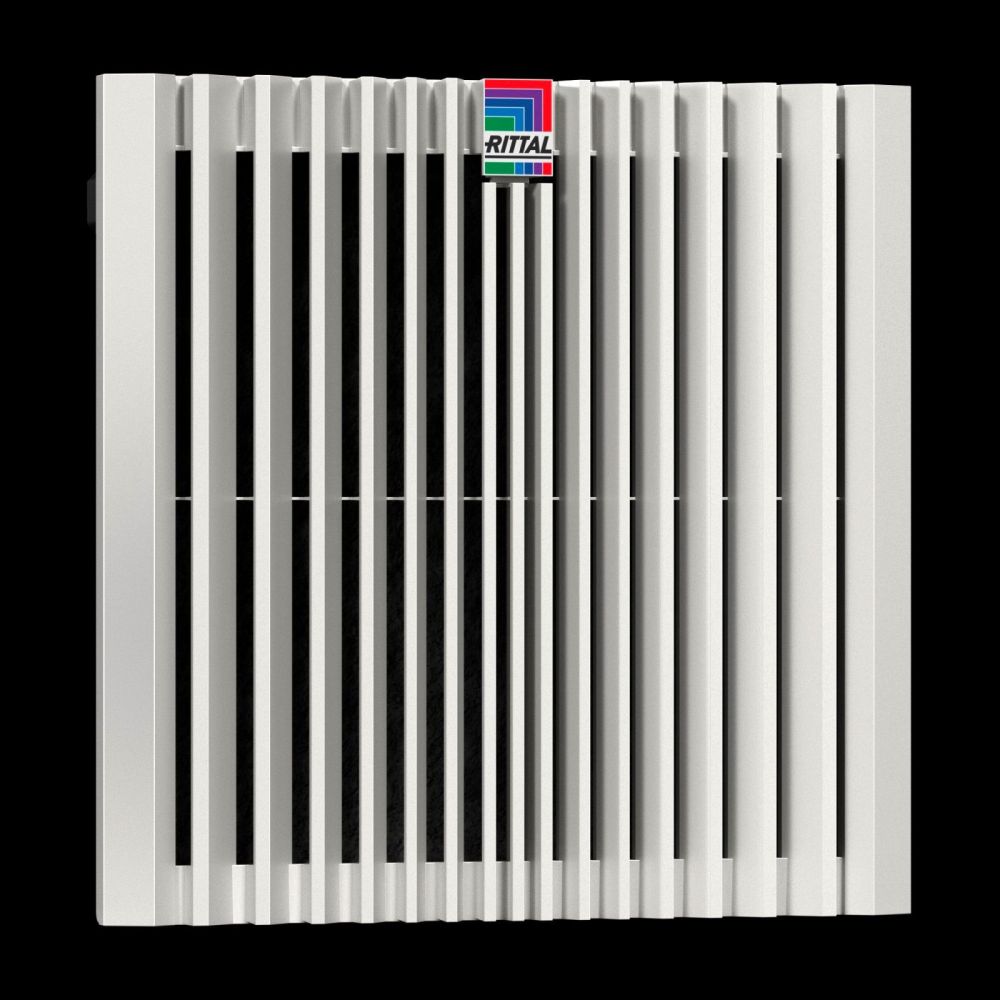

The EMC shielding ensures that electromagnetic interference generated by electrical devices within the enclosure is not radiated outward, while simultaneously keeping external interference away from the enclosure. The diagonal fan technology ensures even air distribution, which is particularly important in larger enclosures to avoid hotspots. Tool-free mounting is achieved via optimized snap hooks, enabling quick and secure attachment to the enclosure. Filter replacement is simplified by a new opening mechanism on the louver grille, making maintenance easier. The sound pressure level is 53 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, representing acceptable noise emissions for an industrial environment.
Compatibility and Accessories
The filter fan can be combined with various accessories to extend functionality. These include a Blue e+ outlet filter EMC in RAL 7035, which improves air purification, as well as a thermostat or digital temperature display and control, enabling automated temperature regulation. A speed controller can be used to adjust fan speed according to actual cooling requirements. For enhanced protection, a spray water hood made of stainless steel can be used, increasing the protection rating to IP 56 (according to IEC 60 529) or NEMA Type 3, 3R, 4, 4X. A hygrostat can be used for humidity control within the enclosure.
Mounting and Installation

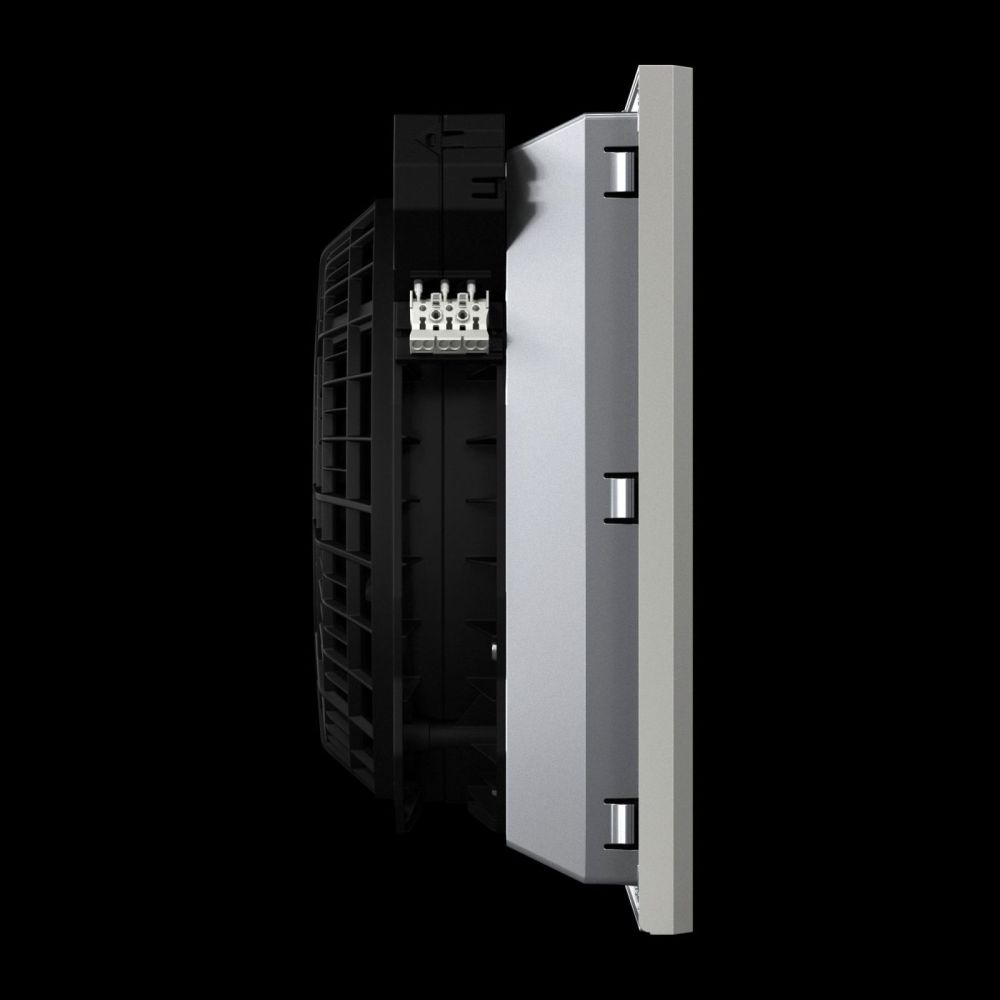

Mounting is tool-free to the enclosure wall. The mounting cutout measures 224 mm (width) x 224 mm (height), with an installation depth of 108 mm. The unit dimensions are 255 mm (width) x 255 mm (height) x 129 mm (depth). The unit is designed for easy installation, with optimized snap hooks enabling quick fixation. The pre-fuse is equipped with a fuse switch/fuse of 4 A to protect the fan from overloads.
Operational Advantages
Using the Rittal SK 3241.810 provides a reliable and maintenance-friendly ventilation solution for enclosures. The EMC shielding ensures a stable electrical environment, while the diagonal fan technology guarantees even air distribution. Tool-free mounting and easy filter replacement reduce maintenance time. The recommendation to use temperature regulators or displays serves energy efficiency and extends the service life of the fan unit. The protection rating IP 54 (with fleece filter) or IP 54 (with spray water hood) makes the fan suitable for various operating conditions, including humid or dusty environments.
Protection Rating and Standards
The protection rating IP 54 (according to IEC 60 529) is achieved when the fan is operated with a fleece filter. With an additional spray water hood, the protection rating increases to IP 54. The corresponding NEMA protection ratings are Type 12 (with fleece filter) and Type 3, 3R, 4, 4X (with fleece filter and spray water hood). The unit meets requirement level 2 according to EN 61587-3, guaranteeing high EMC shielding effectiveness. The operating temperature ranges and protection ratings make the fan suitable for indoor and outdoor use, provided the appropriate additional components are used.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Diagonal, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 225 m³/h, At 60 Hz: 245 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 173 m³/h, At 60 Hz: 187 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 43.4 kW, At 60 Hz: 52.2 kW |
| Rated current max. | At 50 Hz: 0.54 A, At 60 Hz: 0.6 A |
| Width | 255 mm |
| Height | 255 mm |
| Depth | 129 mm |
| Built-in depth | 108 mm |
| Mounting cutout | Cutout width: 224 mm, cutout height: 224 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield |
| Fuse | Circuit breaker/fuse: 4 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 53 dB(A), At 60 Hz: 54 dB(A) |
