Rittal 3239800 Blue e+ filter fan EMV 100/115 m³/h, 230 V, RAL 70
|
223,91 EUR |
|
|
( 266,45 EUR incl. VAT ) ≈ £187.41 | ≈ $246.08 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683819 |
| Mfg Part No: | 3239800 |
| UPC/EAN: | 4028177998162 |
| Weight: | 1.237 kg |
| Type: | SK 3239.800 |
Product information for Rittal 3239800:
Applications
The filter fan is designed for use in industrial environments where targeted ventilation of enclosures is required to ensure heat dissipation and dust filtration. It is particularly suitable for systems operating in areas with high electromagnetic compatibility (EMV) requirements, such as in automation technology, manufacturing industry, or energy technology. The integrated EMV shielding protects sensitive electronic components from disturbances caused by electromagnetic fields.
Functions and Equipment in Detail

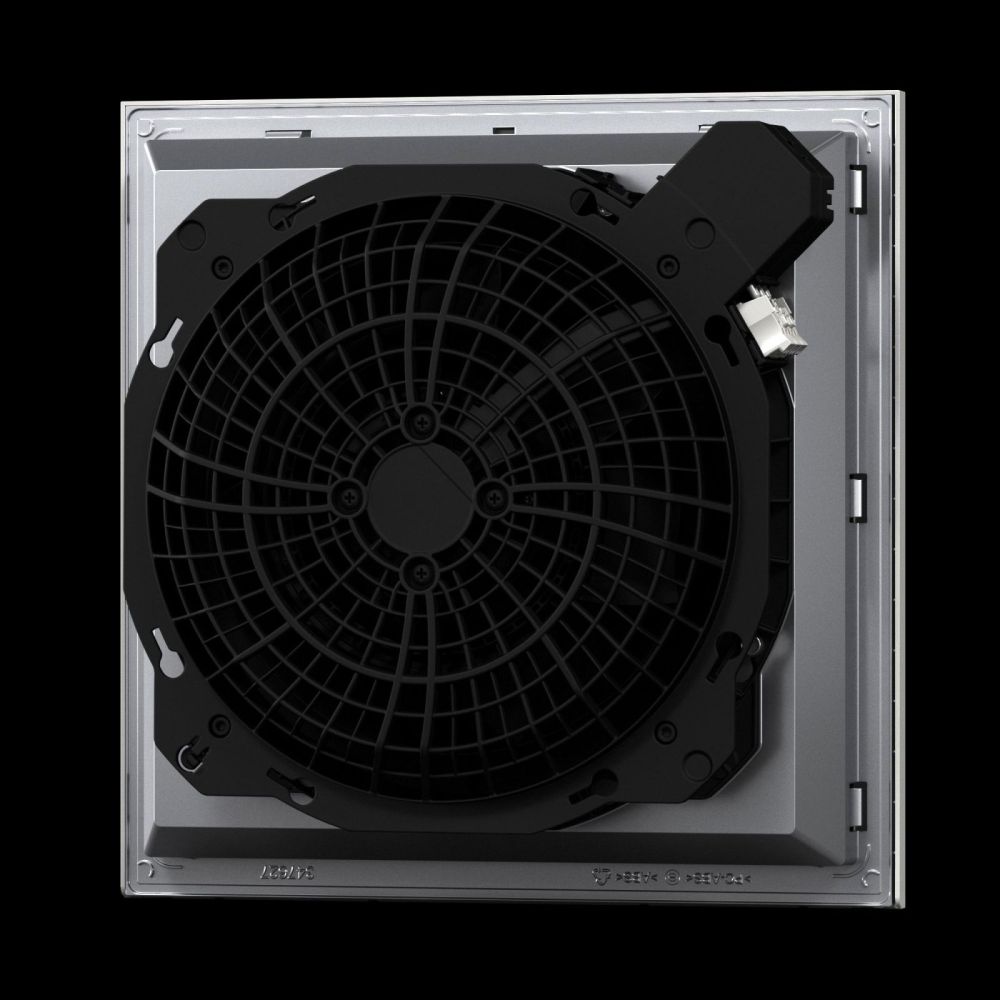

The fan features an axial fan with split-pole motor, ensuring reliable and quiet air movement. The air performance is 100 m³/h at 50 Hz and 115 m³/h at 60 Hz when free-blowing, while it reduces to 75 m³/h (50 Hz) and 86 m³/h (60 Hz) when used with a matching outlet filter including a felt filter. The sound pressure levels are 51 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, enabling acoustically pleasant operation in sensitive environments. The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz, making the unit usable in various power networks worldwide. The rated power is 14.7 W (50 Hz) and 16.5 W (60 Hz), with the rated current reaching a maximum of 0.1 A (50 Hz) or 0.12 A (60 Hz).
Technology Explained Simply

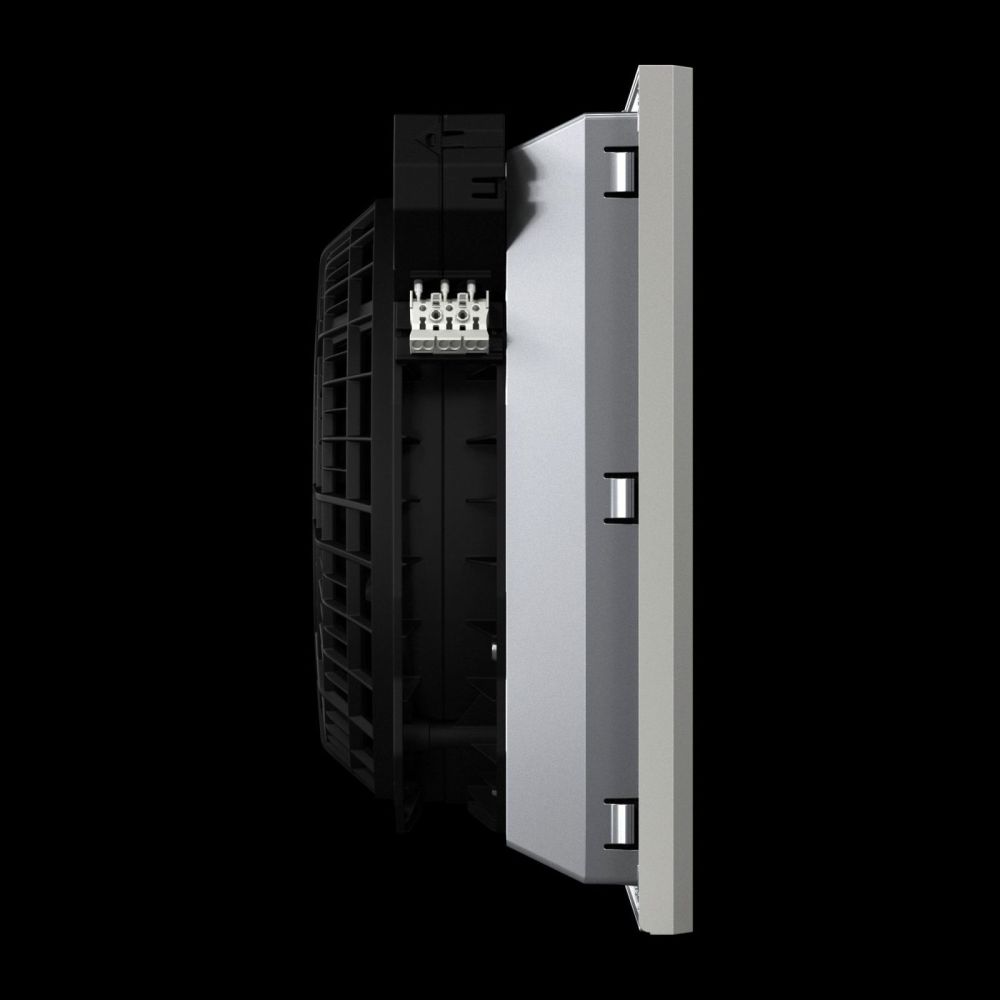

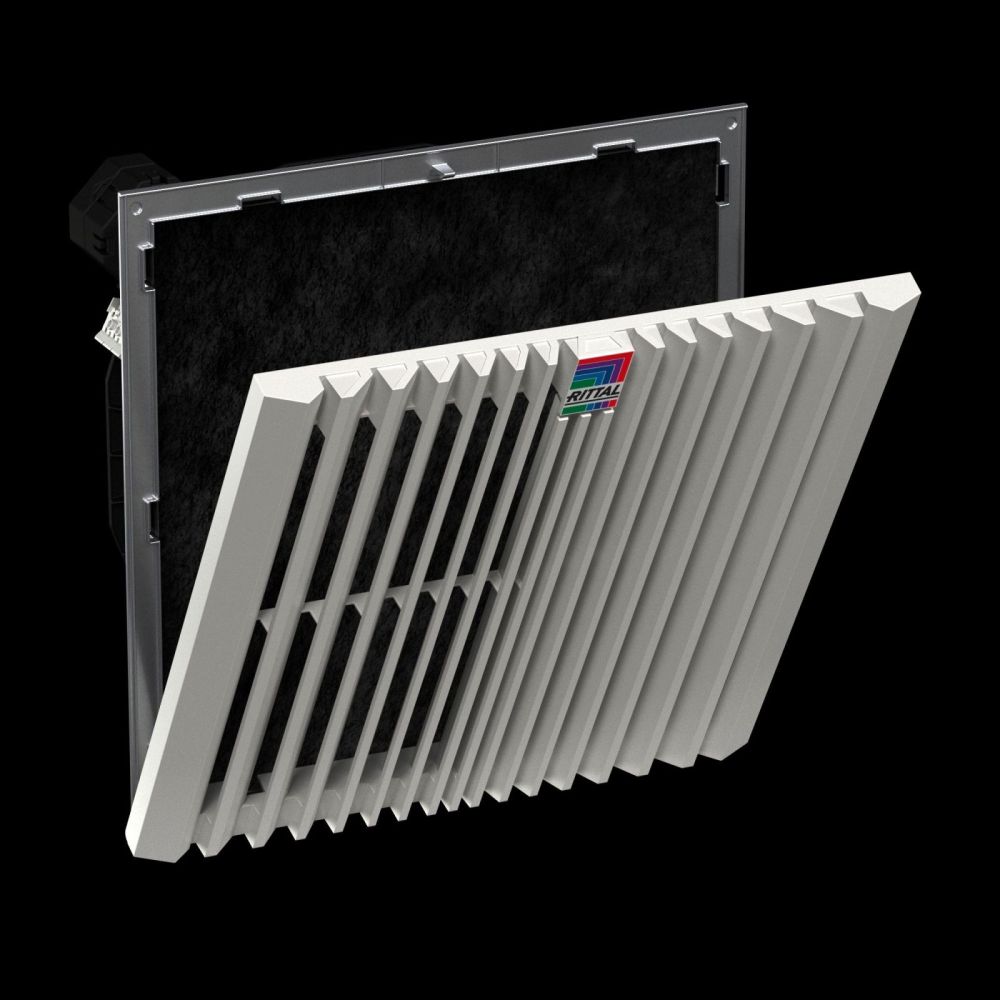

The diagonal fan technology ensures higher pressure stability, resulting in more uniform and consistent air distribution within the enclosure. This improves cooling performance and reduces the risk of local overheating. The opening mechanism on the louver grille allows for easy filter replacement, simplifying maintenance. The optimized latching hooks enable faster installation on the enclosure, and the unit can be mounted without tools. The installation depth is 84 mm, and the required mounting cutout has a cutout width and height of 177 mm each.
Compatibility and Accessories
The fan is equipped with a felt filter that retains dust and particles. The protection class IP 54 is achieved when the felt filter is installed; with a spray water hood, the protection class increases to IP 56. Correspondingly, the NEMA protection classes Type 12 (with felt filter) and Type 3, 3R, 4, 4X (with felt filter and spray water hood) are attainable. Suitable accessories include Blue e+ outlet filters EMV, stainless steel spray water hoods, thermostats, speed controllers, digital temperature displays, and hygrostats, which can be used for precise temperature and humidity control within the enclosure.
Mounting and Installation
Mounting is tool-free on the enclosure wall. The dimensions of the unit are 204 mm (width) × 204 mm (height) × 105 mm (depth). The installation depth of 84 mm must be considered within the enclosure. A mounting cutout of 177 mm × 177 mm must be provided in the enclosure. The unit is designed for an operating temperature range of -15 °C to 55 °C, with a storage temperature up to 70 °C. A fuse of 2 A is required to ensure electrical safety.
Advantages in Operation
The combination of EMV shielding, high air performance, and tool-free installation makes the SK 3239.800 a reliable solution for enclosure climate control. The recommended use of temperature controllers or displays can increase energy efficiency and extend the service life of the fan unit, as the fan is activated only when needed. The integrated EMV filter mat provides high damping effect, supporting the functionality of sensitive electronic devices within the enclosure. The protection class IP 56 (with spray water hood) enables use in humid or dusty environments, which are common in industrial applications.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 100 m³/h, At 60 Hz: 115 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 75 m³/h, At 60 Hz: 86 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 14.7 W, At 60 Hz: 16.5 W |
| Rated current max. | At 50 Hz: 0.1 A, At 60 Hz: 0.12 A |
| Width | 204 mm |
| Height | 204 mm |
| Depth | 105 mm |
| Built-in depth | 84 mm |
| Mounting cutout | Cutout width: 177 mm, cutout height: 177 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 51 dB(A), At 60 Hz: 54 dB(A) |
