Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035

Your rating:
Average rating
product review for Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035
( 4.3 / 5 ) 4 ratings
Rittal 3239400
This image may differ from the desired article.
Rittal 3239400Rittal 3239400Rittal 3239400Rittal 3239400Rittal 3239400Rittal 3239400Rittal 3239400
97,98 EUR
( 116,60 EUR incl. VAT )
≈ £82.01  |  ≈ $107.68
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683807
Mfg Part No: 3239400
UPC/EAN: 4028177998377
Weight:0.473 kg
Type:SK 3239.400

Product information for Rittal 3239400:

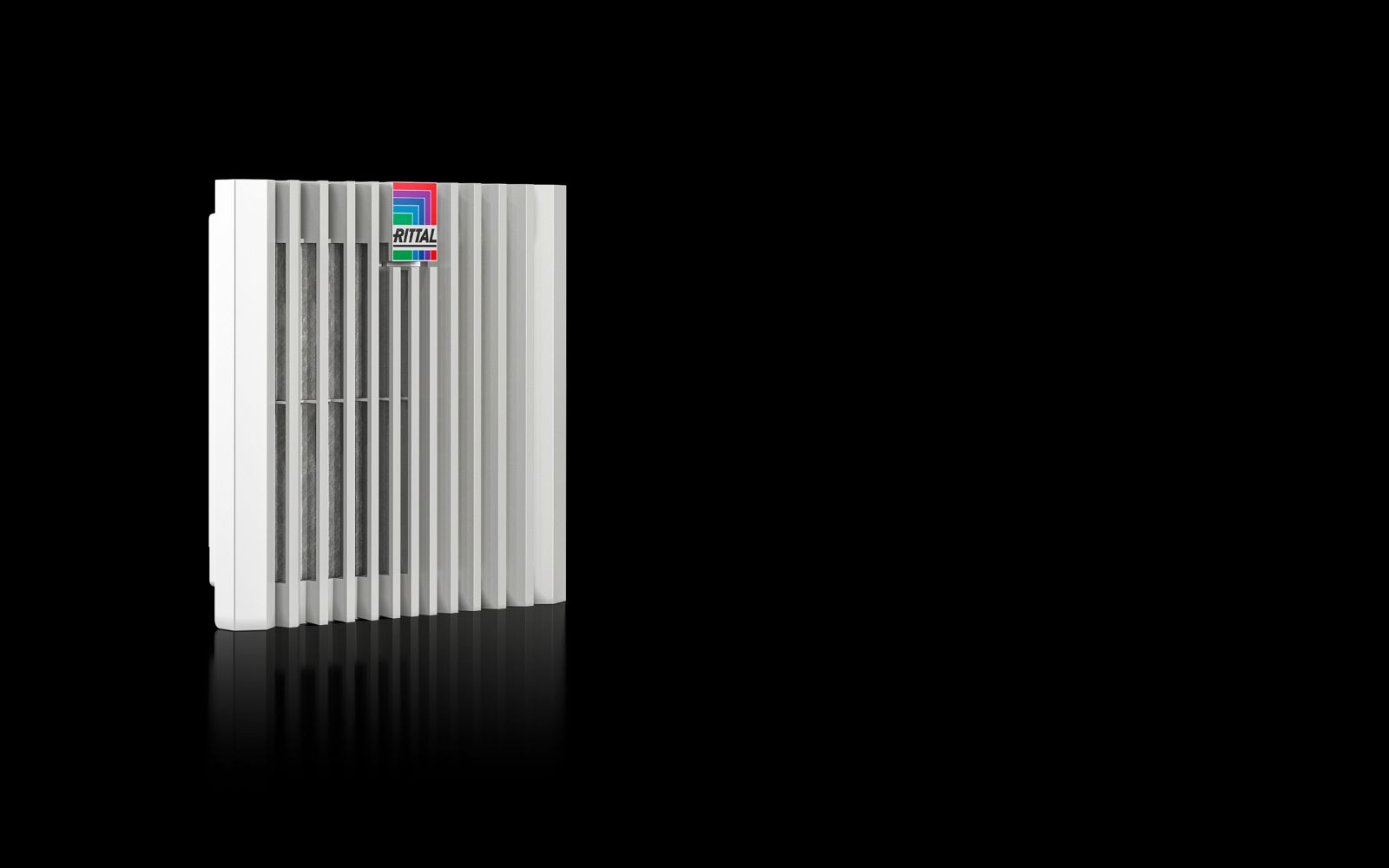

The Rittal SK 3239.400 is an outlet filter for enclosure climate control, specifically designed for use with filter fans of the SK 3239.8xx series. The device serves to remove waste heat from enclosures, ventilate the interior space, and protect temperature-sensitive components. Cooling is achieved by direct intake of ambient air, the temperature of which must be below the permissible enclosure internal temperature. The unit is designed for wall mounting with integrated EMC protection function, thereby reducing electromagnetic interference during operation. The filter colour is RAL 7035, a grey-beige standard tone that integrates well in industrial environments.

Applications

The outlet filter is intended for use in industrial enclosures, particularly in environments where controlled air intake and heat dissipation are required. It is used in combination with filter fans to regulate the internal temperature of enclosures and extend the service life of electronic components. Applications include automation technology, manufacturing industry, or energy supply, where reliable climate control is essential.

Functions and Equipment in Detail

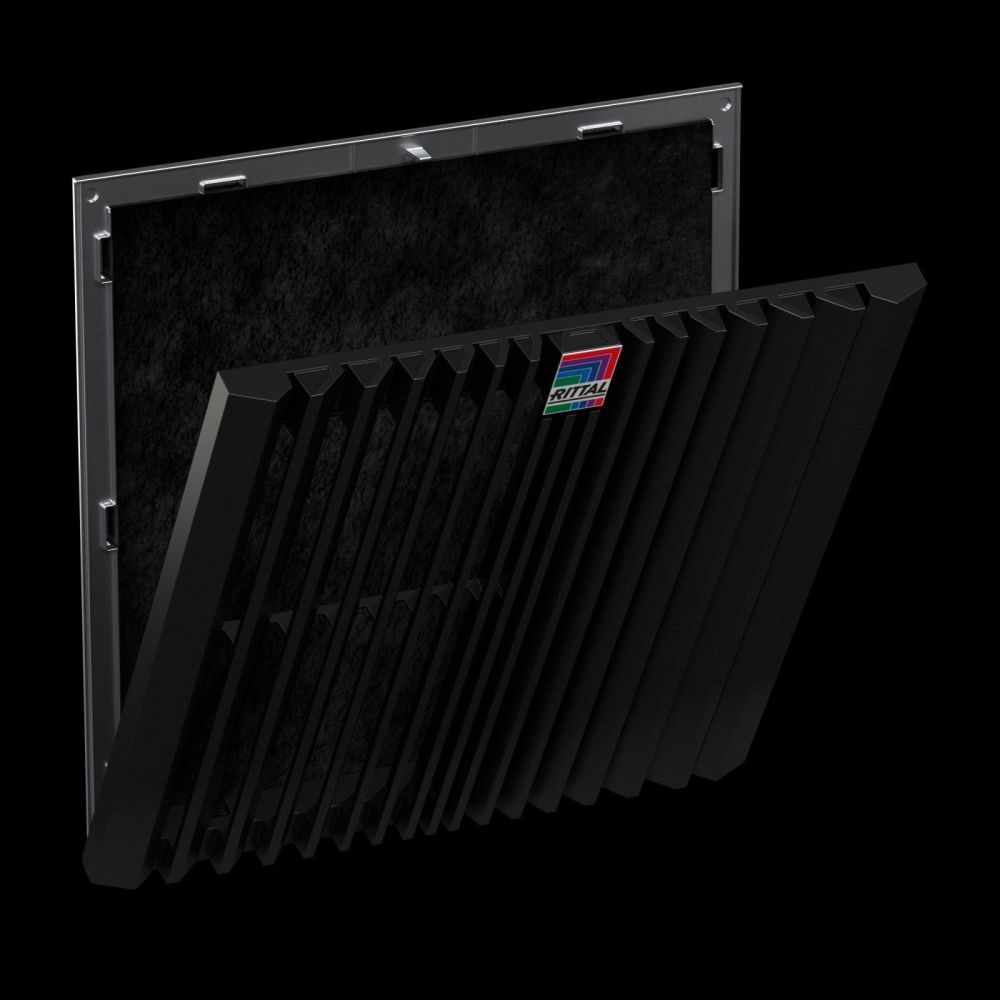

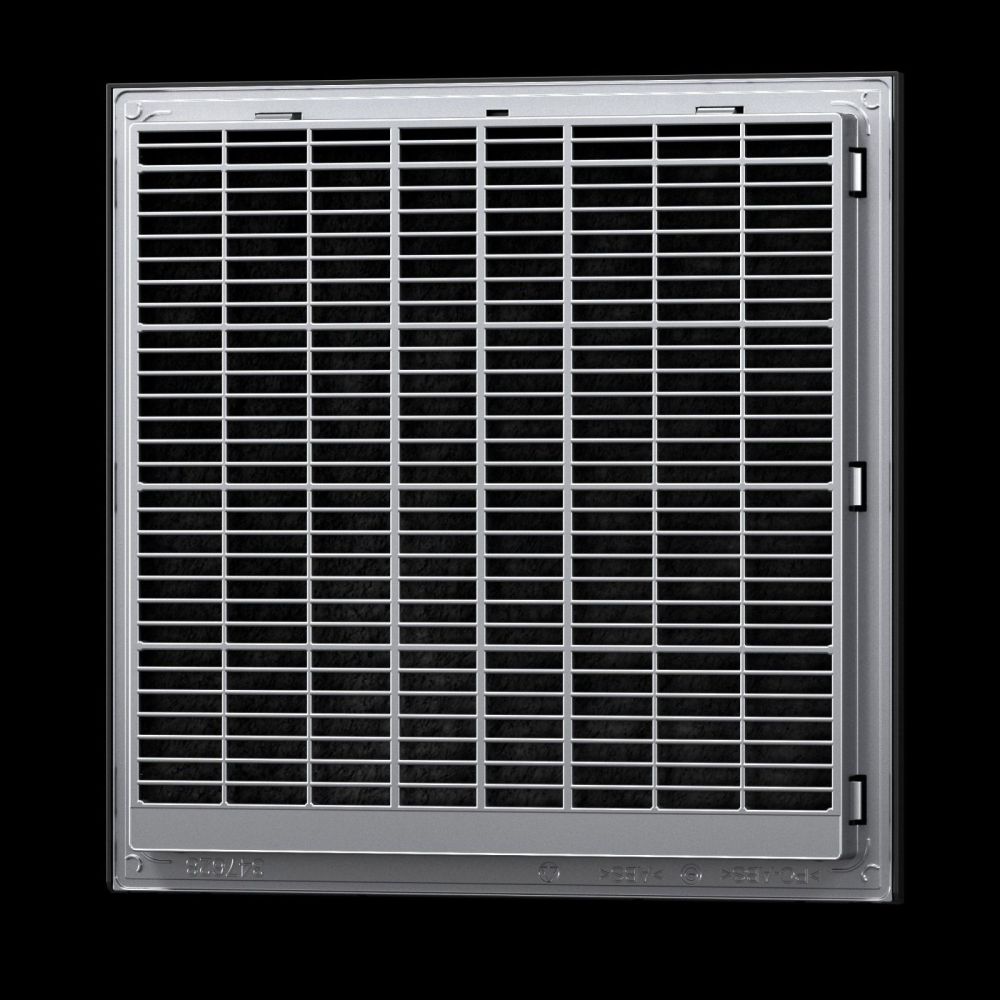

The filter features a new opening mechanism on the louver grille, simplifying and accelerating filter replacement. Mounting to the enclosure is achieved via optimised snap hooks, enabling faster and more precise installation. Installation is tool-free, reducing mounting time and simplifying maintenance. The delivery includes the outlet filter and an EMC filter mat, which contributes to shielding against electromagnetic interference.

Technology Explained Simply

The filter dimensions are 204 mm width and 204 mm height, with a depth of 45.8 mm. The mounting cutout in the enclosure requires a clearance of 177 mm width and 177 mm height. The protection rating according to IEC 60 529 is IP 54 when using the non-woven filter and IP 56 when additionally fitted with a spray water hood. The NEMA protection rating includes Type 12 with non-woven filter, as well as Type 3, 3R, 4, and 4X, also with non-woven filter and spray water hood. These protection ratings ensure protection against dust and splashing water, making the filter suitable for use in humid or dusty environments.

Compatibility and Accessories

The outlet filter is specifically designed for filter fans with article number SK 3239.8xx. As an accessory, a spray water hood for SK 3239.xxx stainless steel is available, which increases the protection rating to IP 56 and NEMA Type 4/4X. Additionally, an SK EMC filter mat for SK 3239.6xx is available, which also contributes to EMC shielding. Combining these accessories expands application possibilities and enhances protection functions.

Mounting and Installation

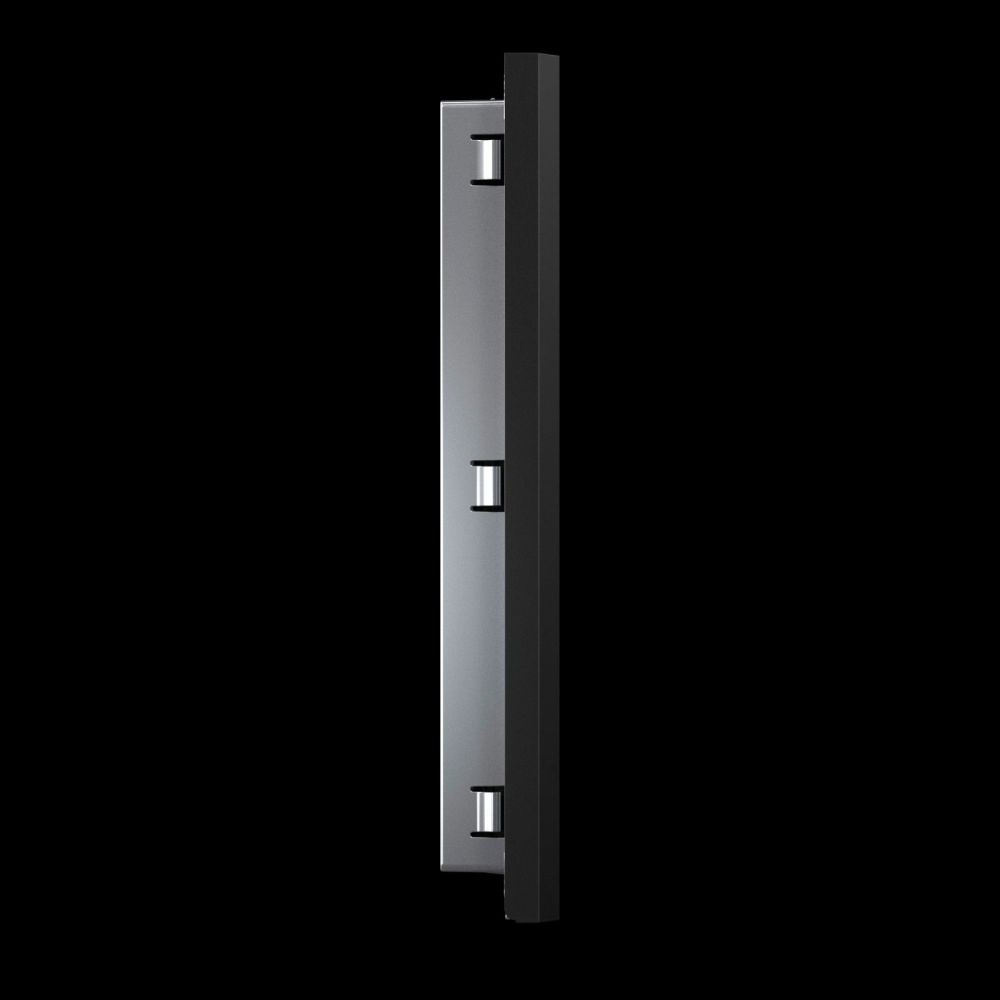

Mounting is tool-free to the enclosure wall. The optimised snap hooks allow for quick and secure fastening. The mounting cutout in the enclosure must have dimensions of 177 mm width and 177 mm height. Positioning is typically at the rear of the enclosure, where air exhaust occurs. The EMC filter mat is included in the delivery and must be installed according to the instructions to ensure electromagnetic shielding.

Operational Advantages

The filter provides reliable heat dissipation and ventilation, increasing the operational safety of enclosure contents. Tool-free mounting and easy filter replacement reduce maintenance time. The integrated EMC protection function minimises interference in the electrical system. Protection ratings IP 56 and IP 56, along with NEMA classification, ensure safe operation in various environmental conditions, including humid or dusty rooms.

General
ModelWall mounting, EMC
ColourRAL 7035
Scope of deliveryExhaust filter, EMI filter mat
Mounting cutoutCutout width: 177 mm, cutout height: 177 mm
Suitable for part no.SK 3239.8xx
Width204 mm
Height204 mm
Depth45,8 mm
NEMA degree of protectionType 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3239400, EAN: 4028177998377

Questions & answers

What is the delivery time of Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035?

The article Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3239400 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3239400 Blue e+ outlet filter EMV, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
