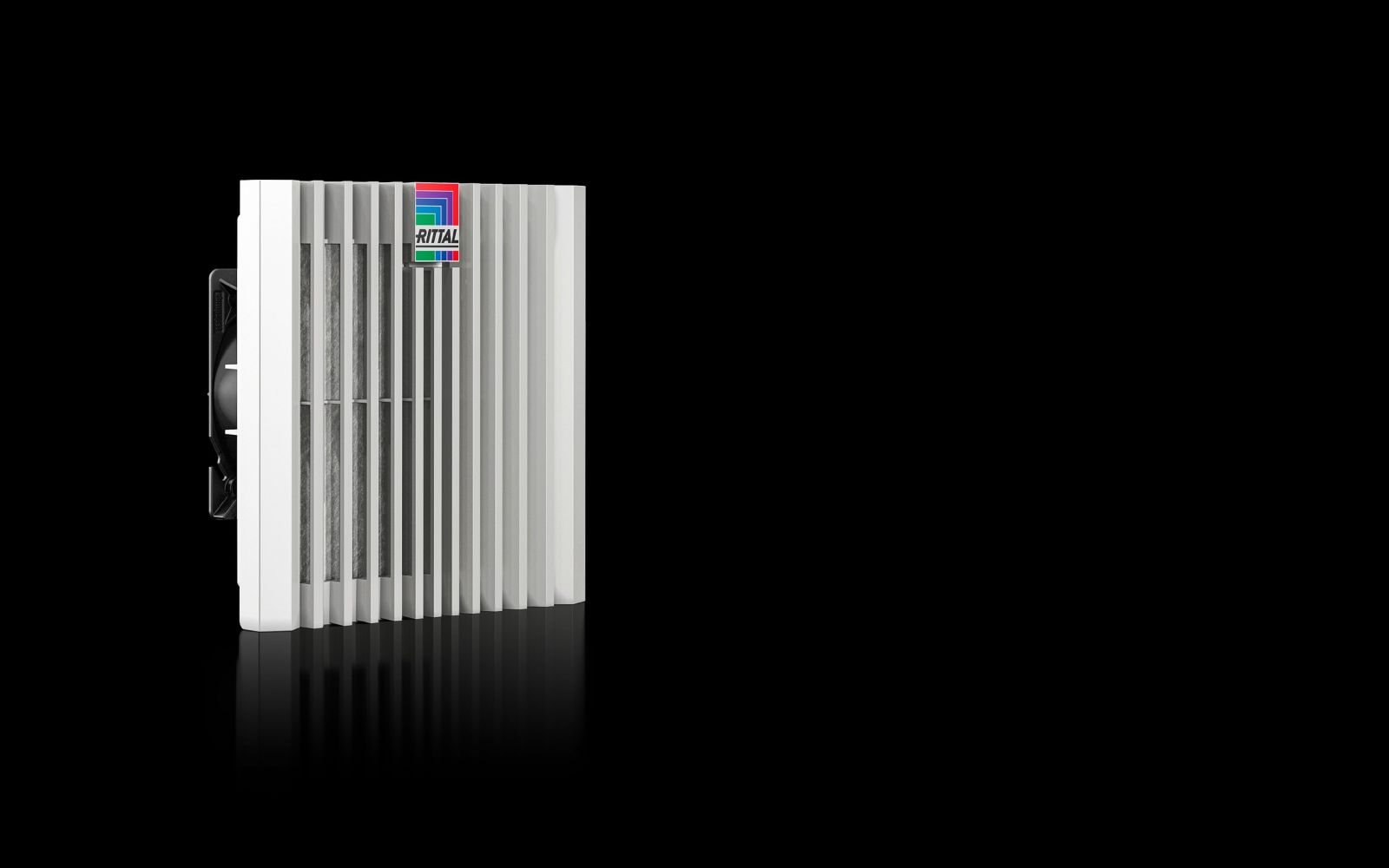

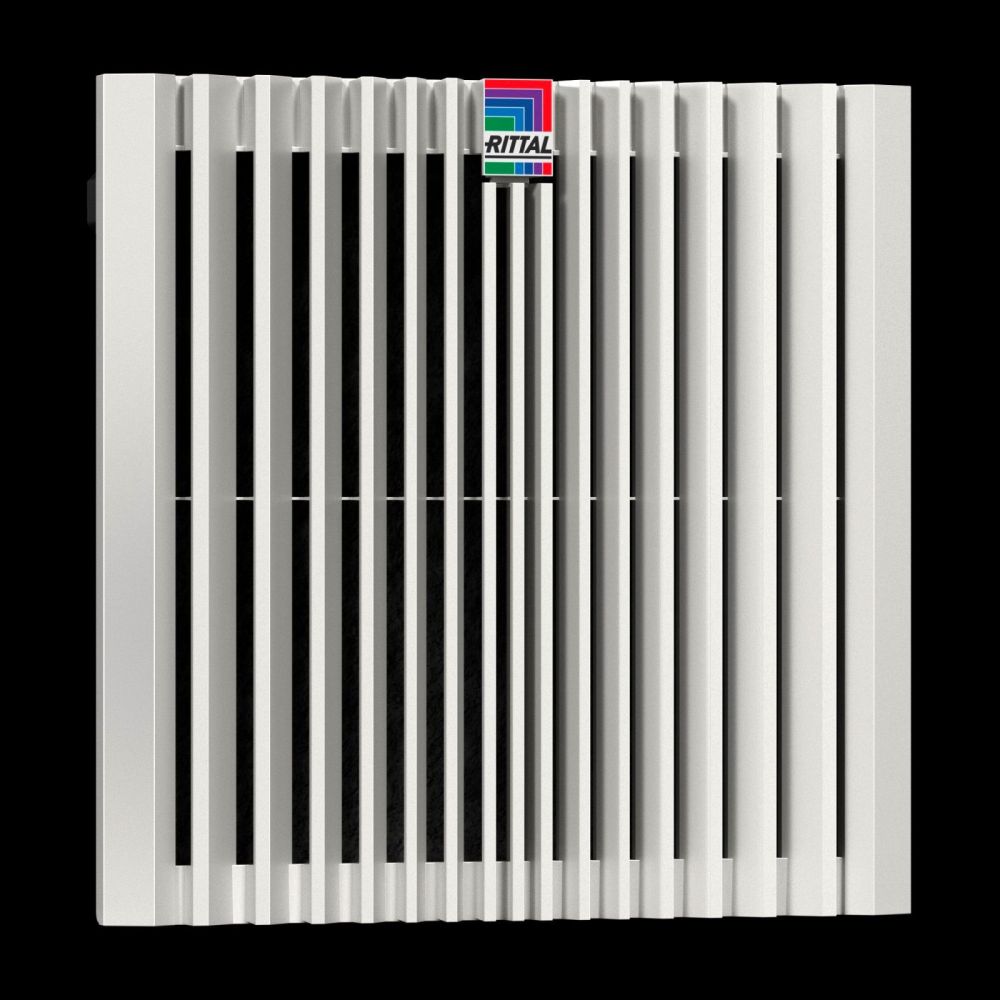

Rittal 3239824 Blue e+ filter fan EMV 100 m³/h, 24 V DC, RAL 7035
|
-10% 240,70 EUR 268,50 EUR |
|
|
( 286,43 EUR incl. VAT ) ≈ £201.47 | ≈ $264.53 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683823 |
| Mfg Part No: | 3239824 |
| UPC/EAN: | 4028177985537 |
| Weight: | 1.24 kg |
| Type: | SK 3239.824 |
Product information for Rittal 3239824:
Applications
The fan is designed for use in industrial environments where reliable and interference-free ventilation is required. It is particularly suitable for enclosures in production plants, automation systems, or process industries, where EMV protection and constant air circulation are important. The protection rating IP 54 with a non-woven filter and IP 56 with an additional spray water hood allow use in environments with dust and splashing water, for example in the food industry or outdoors. The corresponding NEMA protection ratings (Type 12, 3, 3R, 4, 4X) highlight its suitability for various industrial requirements.
Functions and Equipment in Detail

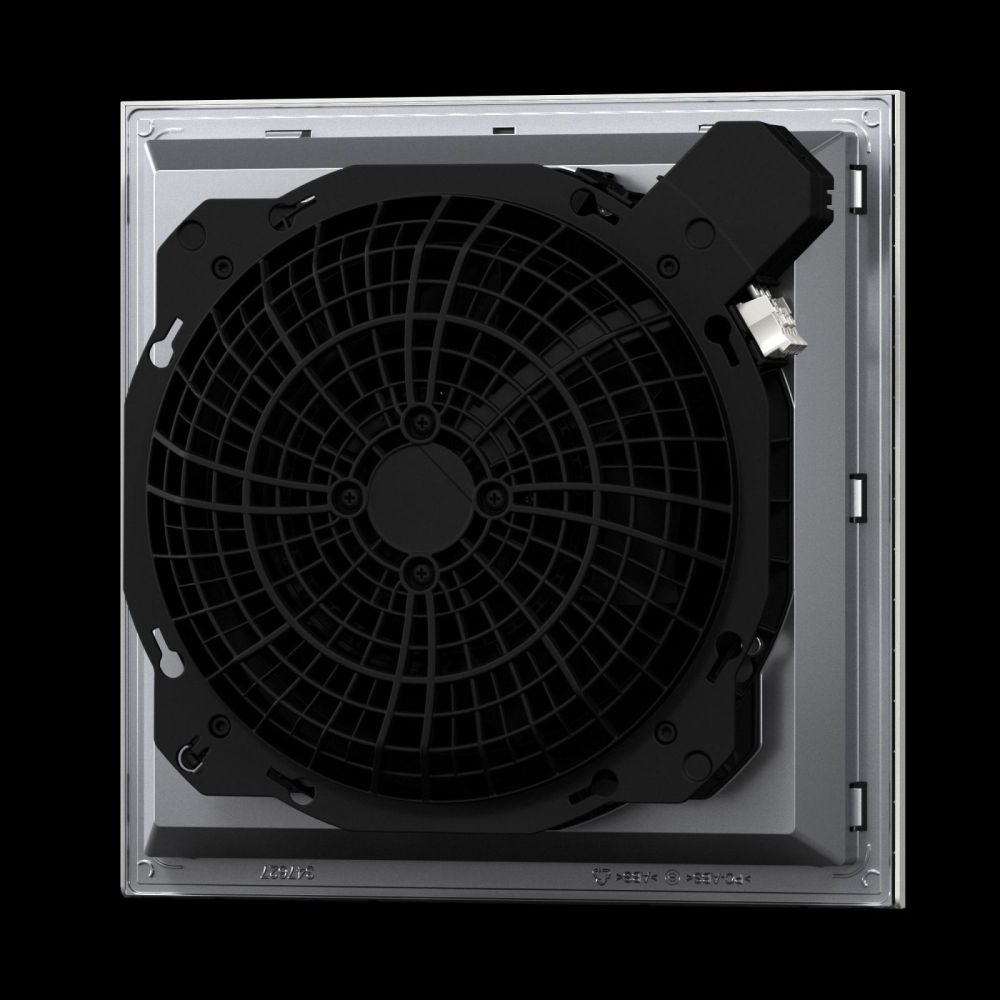

The fan features an axial fan with a DC motor, achieving an air flow rate of 100 m³/h free blowing (with non-woven filter). When an additional outlet filter is used, the air flow rate reduces to 75 m³/h, due to the increased air resistance of the filter. The rated operating voltage is 24 V (DC), with a maximum rated current of 0.27 A. The rated power is 5.7 kW. The unit is designed for an operating temperature range of -15 °C to 55 °C, with a storage temperature up to 70 °C. The sound pressure level is 51 dB(A), enabling acoustically pleasant operation.
Technology Explained Simply

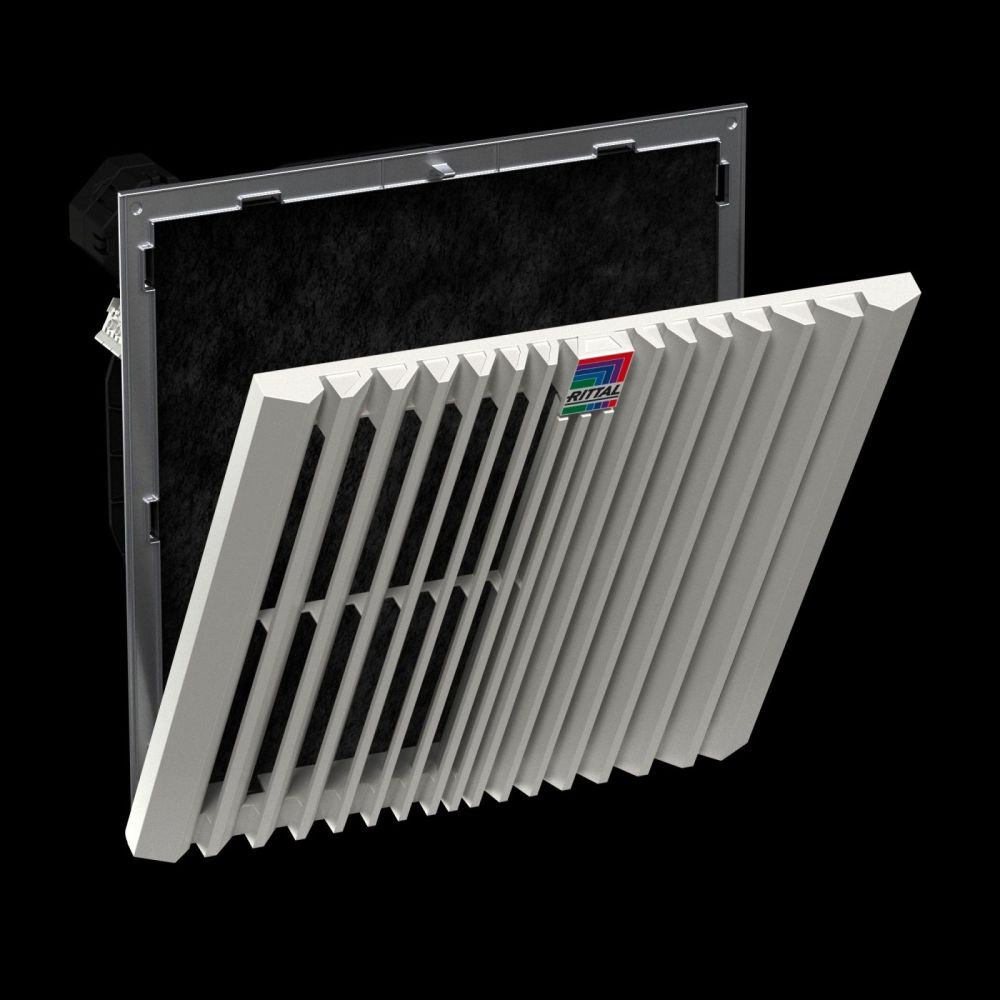

The diagonal fan technology ensures higher pressure stability and enables more uniform and consistent ventilation of the enclosure. This reduces temperature fluctuations within the enclosure and protects sensitive components. The opening mechanism on the louver grille facilitates filter replacement, making maintenance more efficient. The EMV filter mat shields against electromagnetic interference generated by electronic devices inside the enclosure, thus protecting sensitive electronics from interference.
Compatibility and Accessories
Various accessories are available to extend functionality and protection rating. These include a Blue e+ outlet filter EMV in RAL 7035, a spray water hood made of stainless steel for higher protection requirements, as well as thermostats and digital temperature displays for precise temperature control. A hygrostat enables humidity control within the enclosure. Combining the unit with an outlet filter and spray water hood increases the protection rating to IP 54 or NEMA Type 3, 3R, 4, 4X.
Mounting and Installation

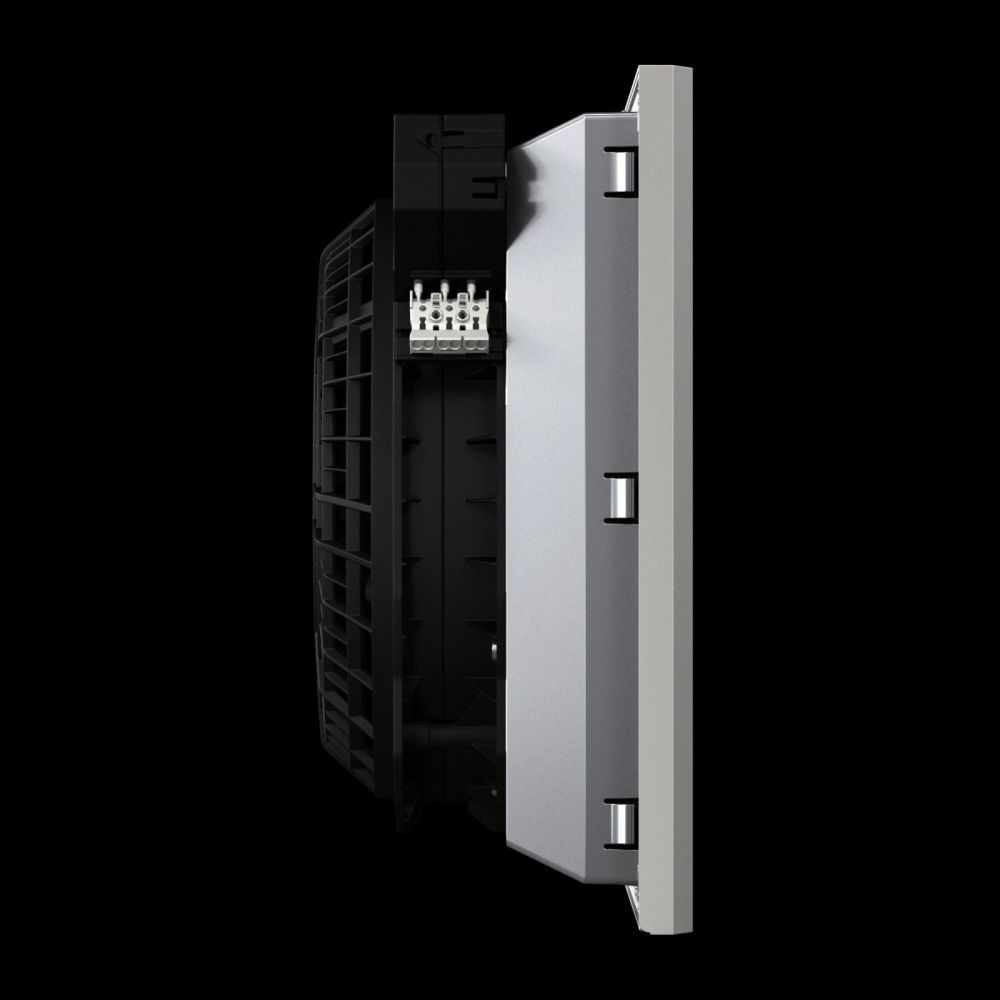

The unit is mounted tool-free, with optimised latching hooks enabling quick and secure attachment to the enclosure. Dimensions are 204 mm (width) × 204 mm (height) × 105 mm (depth), with an installation depth of 84 mm. The required mounting cutout in the enclosure has a cutout width and height of 177 mm each. The pre-fuse is equipped with a fuse switch/fuse of 2 A to protect the fan from overloads.
Operational Advantages
The use of temperature controllers or displays is recommended to improve energy efficiency and extend device lifespan. Tool-free mounting and easy filter replacement reduce maintenance time. The combination of EMV protection, high air flow rate, and robust design makes the fan a reliable solution for climate control of enclosures in demanding industrial environments.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Axial, DC motor |
| Airflow free-blowing (with filter) | At DC: 100 m³/h |
| Airflow with associated exhaust filter including felt filter | For DC: 75 m³/h |
| Rated operating voltage | 24 V (DC) |
| Rated power Pel | At DC: 5.7 kW |
| Rated current max. | At DC: 0.27 A |
| Width | 204 mm |
| Height | 204 mm |
| Depth | 105 mm |
| Built-in depth | 84 mm |
| Mounting cutout | Cutout width: 177 mm, cutout height: 177 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At DC: 51 dB(A) |
Questions & answers
What is the delivery time of Rittal 3239824 Blue e+ filter fan EMV 100 m³/h, 24 V DC, RAL 7035?
The article Rittal 3239824 Blue e+ filter fan EMV 100 m³/h, 24 V DC, RAL 7035 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3239824 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3239824 Blue e+ filter fan EMV 100 m³/h, 24 V DC, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3239824 Blue e+ filter fan EMV 100 m³/h, 24 V DC, RAL 7035 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
