Rittal 3239066 SK EMV filter mat for SK 3239.6xx

Your rating:
Average rating
product review for Rittal 3239066 SK EMV filter mat for SK 3239.6xx
( 4.4 / 5 ) 20 ratings
Rittal 3239066
This image may differ from the desired article.
Rittal 3239066Rittal 3239066
38,30 EUR
( 45,58 EUR incl. VAT )
≈ £32.06  |  ≈ $42.09
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3239066 SK EMV filter mat for SK 3239.6xx
Datasheet:file_download Download
Lieske Part No.:1013781
Mfg Part No: 3239066
UPC/EAN: 4028177666238
Weight:0.054 kg
Type:SK 3239066

Product information for Rittal 3239066:

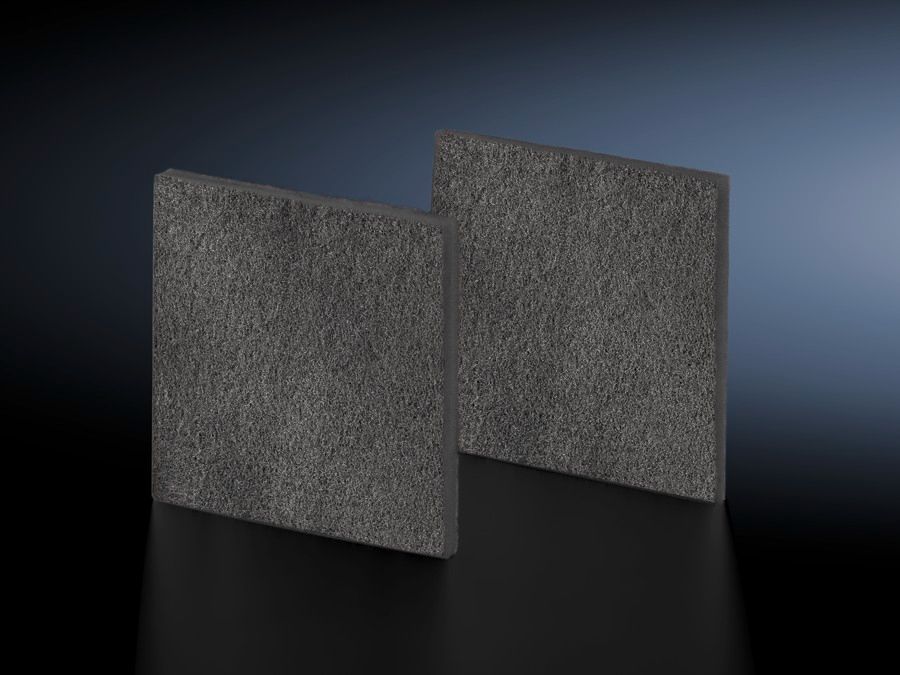

Rittal SK 3239066 is a replacement filter mat for EMC filter fans, specifically developed for use in enclosure climate control systems. The product provides effective protection of internal enclosure components against dirt, dust, and water, and is used in conjunction with corresponding Rittal filter fans (item no. 3239.6..). The filter mat is made of a nonwoven fabric with a progressive structure, ensuring reliable filtration of particles from a grain size of 10 µm. The copper-nickel-chromium coating provides high corrosion resistance and enhances the mat’s lifespan under industrial conditions.

Applications
The filter mat is designed for use in industrial environments where enclosures must be protected from contamination. It is used in combination with EMC filter fans installed in enclosures for climate control and ventilation. The application is particularly relevant in areas requiring continuous air circulation to regulate the temperature of electronic components while minimizing contamination from dust and particles. The filter mat is suitable for roof fans, filter fans, or thermoelectric coolers, with the performance data, protection rating, and approvals of the devices guaranteed only when used with original Rittal filter mats.

Functions and Features in Detail
The SK 3239066 consists of a chemical fiber coated with a copper-nickel-chromium layer. This coating increases resistance to corrosive influences and extends the lifespan of the filter mat. The structure of the nonwoven fabric is progressively built: the dirty air side has an open structure, enabling high air permeability, while the clean air side has a closed structure to ensure efficient filtration. The filter class according to DIN EN 779 is G3, indicating medium filtration performance for separating fine particles from 10 µm onwards. The mat is heat resistant up to 100 °C and self-extinguishing in class F1 according to DIN 53 438, ensuring high safety at elevated temperatures and in case of fire.

Technology Explained Simply
The filter mat operates on the principle of mechanical filtration. Air flows through the nonwoven fabric, and particles from 10 µm in size are retained on the fibers. The progressively structured design ensures that larger particles are captured in the outer layers, while finer particles are filtered in the inner layers. This extends the mat’s lifespan and prevents rapid clogging. The copper-nickel-chromium coating protects the fibers from oxidation and corrosion, which is particularly beneficial in humid or aggressive environments. The self-extinguishing property according to DIN 53 438 class F1 reduces fire risk, as the mat does not continue to burn when in contact with flame.

Compatibility and Accessories
The filter mat is specifically developed for EMC filter fans with item number 3239.6.. Use with other fan types or brands is not recommended, as the performance data, protection rating, and approvals of the devices are guaranteed only when used with original Rittal filter mats. The dimensions of the mat are 178 mm (width) × 178 mm (height) × 17 mm (depth), ensuring an exact fit for the intended fans. The packaging unit contains 5 pieces, enabling economical procurement for regular replacement.

Installation and Mounting
The installation of the filter mat is done by simply inserting it into the designated filter frame of the EMC filter fan. The open structure of the dirty air side must face outward, while the closed structure of the clean air side must face inward into the enclosure. Mounting requires no special tools or additional components. The filter mat is designed for easy replacement to ensure continuous air purification. Replacement should be carried out regularly, depending on environmental conditions and contamination level, to maintain climate control efficiency.

Operational Advantages
The use of Rittal SK 3239066 provides reliable protection for internal enclosure components. The filter mat prevents dust and particle accumulation, which could lead to overheating or malfunction of electronic components. The high heat resistance up to 100 °C and self-extinguishing property increase operational safety. The long lifespan, due to the corrosion-resistant coating and progressive structure, reduces maintenance effort and replacement costs. The filter class G3 according to DIN EN 779 ensures sufficient filtration for most industrial applications, with the filter mat in combination with original Rittal fans fulfilling full performance data and approvals.

General
Modelfor EMI filter fans
MaterialCopper-nickel-chromium coated chemical fiber
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3239.6..
Width178 mm
Height178 mm
Depth17 mm
Filter classaccording to DIN EN 779: G3


Product data sheet
Datasheet for Rittal 3239066, EAN: 4028177666238

Questions & answers

What is the delivery time of Rittal 3239066 SK EMV filter mat for SK 3239.6xx?

The article Rittal 3239066 SK EMV filter mat for SK 3239.6xx is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3239066 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3239066 SK EMV filter mat for SK 3239.6xx always at the best possible price. We can give you a discount of 2% on Rittal 3239066 SK EMV filter mat for SK 3239.6xx if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
