Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035

Your rating:
Average rating
product review for Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035
( 4.3 / 5 ) 3 ratings
Rittal 3237400
This image may differ from the desired article.
Rittal 3237400Rittal 3237400Rittal 3237400Rittal 3237400Rittal 3237400Rittal 3237400Rittal 3237400
52,56 EUR
( 62,55 EUR incl. VAT )
≈ £43.99  |  ≈ $57.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683776
Mfg Part No: 3237400
UPC/EAN: 4028177998414
Weight:0.154 kg
Type:SK 3237.400

Product information for Rittal 3237400:

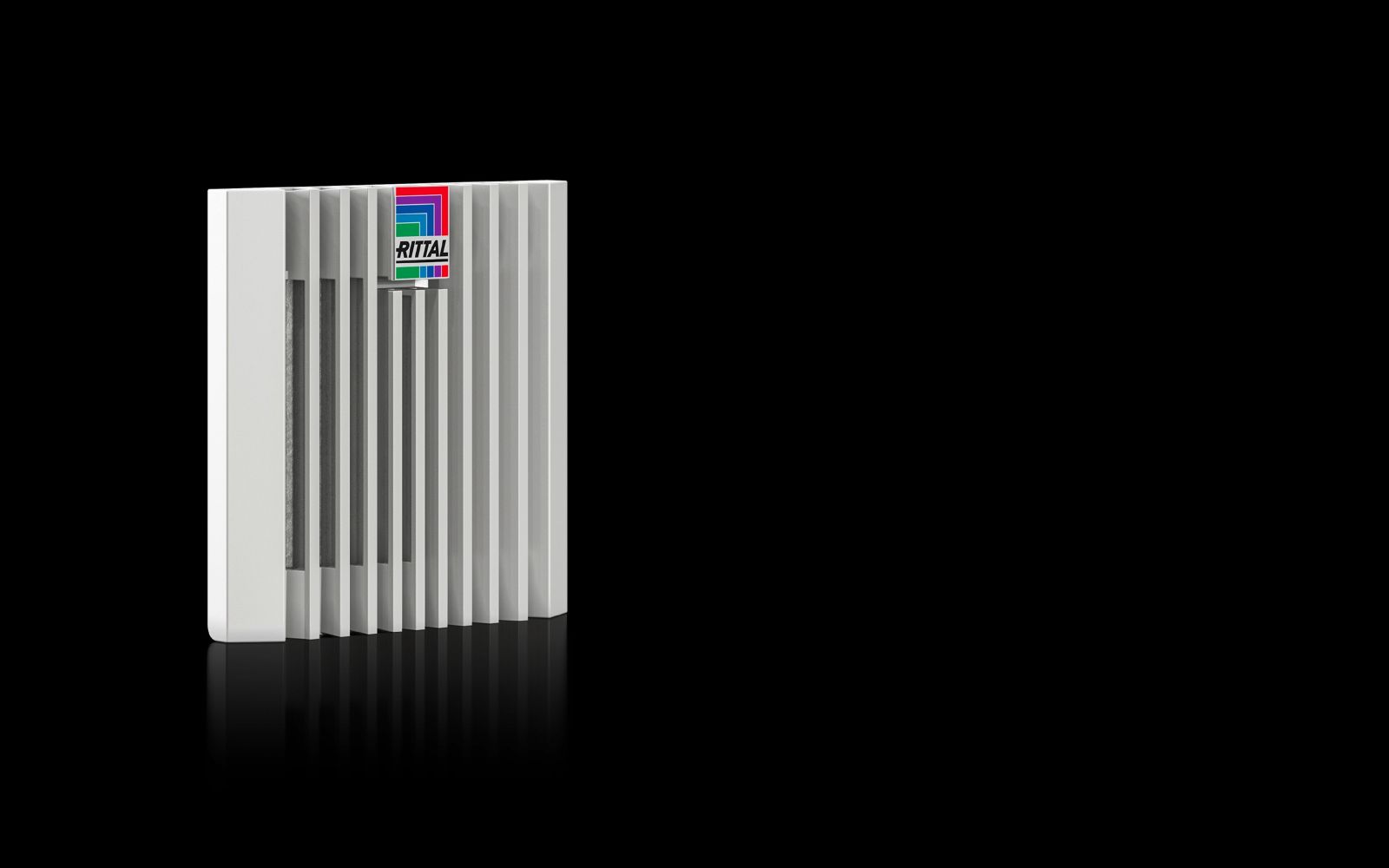

The Rittal SK 3237.400 is an outlet filter for enclosure climate control, specifically designed for use with filter fans of the SK 3237.8xx series. The device serves to dissipate waste heat from enclosures, ventilate the interior space, and protect temperature-sensitive components by supplying ambient air, the temperature of which must be below the permissible enclosure internal temperature. The design is as wall-mounted installation with integrated EMC protection function, thereby reducing electromagnetic interference. The color is RAL 7035, a gray-beige standard shade that integrates well in industrial environments.

Applications

The outlet filter is used in industrial plants where controlled ventilation and cooling of enclosures are required. It is particularly suitable for applications requiring a high degree of protection against dust and splashing water, such as in production halls, machine building, or automation technology. The combination with a filter fan enables efficient heat dissipation without direct air intake from the environment, thus maintaining interior cleanliness.

Functions and Equipment in Detail

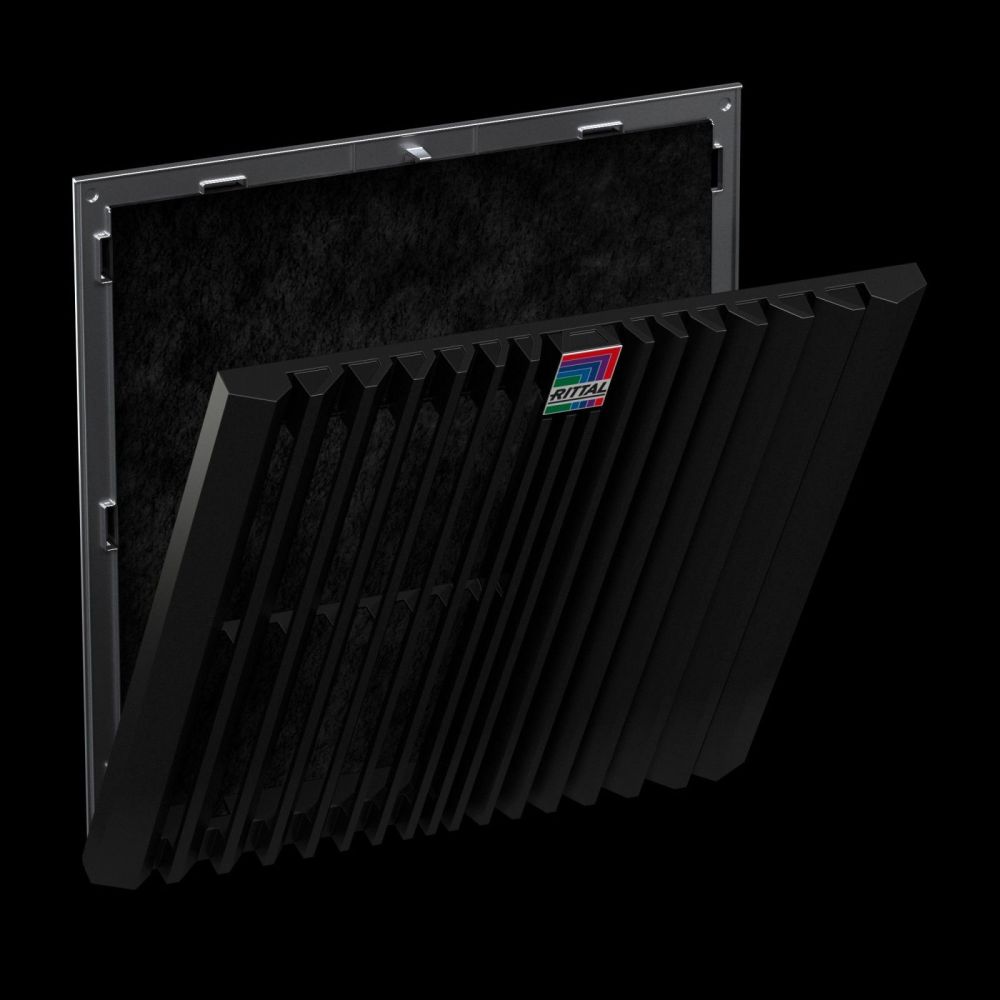

The filter features a new opening mechanism on the louver grille, simplifying filter replacement. Mounting to the enclosure is tool-free and accelerated by optimized snap hooks. This reduces installation time and minimizes effort during maintenance and replacement. The delivery includes the outlet filter and an EMC filter mat, which contributes to shielding against electromagnetic interference.

Technology Explained Simply

The filter dimensions are 116.5 mm width and 116.5 mm height, with a depth of 33.2 mm. The mounting cutout in the enclosure requires a 92 mm width and 92 mm height opening. The protection rating according to IEC 60 529 is IP 54 when using the nonwoven filter and IP 56 when additionally installing a spray water hood. According to NEMA classification, the filter is suitable for Type 12 (with nonwoven filter) as well as Type 3 and Type 3R (with nonwoven filter and spray water hood). These protection ratings ensure high protection against dust and splashing water, making it suitable for outdoor use or in humid environments.

Compatibility and Accessories

The outlet filter is specifically designed for filter fans with article number SK 3237.8xx. Available accessories include a spray water hood for SK 3237.xxx stainless steel and an SK nonwoven filter mat for EMC filter fans SK 3237.8x. The spray water hood increases the protection rating to IP 56 and enables use in environments with increased humidity or splashing water exposure.

Mounting and Installation

Mounting is tool-free and quickly and securely attached to the enclosure using optimized snap hooks. The installation dimensions are clearly defined, ensuring precise fit. Installation requires no additional tools or aids, reducing mounting time and minimizing error potential.

Advantages in Operation

Using the Rittal SK 3237.400 enables reliable and maintenance-friendly climate control of enclosures. The tool-free mounting and easy filter replacement reduce operating costs and increase system availability. The integrated EMC protection function reduces electromagnetic interference affecting electronic components in the enclosure. The high protection rating ensures long service life and stable operation even under demanding environmental conditions.

General
ModelWall mounting, EMC
ColourRAL 7035
Scope of deliveryExhaust filter, EMI filter mat
Mounting cutoutCutout width: 92 mm, cutout height: 92 mm
Suitable for part no.SK 3237.8xx
Width116,5 mm
Height116,5 mm
Depth33,2 mm
NEMA degree of protectionType 12 with felt filter, Type 3, 3R with felt filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3237400, EAN: 4028177998414

Questions & answers

What is the delivery time of Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035?

The article Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237400 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3237400 Blue e+ outlet filter EMV, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
