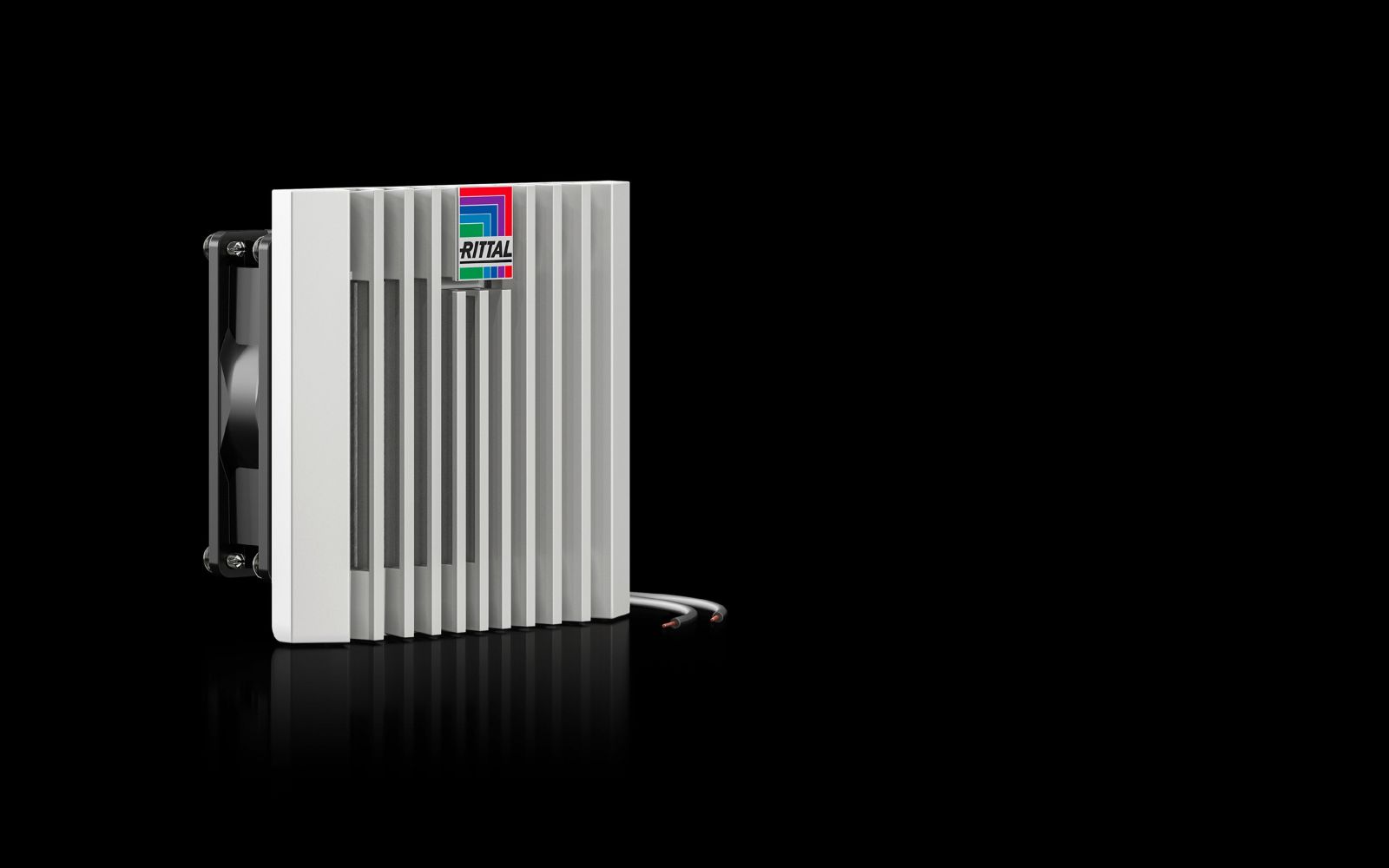

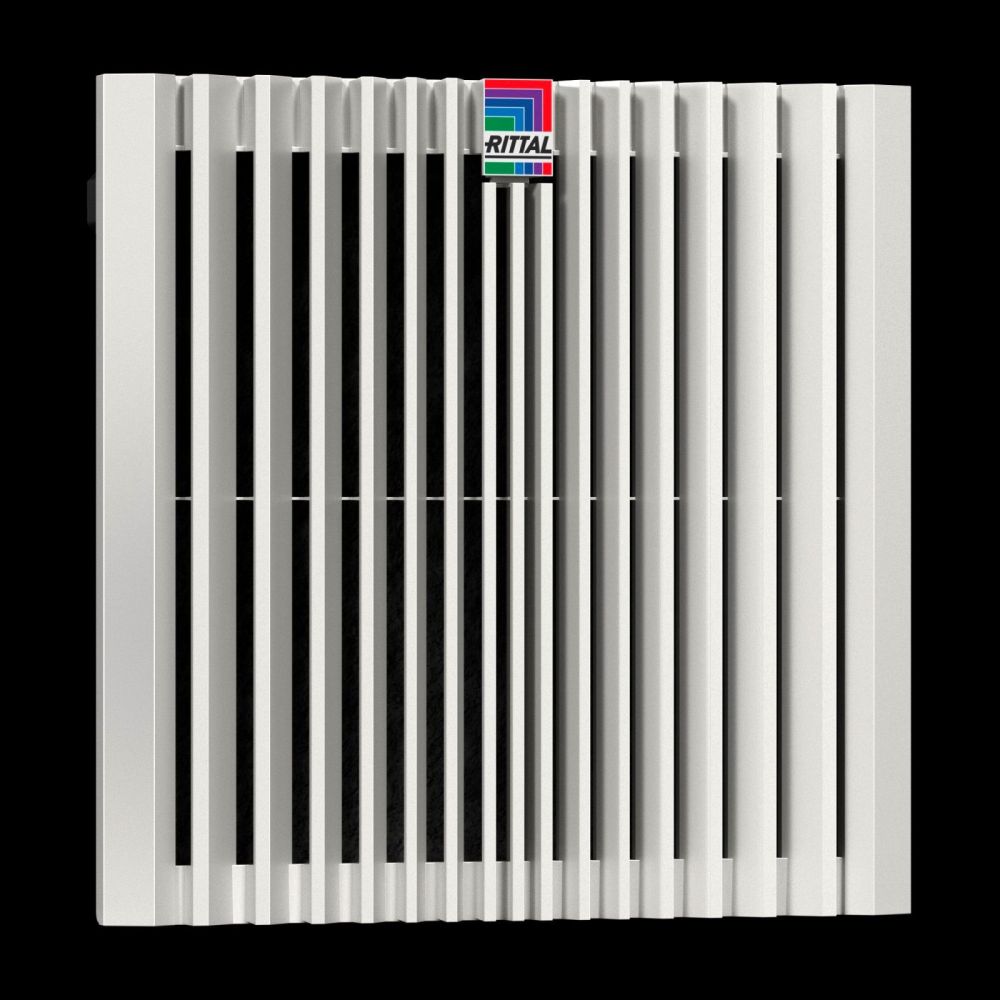

Rittal 3237810 Blue e+ filter fan EMV 20/25 m³/h, 115 V, RAL 7035
|
-10% 119,49 EUR 133,28 EUR |
|
|
( 142,19 EUR incl. VAT ) ≈ £100.01 | ≈ $131.32 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683787 |
| Mfg Part No: | 3237810 |
| UPC/EAN: | 4028177998254 |
| Weight: | 0.4 kg |
| Type: | SK 3237.810 |
Product information for Rittal 3237810:
Applications
The filter fan is intended for use in enclosures and technical housings where controlled air circulation is required to regulate the operating temperature of electronic components. It is particularly suitable for applications where electromagnetic compatibility (EMV) is important, such as in automation technology, manufacturing industry, or power supply. The protection rating IP 54 (with felt filter) and IP 54 (with felt filter and spray water hood) allows use in environments with dust and splashing water, with the IP 54 rating also suitable for outdoor use. The NEMA protection ratings Type 12, Type 3, and Type 3R underline suitability for industrial and weather-resistant applications.
Functions and Equipment in Detail
The fan features an axial split-pole motor, ensuring uniform and constant air circulation. The diagonal fan technology provides higher pressure stability, resulting in improved air distribution within the enclosure. Air performance is 20 m³/h free blowing and 15 m³/h with outlet filter at 50 Hz; at 60 Hz, the values are 25 m³/h and 18 m³/h. The rated operating voltage is 115 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The rated power is 12 W at 50 Hz and 10 W at 60 Hz, with maximum rated current of 0.14 A (50 Hz) and 0.13 A (60 Hz). The unit is equipped with an EMV filter mat to ensure protection against electromagnetic interference. The fuse is rated at 2 A to ensure electrical safety.
Technology Explained Simply

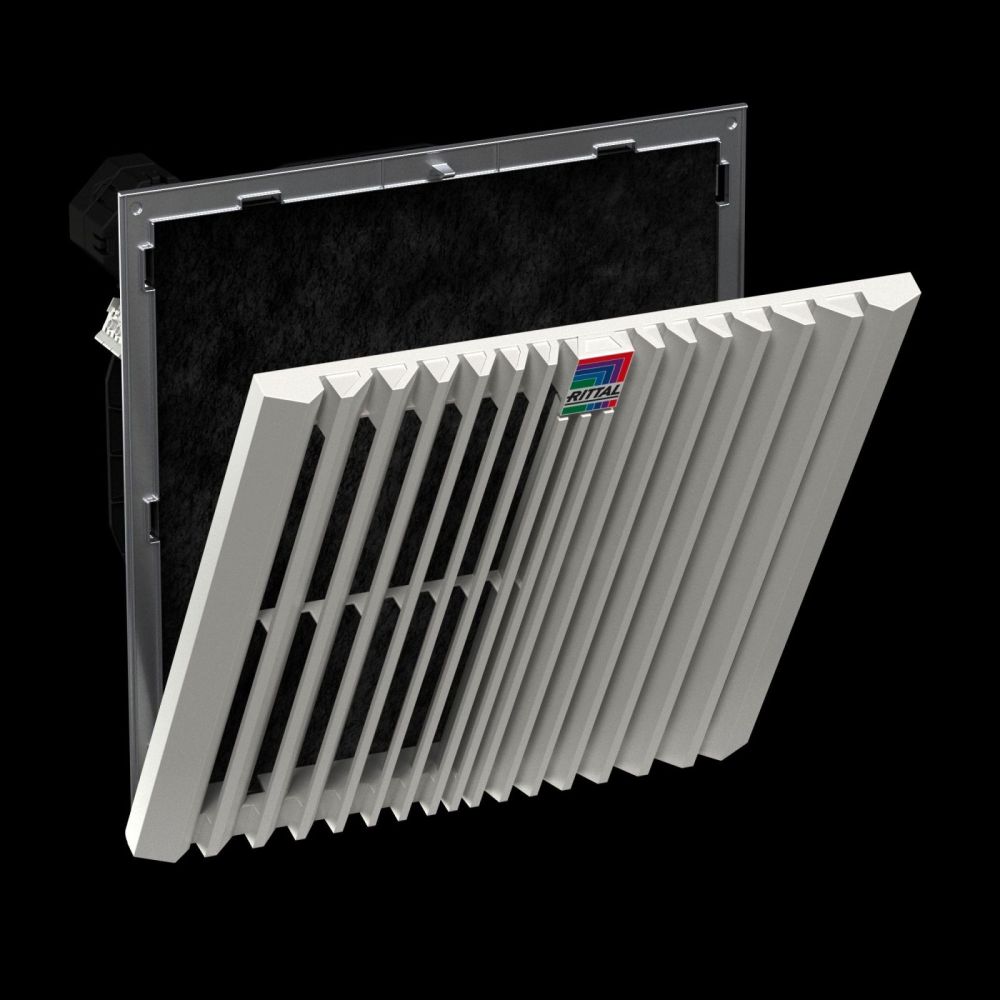

The EMV shielding of the fan meets requirement level 2 according to EN 61587-3, indicating high damping of electromagnetic interference. This is particularly important in environments with sensitive electronics to avoid interference. The split-pole motor is designed for reliable and quiet operation, with sound pressure level of 42 dB(A) at 50 Hz and 47 dB(A) at 60 Hz. Tool-free mounting is achieved via optimised latching hooks, enabling quick and secure attachment to the enclosure. Filter replacement is simplified by a new opening mechanism on the louver grille, making maintenance easier.
Compatibility and Accessories
The fan can be combined with various accessories to extend functionality. These include the Blue e+ outlet filter EMV in RAL 7035, which further improves air quality in the enclosure. A thermostat or digital temperature display can be used to control fan speed, increasing energy efficiency and extending the device’s lifespan. A speed controller allows precise adjustment of airflow. The spray water hood for SK 3237.xxx stainless steel increases protection rating to IP 54 and is suitable for outdoor use. A hygrostat can be used for humidity control in the enclosure.
Mounting and Installation

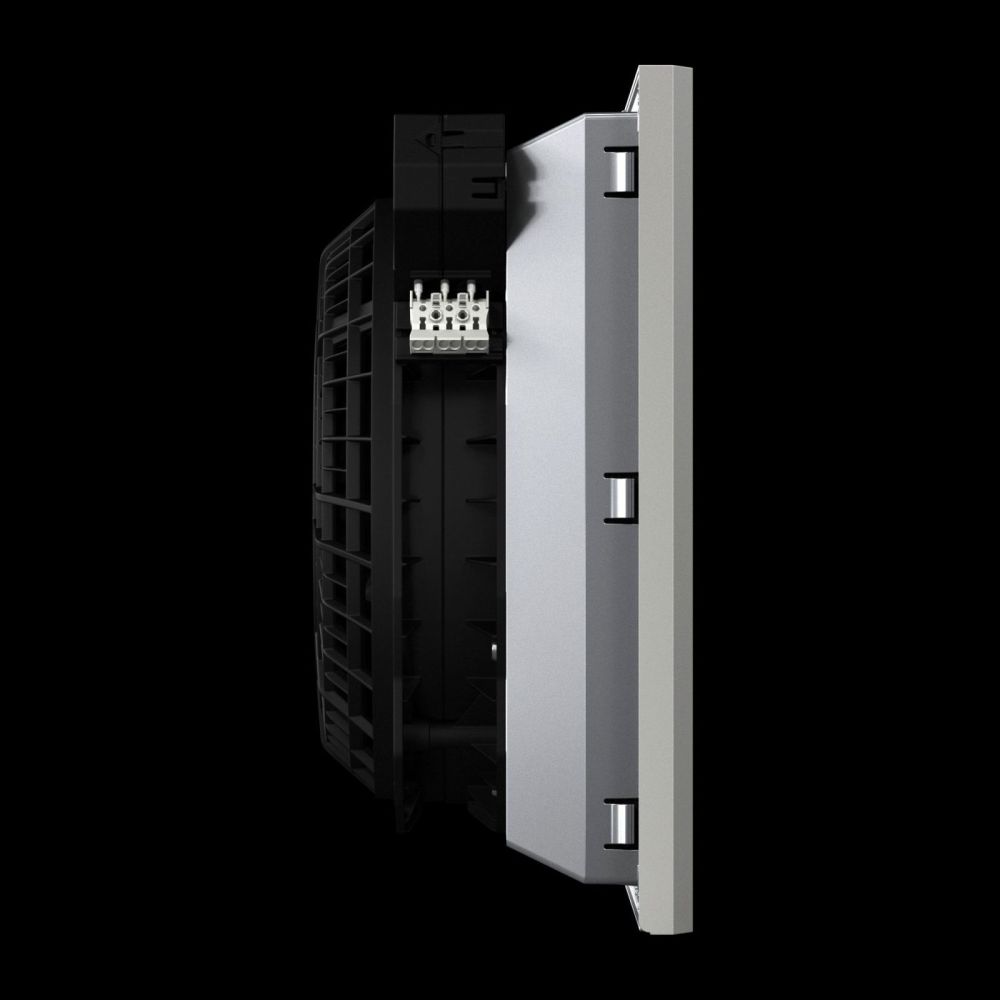

Mounting is tool-free on the enclosure wall. The mounting cutout is 92 mm in width and height, with an installation depth of 46 mm. The unit dimensions are 116.5 mm (width) × 116.5 mm (height) × 64.5 mm (depth). The unit is designed for an operating temperature of -15 °C to 55 °C, with storage temperature ranging from -30 °C to 70 °C. Installation is done by simply latching the hooks into the designated holes in the enclosure.
Advantages in Operation
The fan provides reliable and quiet ventilation with high EMV shielding effectiveness. Tool-free mounting and easy filter replacement reduce installation and maintenance times. The integrated EMV filter mat ensures effective interference reduction. Combining with temperature controllers or displays enables energy-efficient operation and extends the device’s lifespan. Protection ratings IP 54 and IP 54 (with accessories) make the fan suitable for a wide range of industrial operating conditions.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 20 m³/h, At 60 Hz: 25 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 15 m³/h, at 60 Hz: 18 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 12 W, At 60 Hz: 10 W |
| Rated current max. | At 50 Hz: 0.14 A, At 60 Hz: 0.13 A |
| Width | 116,5 mm |
| Height | 116,5 mm |
| Depth | 64,5 mm |
| Built-in depth | 46 mm |
| Mounting cutout | Cutout width: 92 mm, cutout height: 92 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R with felt filter and spray water hood |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 42 dB(A), At 60 Hz: 47 dB(A) |
Questions & answers
What is the delivery time of Rittal 3237810 Blue e+ filter fan EMV 20/25 m³/h, 115 V, RAL 7035?
The article Rittal 3237810 Blue e+ filter fan EMV 20/25 m³/h, 115 V, RAL 7035 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237810 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3237810 Blue e+ filter fan EMV 20/25 m³/h, 115 V, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3237810 Blue e+ filter fan EMV 20/25 m³/h, 115 V, RAL 7035 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
