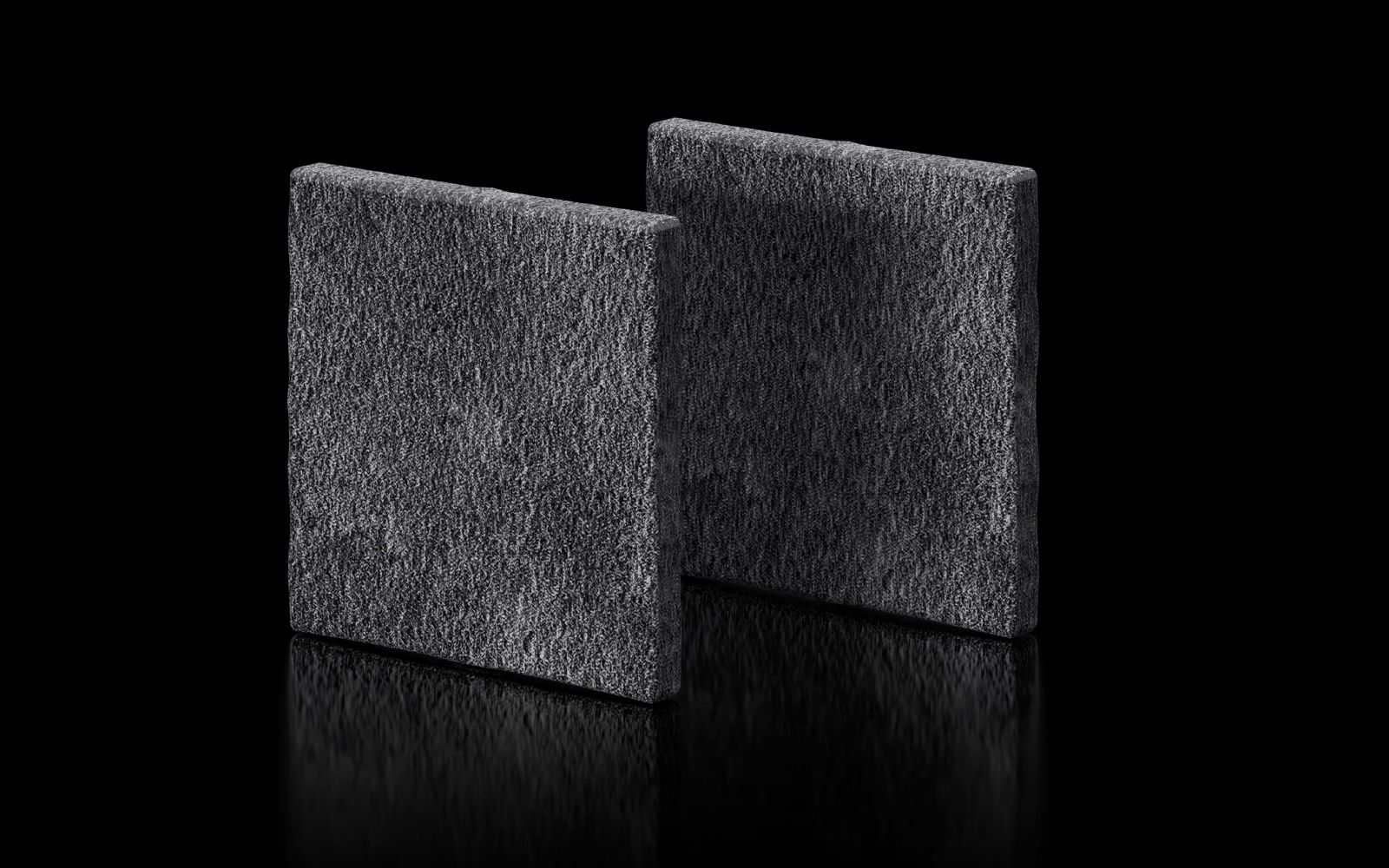

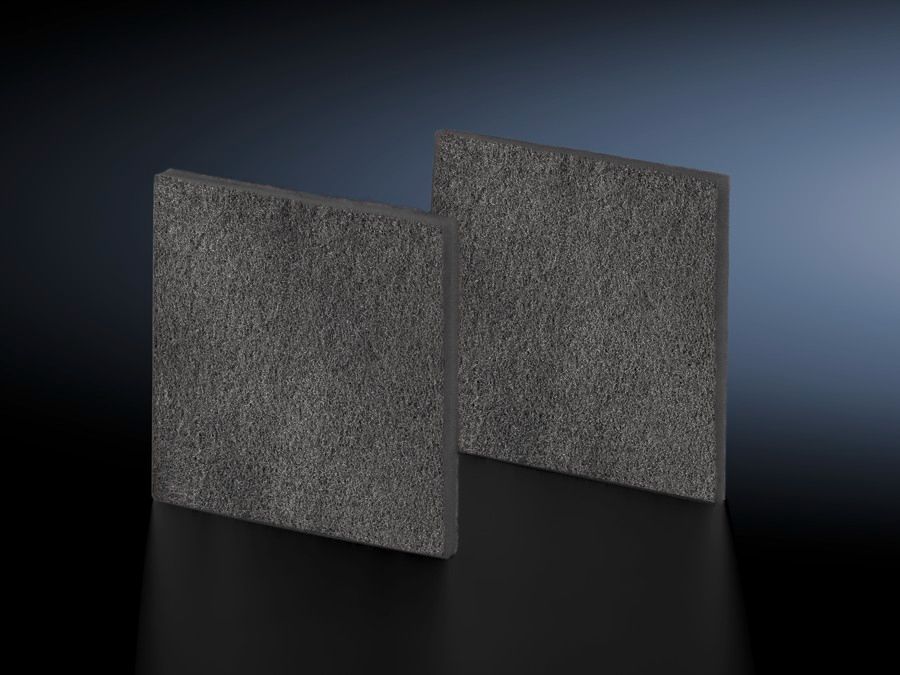

Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x

Your rating:
Average rating
product review for Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x
( 5 / 5 ) 2 ratings
Rittal 3237067
This image may differ from the desired article.
Rittal 3237067Rittal 3237067
16,87 EUR
( 20,08 EUR incl. VAT )
≈ £14.12  |  ≈ $18.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x
Datasheet:file_download Download
Lieske Part No.:684183
Mfg Part No: 3237067
UPC/EAN: 4028177028661
Weight:0.01 kg
Type:SK 3237067

Product information for Rittal 3237067:

The Rittal SK 3237067 is a nonwoven filter mat specifically designed for EMV filter fans with article numbers 3237.4xx and 3237.8xx. It serves as a replacement filter to protect enclosure components from dust, dirt, and moisture. The filter mat is made of a random fiber nonwoven with a progressive structure, ensuring efficient filtration. The copper-nickel-chromium coating provides high corrosion resistance and extends the filter's service life. The color is anthracite, enabling discreet integration into industrial environments.

Applications

The filter mat is designed for use in enclosures equipped with EMV filter fans. It protects sensitive electronic components from particles with a grain size of 10 µm and above. The application is in industrial environments where continuous air purification is required to ensure the function and service life of installed devices. The filter mat is suitable for use in roof fans, filter fans, or thermoelectric coolers.

Functions and Equipment in Detail

The filter mat features an open structure on the dusty air side, enabling good air permeability, and a closed structure on the clean air side, ensuring reliable filtration. The filter class corresponds to class G2 according to DIN EN 779 and category ISO Coarse 50 % according to DIN EN ISO 16890. This classification means that the filter retains at least 50 % of particles in the coarse dust particle range (Coarse) from 10 µm. The temperature resistance is up to 100 °C, and the material is self-extinguishing class F1 according to DIN 53 438, providing increased safety at elevated temperatures.

Technology Explained Simply

The progressive structure of the random fiber nonwoven ensures that larger particles are captured in the upper layers of the filter, while finer particles are filtered in deeper layers. This extends the filter's service life and ensures even loading. The copper-nickel-chromium coating protects the material from corrosion, especially in humid or aggressive environments. The filter mat is not waterproof and is primarily intended for particle filtration.

Compatibility and Accessories

The filter mat is specifically developed for EMV filter fans with article numbers 3237.4xx and 3237.8xx. The use of original Rittal filter mats is required to ensure the performance data, protection rating, and approvals of the devices. As compatible accessories, the SK EMV filter mat for SK 3237.6xx is offered, which is not identical to this article. The filter mat is available in a packaging unit of 5 pieces.

Installation and Mounting

Mounting is done by inserting the filter mat into the designated filter frame of the EMV filter fan. Correct alignment is important to ensure functionality. The filter mat is not self-adhesive and must be mechanically installed into the fan. Installation requires no additional tools, although clean handling is recommended to avoid impairing filter performance.

Operational Advantages

Using the Rittal SK 3237067 ensures reliable protection for enclosure components. The high temperature resistance and self-extinguishing property increase operational safety. The filter class G2/ISO Coarse 50 % provides sufficient protection against coarse particles, which is adequate for many industrial applications. Using original filters ensures compliance with device approvals and protection ratings, which is important for conformity with standards.

General
Modelfor EMI filter fans
MaterialCopper-nickel-chromium coated chemical fiber
ColourAnthracite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3237.4xx/3237.8xx
Width92 mm
Height92 mm
Depth10 mm
Filter classAccording to DIN EN 779: G2, according to DIN EN ISO 16890: ISO Coarse 50 %


Product data sheet
Datasheet for Rittal 3237067, EAN: 4028177028661

Questions & answers

What is the delivery time of Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x?

The article Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237067 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x always at the best possible price. We can give you a discount of 2% on Rittal 3237067 SK filter mat for EMI filter fan SK 3237.8x if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
