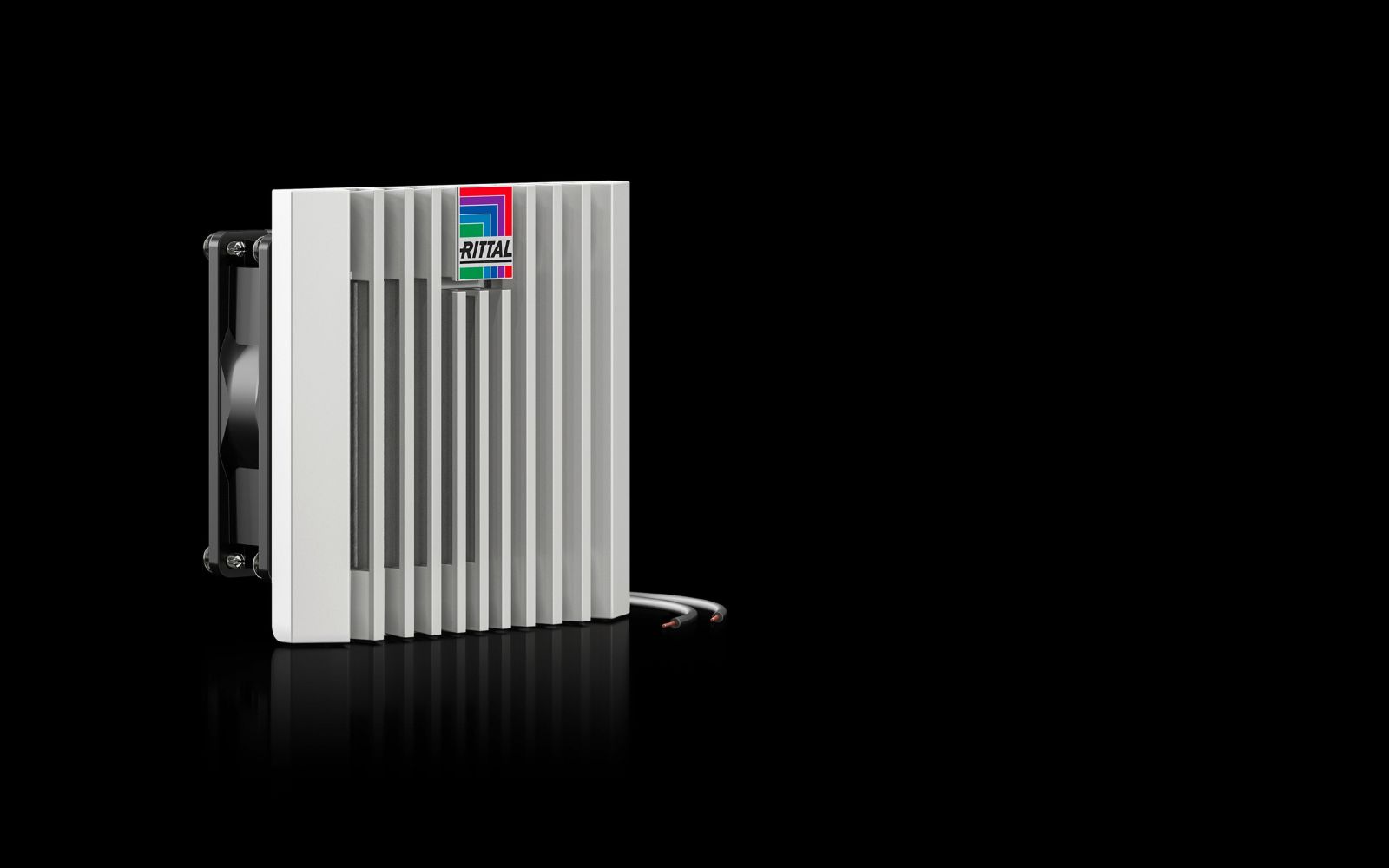

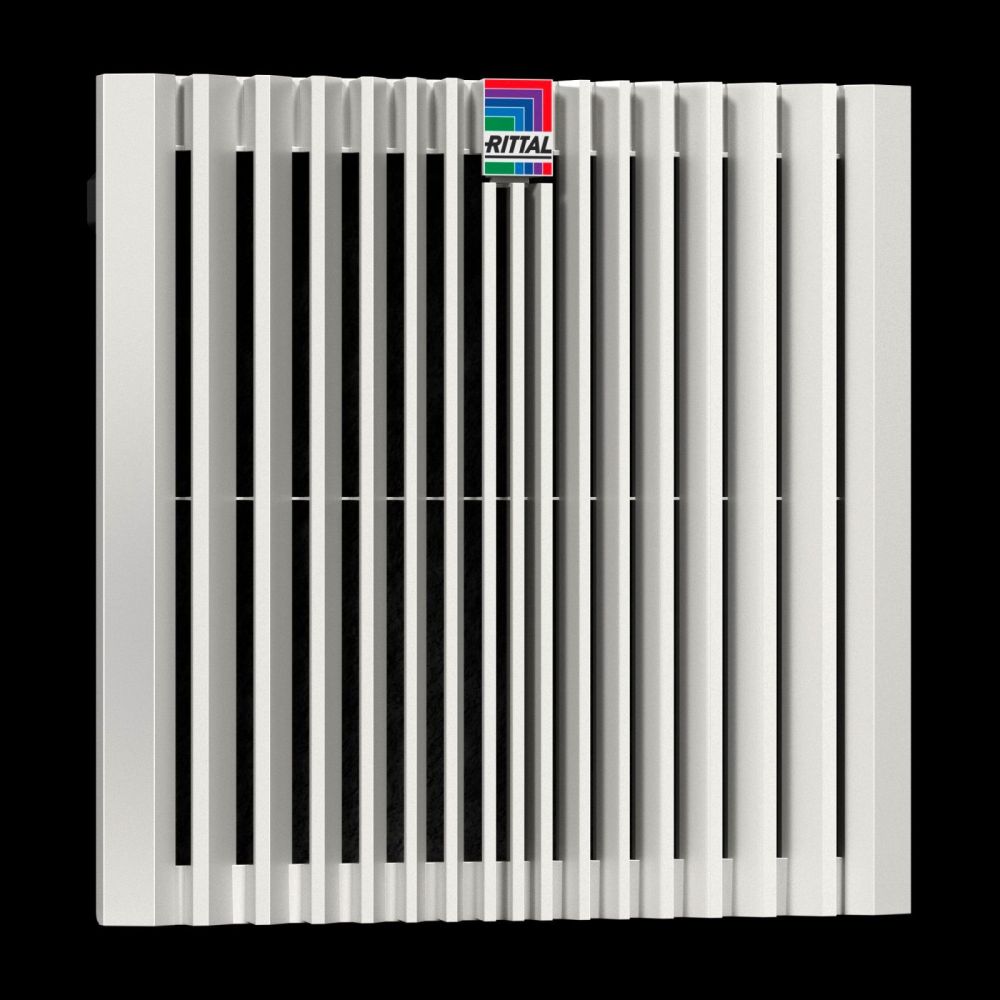

Rittal 3237800 Blue e+ filter fan EMV 20/25 m³/h, 230 V, RAL 7035
|
119,49 EUR |
|
|
( 142,19 EUR incl. VAT ) ≈ £100.01 | ≈ $131.32 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683785 |
| Mfg Part No: | 3237800 |
| UPC/EAN: | 4028177998261 |
| Weight: | 0.486 kg |
| Type: | SK 3237.800 |
Product information for Rittal 3237800:
Applications
The filter fan is designed for use in industrial environments where controlled air circulation and protection against dust and moist air are required. It is particularly suitable for enclosures in production plants, automation technology, machine building, and other areas where electronic components must be protected from overheating. The EMV shielding meets requirement level 2 according to EN 61587-3, ensuring high attenuation of electromagnetic interference.
Functions and Equipment in Detail
The fan features an axial fan with split-pole motor, ensuring reliable and quiet air flow. The air flow rate is 20 m³/h at 50 Hz and 25 m³/h at 60 Hz when free blowing, decreasing to 15 m³/h (50 Hz) and 18 m³/h (60 Hz) when an additional outlet filter is used. The rated power is 13 W (50 Hz) and 11.1 W (60 Hz), with a rated current of up to 0.1 A (50 Hz) or 0.09 A (60 Hz). The protection rating IP 54 is achieved when operating with the nonwoven filter; with a spray hood, the protection rating increases to IP 56. According to NEMA standards, the device corresponds to Type 12 with nonwoven filter and Type 3, 3R with nonwoven filter and spray hood.
Technology Explained Simply

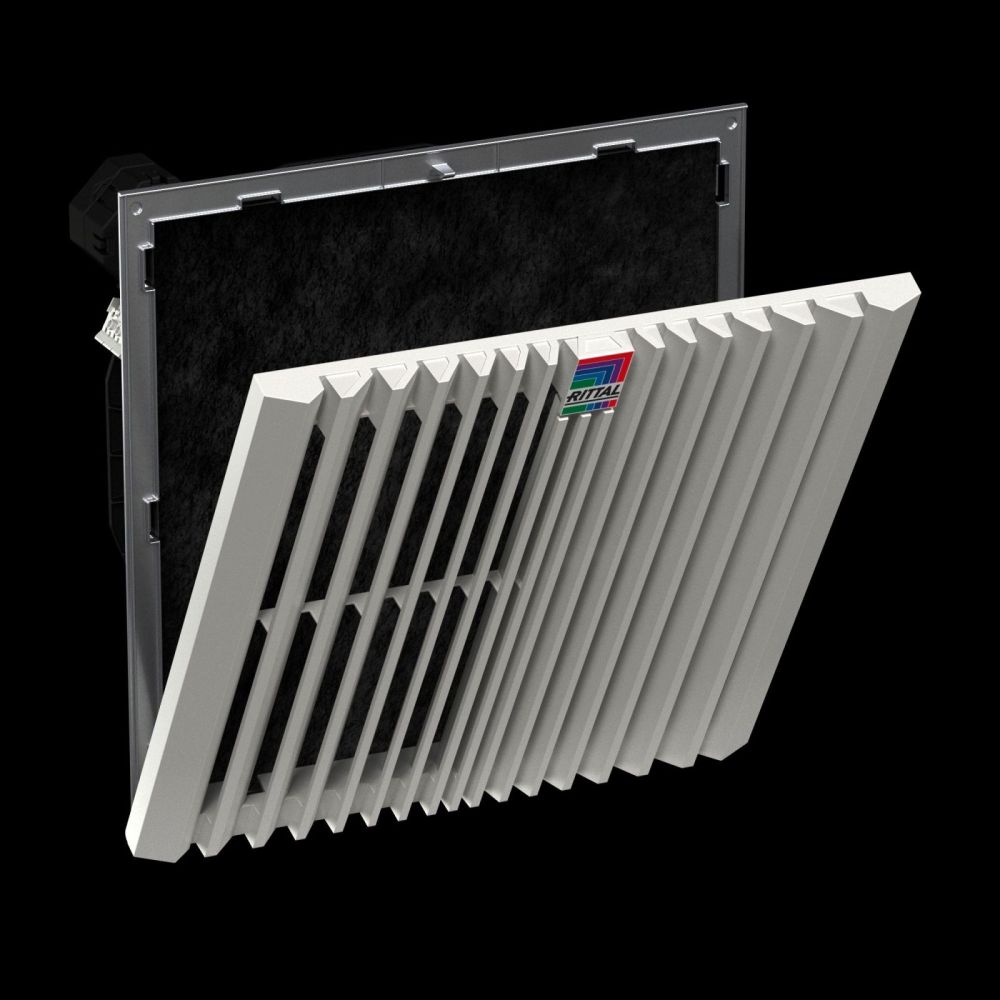

The diagonal fan technology ensures higher pressure stability, resulting in more uniform and consistent ventilation of the enclosure. This minimizes temperature fluctuations and improves the lifespan of installed components. Tool-free mounting is enabled by optimized snap hooks, allowing quick and secure attachment to the enclosure. Filter replacement is simplified by a new opening mechanism on the louver grille, making maintenance easier. The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The fuse is rated at 2 A to protect the fan from overloads.
Compatibility and Accessories
The fan can be combined with various accessories to extend functionality. These include a Blue e+ outlet filter EMV in RAL 7035, a thermostat for internal temperature control, a speed controller for filter fans and air/air heat exchangers, a digital temperature display and control for 100–230 V, and a spray hood for stainless steel SK models. Additionally, an SK nonwoven filter mat for EMV filter fans SK 3237.8x is available, simplifying filter replacement. A hygrostat can be used for humidity control.
Mounting and Installation

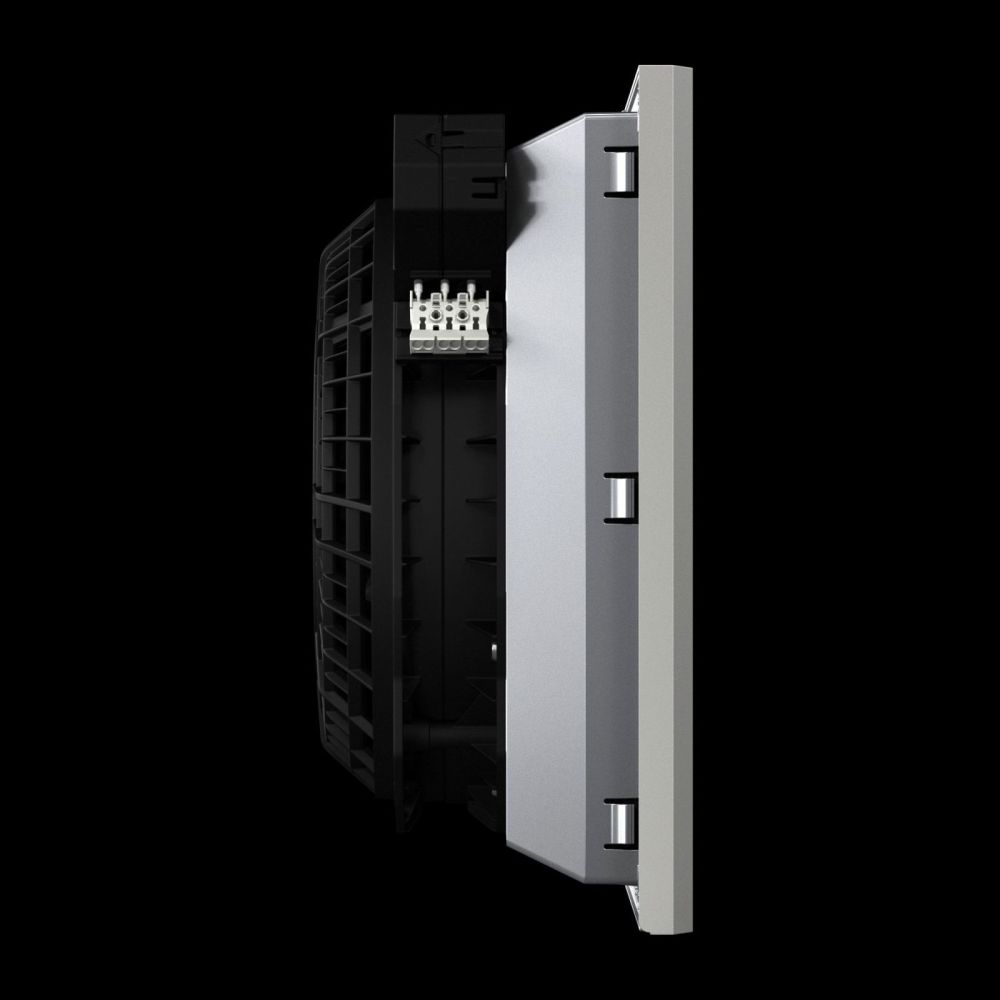

Mounting is done on a surface with a mounting cutout of 92 mm width and 92 mm height. The installation depth is 46 mm, and the overall dimensions of the device are 116.5 mm (W) × 116.5 mm (H) × 64.5 mm (D). The tool-free mounting and optimized snap hooks allow for quick and secure installation without additional tools.
Operational Advantages
The operating temperature range is between -15 °C and 55 °C, and the storage temperature range is between -30 °C and 70 °C. The sound pressure level is 42 dB(A) at 50 Hz and 47 dB(A) at 60 Hz, ensuring quiet operation. The recommendation to use temperature controllers or displays supports energy efficiency and extends the device’s lifespan. The combination of EMV shielding, high air flow, and maintenance-friendly design makes the SK 3237.800 a reliable solution for enclosure climate control.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |
| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 20 m³/h, At 60 Hz: 25 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 15 m³/h, at 60 Hz: 18 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 13 W, At 60 Hz: 11.1 W |
| Rated current max. | At 50 Hz: 0.1 A, At 60 Hz: 0.09 A |
| Width | 116,5 mm |
| Height | 116,5 mm |
| Depth | 64,5 mm |
| Built-in depth | 46 mm |
| Mounting cutout | Cutout width: 92 mm, cutout height: 92 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R with felt filter and spray water hood |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 42 dB(A), At 60 Hz: 47 dB(A) |
