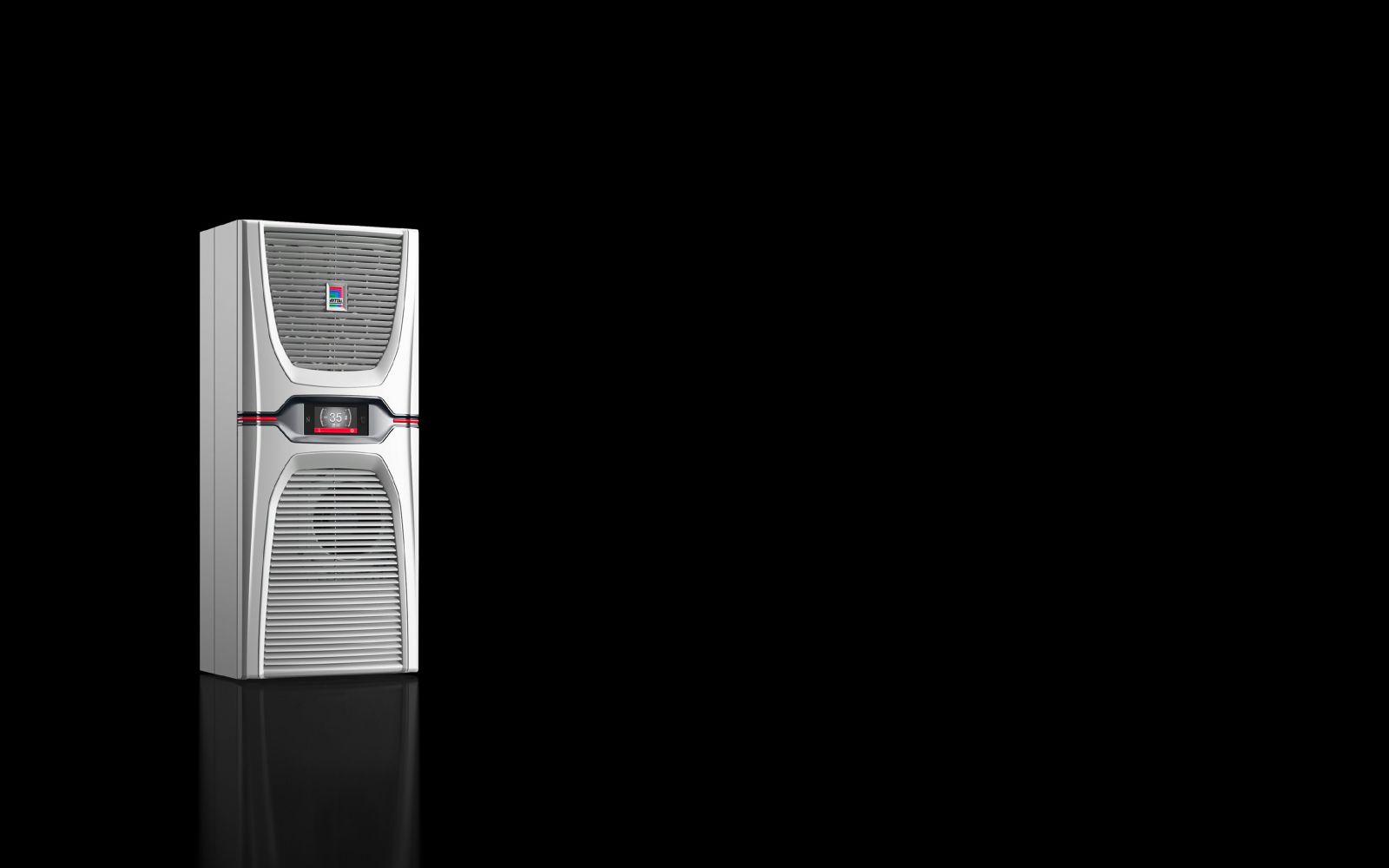

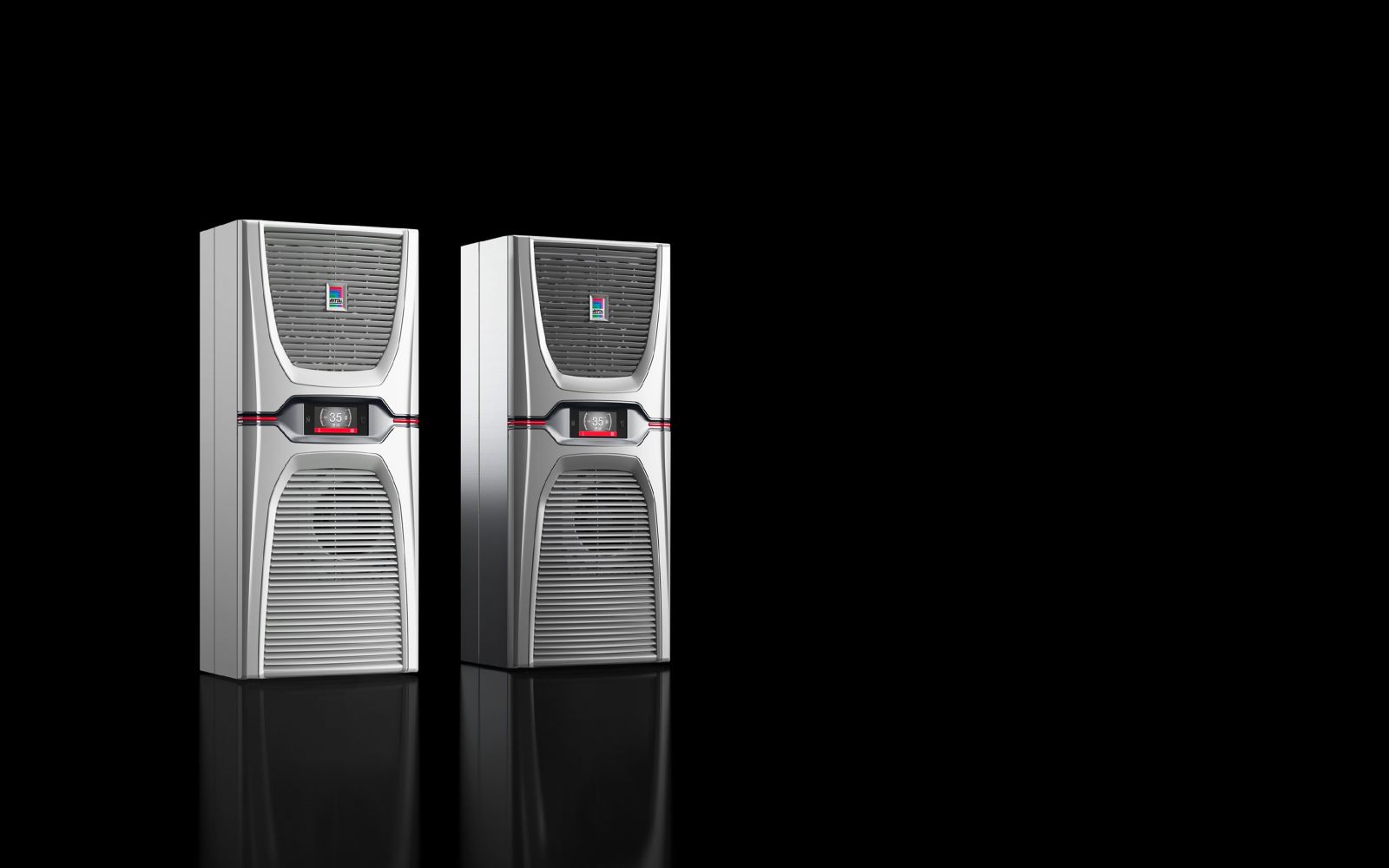

Rittal 3185830 Wall-mounted cooling unit Blue e+ total cooling capacity 1.60 kW (freight shipping)
|
2.402,63 EUR |
|
|
( 2.859,13 EUR incl. VAT ) ≈ £2,011.00 | ≈ $2,640.49 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1335893 |
| Mfg Part No: | 3185830 |
| UPC/EAN: | 4028177708082 |
| Weight: | 46 kg |
| Type: | SK 3185830 |
Product information for Rittal 3185830:
Applications
This cooling unit is suitable for industrial applications requiring controlled temperature inside enclosures. It is used in areas where electronic modules, controls, or other sensitive components must be protected from overheating. The multi-voltage capability allows use in various countries and regions without modifying the power supply. Operating temperature ranges are between -20 °C and 60 °C, with the refrigerant circuit actively operating between 3 °C and 60 °C. Heat Pipe technology ensures gentle cooling, extending the lifespan of components installed in the enclosure.
Functions and Equipment in Detail
The unit is equipped with an e+ controller, factory-set to +35 °C, with an adjustable range from 20 °C to 50 °C. Temperature control is managed via a touch display, enabling intuitive operation. The unit is pre-wired for connection and features a plug-in terminal strip, simplifying installation. Mounting hardware is included in the delivery scope.
Technology Explained Simply
Cooling capacity is measured according to DIN EN 14511 and amounts to 1.6 kW at L35 L35/50 Hz and 1.2 kW at L35 L50/50 Hz. Energy efficiency is indicated by an Energy Efficiency Ratio (EER) of 2.96 and a Seasonal Energy Efficiency Ratio (SEER) of 5.5, indicating high efficiency. Variable-speed components and Heat Pipe technology contribute to an average energy saving of 75 %. The refrigerant R-513A is used in a quantity of 0.76 kg, with a Global Warming Potential (GWP) of 631. The unit is designed for a maximum operating pressure of 24 bar. Protection class IP 55 for the internal circuit and NEMA classification UL Type 12 as well as UL Type 3R ensure high protection against dust and splashing water, suitable for semi-outdoor use.
Compatibility and Accessories
For remote monitoring and networking of Blue e+ units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to increase machine availability and process safety. Available accessories include, among others, covers for the connection box (article numbers 3355.200 and 3355.210), a condensate hose (12 x 2 mm, length 10 m), an air deflector, a temperature sensor, and metal and filter mats for the unit.
Mounting and Installation

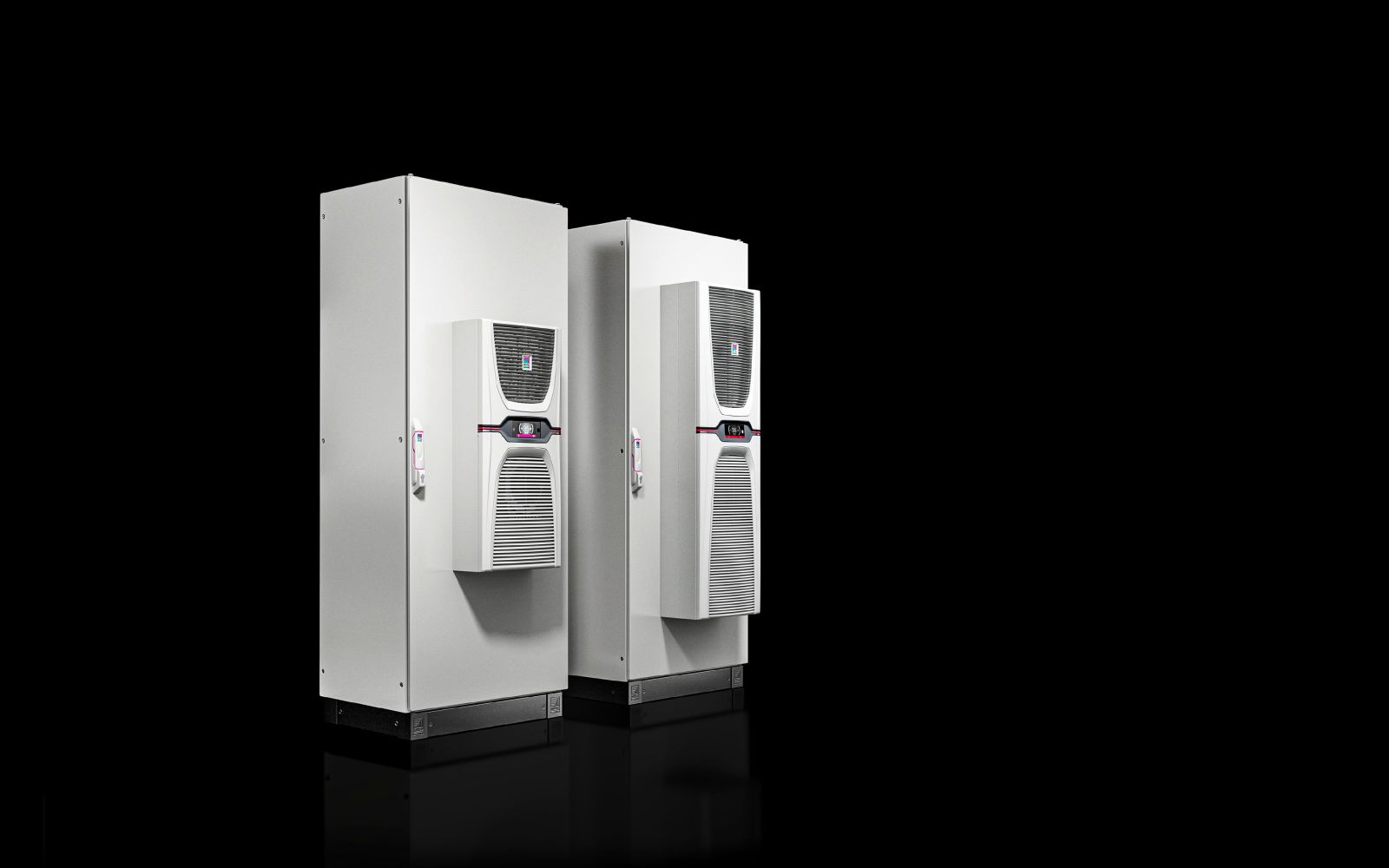

Mounting is done on the wall of the enclosure or housing. The required mounting cutout is 383 mm (width) × 929 mm (height). The unit is pre-wired for connection, accelerating installation. Mounting is done using the included hardware. The operating voltage must match the specified values, with tolerances of -10 % to +10 % (depending on voltage range) permitted. For protection of the unit, appropriate surge protection must be provided, with specific values (Uc, Imax, In, Up) depending on the operating voltage.
Operational Advantages
The combination of variable-speed components and Heat Pipe technology results in significant energy savings and extended lifespan of components installed in the enclosure. Integrated condensate evaporation reduces maintenance effort, as no external drain connection is required. Intuitive operation via the touch display and the option for remote monitoring increase operational safety and system availability. Multi-voltage capability enables flexible use in various electrical networks worldwide.
| General | |
| Model | Wall surface mounted |
| Market-relevant product changes | The cover for the connection box to protect the electrical connection on the cooling unit is no longer included in the scope of delivery from the beginning of 2024. The covers 3355.200 and 3355.210 can be ordered optionally as accessories. |
| Material | steel sheet |
| Colour | RAL 7035 |
| Scope of delivery | Condensate trap with hydrophobic RiNano coating, Integrated electric condensate evaporation, Including mounting material, Pre-wired for connection (pluggable terminal block) |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 1.6 kW, cooling capacity L35 L35/60 Hz: 1.6 kW, cooling capacity L35 L50/50 Hz: 1.2 kW, cooling capacity L35 L50/60 Hz: 1.2 kW |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz, 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Note | By downloading the software, a contract is established between the contracting party and Rittal for the free use of the software according to these license terms. Only suitable for semi-outdoor use (see instruction manual). For protection of Blue e+ cooling units, appropriate surge protection must be provided: - Operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV. - Operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV. |
| Note on part number | Tolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V) / 380 V -10 % (342 V) and 480 V +6 % (509 V) |
| Rated power | 0,7 kW |
| Air performance (free blowing) | External circuit: 895 m³/h, Internal circuit: 700 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance factor L35 L35 (EER) 50 Hz: 2.96, Cooling performance factor L35 L35 (EER) 60 Hz: 2.96 |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 5,5 |
| Width | 400 mm |
| Height | 950 mm |
| Depth | 310 mm |
| Required mounting cutout | Cutout width: 383 mm, cutout height: 929 mm |
| Degree of protection IP according to EN 60 529 | Internal circuit IP 55 |
| NEMA degree of protection | UL Type 12, UL Type 3R |
| Refrigerant/cooling medium | Refrigerant: R-513A, quantity: 0.76 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.48 t |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.54 kW, rated power L35 L35/60 Hz: 0.54 kW, rated power L35 L50/50 Hz: 0.61 kW, rated power L35 L50/60 Hz: 0.61 kW |
| Permissible operating pressure (p max.) | 24 bar |
| PCF/VE (Cradle-to-Gate) | 664,08 |
