Rittal 3285800 Filter mat for SK 3185830

Your rating:
Average rating
product review for Rittal 3285800 Filter mat for SK 3185830
( 4.5 / 5 ) 6 ratings
Rittal 3285800
This image may differ from the desired article.
Rittal 3285800Rittal 3285800Rittal 3285800
21,16 EUR
( 25,18 EUR incl. VAT )
≈ £17.71  |  ≈ $23.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3285800 Filter mat for SK 3185830
Datasheet:file_download Download
Lieske Part No.:1872401
Mfg Part No: 3285800
UPC/EAN: 4028177709249
Weight:0.089 kg
Type:SK 3285800

Product information for Rittal 3285800:

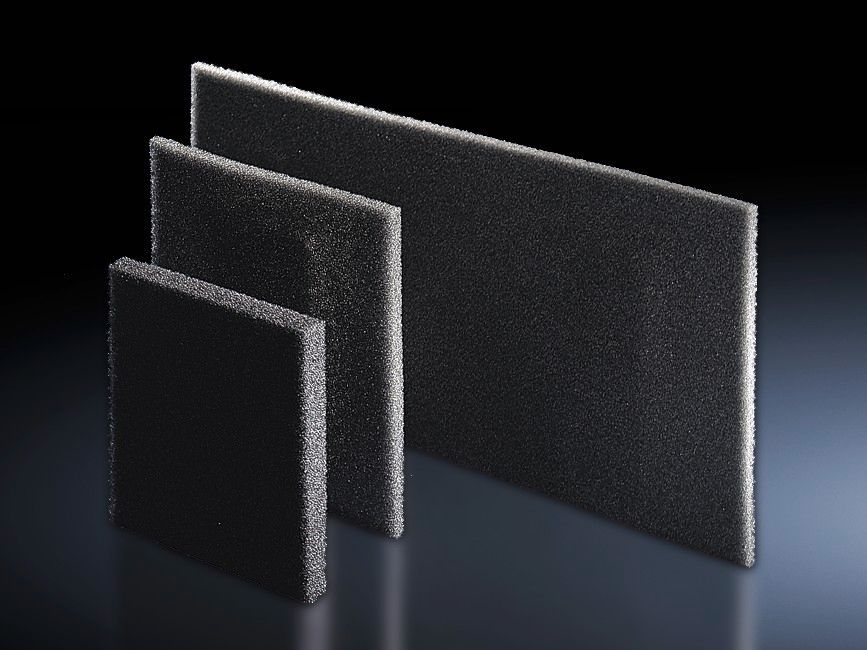

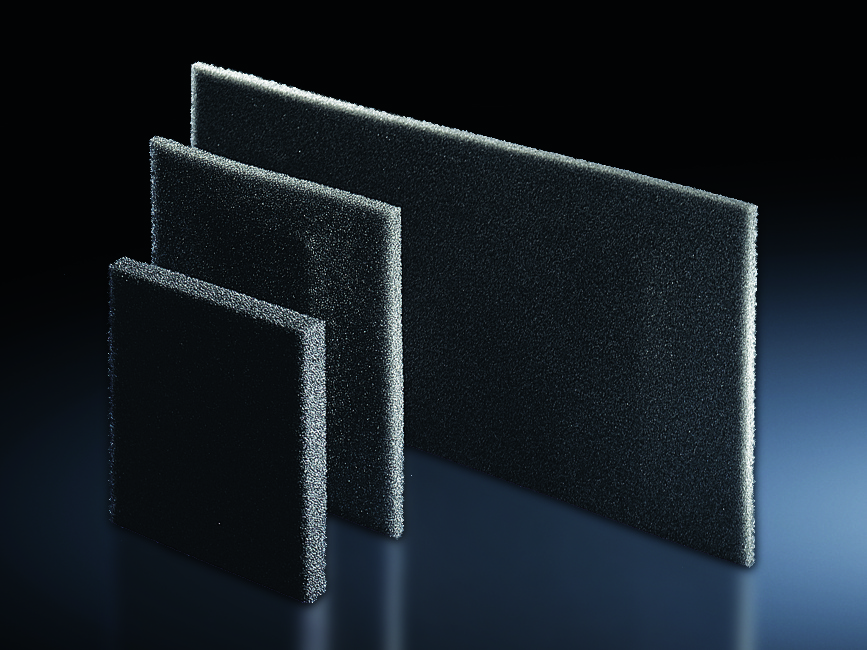

The SK 3285800 is a filter mat from Rittal, specifically developed for cooling units of the Blue e+ type. It serves as a protection filter to reduce dust load in the airflow of climate control units and is recommended for use in environments with increased contamination risk. The filter mat is made of open-cell polyurethane foam, which has a temperature resistance range of -40 °C to +80 °C. This makes it suitable for use in industrial environments where high or low temperatures may occur.

Applications
The filter mat is intended for cooling units with article numbers 3184.837 / 3484.837, 3185.83x / 3485.83x, and 3185.53x / 3485.53x. These units belong to the Blue e+ product family and are used in enclosures to regulate internal temperature. The use of the filter mat is particularly recommended in dusty or contaminated environments to simplify cleaning of the cooling units and extend their service life. The filter mat is not supplied standard with the cooling units, but is intended as an additional component for extreme operating conditions.

Functions and Equipment in Detail
The filter mat has dimensions of 360 mm (width) × 297 mm (height) × 10 mm (depth) and is therefore precisely matched to the installation conditions of the specified cooling units. It is inserted into the air intake opening of the unit to filter coarse particles from the ambient air. The filter class corresponds to DIN EN 779: G2 and DIN EN ISO 16890: ISO Coarse 50 %, meaning it retains particles in the range of 10 to 400 µm with an efficiency of at least 50 %. This filter type is suitable for reducing the load on internal cooling components caused by dust and dirt.

Technology Explained Simply
The open-cell polyurethane foam allows for good air permeability while simultaneously retaining coarse particles. The material selection ensures high chemical resistance and a long service life under industrial conditions. The temperature resistance of -40 °C to +80 °C ensures functionality even under extreme ambient temperatures. The filter mat is not reusable and must be replaced regularly depending on the level of contamination to maintain filter performance.

Compatibility and Accessories
The filter mat is exclusively designed for the specified cooling units of the Blue e+ type. It is not universally applicable and must be matched to the specific dimensions of the respective cooling units. Use with other units is not intended and may lead to malfunctions. The filter mat is supplied in a pack of 3 pieces, which facilitates maintenance and replacement intervals.

Installation and Mounting
Installation is carried out by simply inserting the filter mat into the designated opening of the cooling unit. No additional tools or mounting aids are required. The filter mat fits securely in the unit due to its exact fit. During maintenance, care should be taken to fully remove the filter mat and replace it with a new one to ensure optimal air purification.

Operational Advantages
The use of the filter mat reduces dust load inside the cooling units, extending maintenance intervals and increasing operational reliability. The easy replaceability and the small number of required tools simplify maintenance. The filter mat contributes to extending the service life of the cooling units by protecting internal components from contamination. The temperature resistance enables use in a wide range of industrial applications without impairing filter performance.

General
MaterialOpen-cell polyurethane foam
Suitable for part no.3184.837 / 3484.837, 3185.83x / 3485.83x, 3185.53x / 3485.53x
Width360 mm
Height297 mm
Depth10 mm
Suitable forEnclosure type: Blue e+ cooling units
Filter classAccording to DIN EN 779: G2, according to DIN EN ISO 16890: ISO Coarse 50 %


Product data sheet
Datasheet for Rittal 3285800, EAN: 4028177709249
