Rittal 3285810 Metal filter for SK 3185830

Your rating:
Average rating
product review for Rittal 3285810 Metal filter for SK 3185830
( 4.3 / 5 ) 9 ratings
Rittal 3285810
This image may differ from the desired article.
Rittal 3285810Rittal 3285810Rittal 3285810
-10% 76,82 EUR 85,69 EUR
( 91,42 EUR incl. VAT )
≈ £64.30  |  ≈ $84.43
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3285810 Metal filter for SK 3185830
Datasheet:file_download Download
Lieske Part No.:1588353
Mfg Part No: 3285810
UPC/EAN: 4028177709225
Weight:0.318 kg
Type:SK 3285810

Product information for Rittal 3285810:

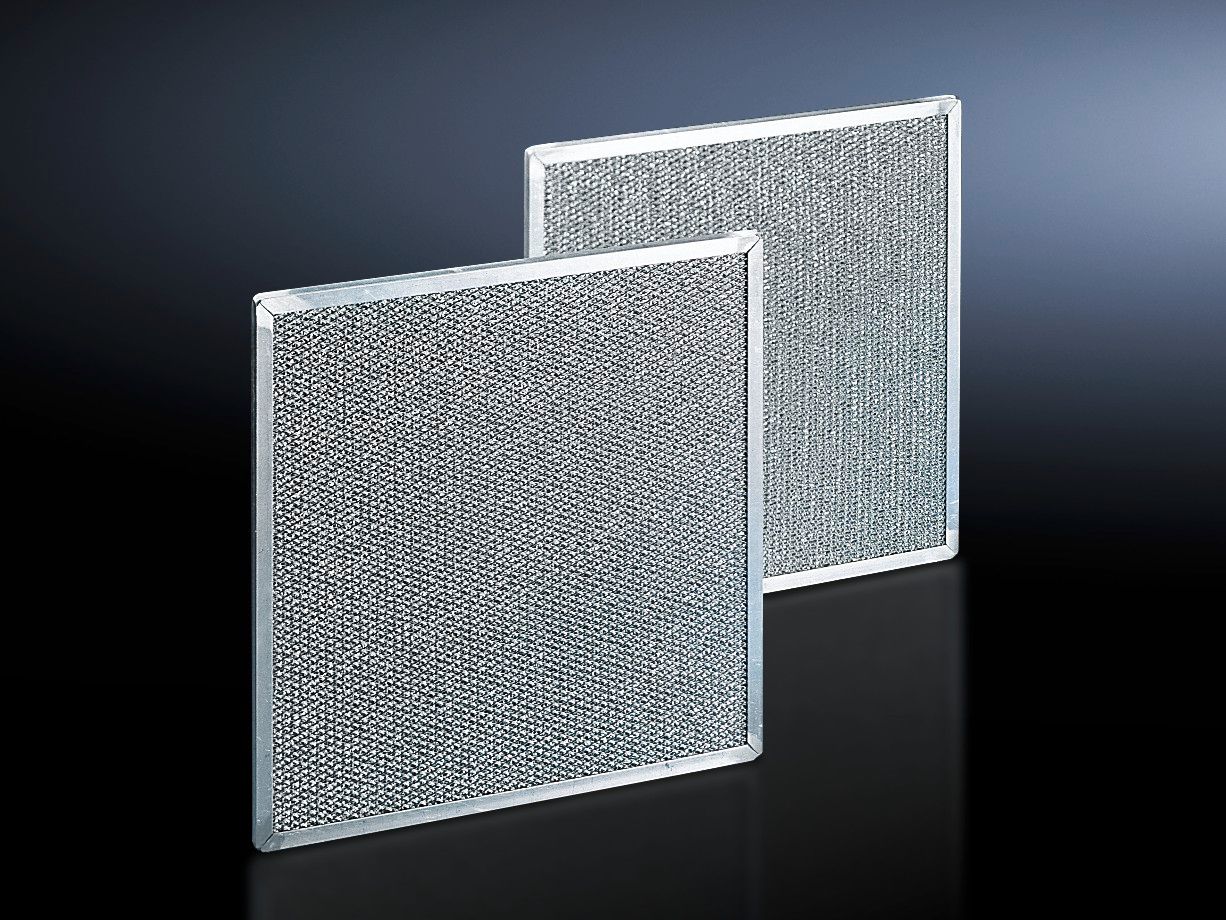

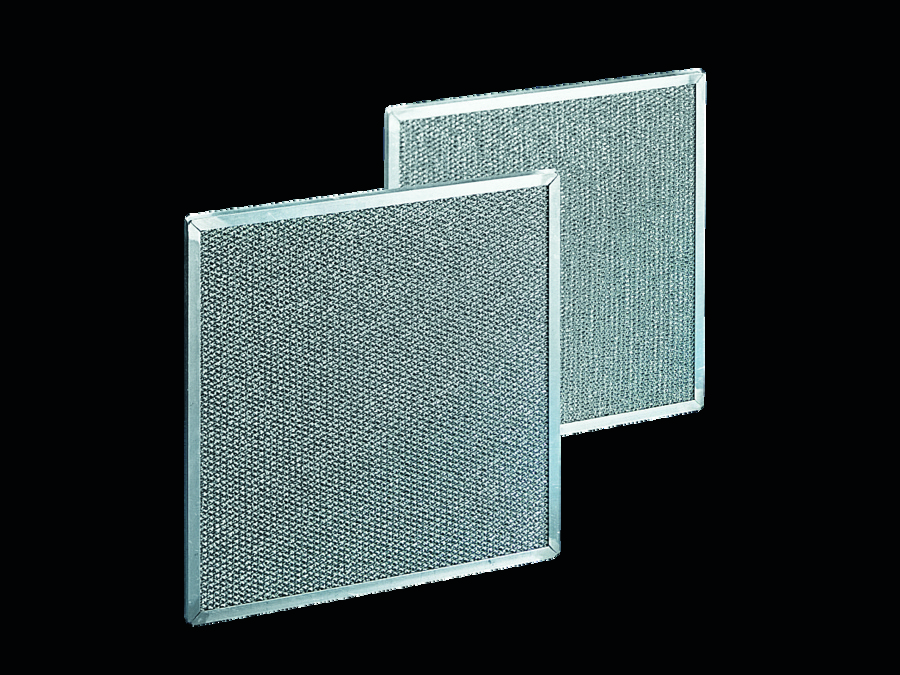

The SK 3285810 from Rittal is a metal filter made of aluminium, specifically developed for use in cooling units and climate control systems in industrial environments. It serves as a protection filter to capture dust- and oil-containing ambient air before it enters sensitive cooling components. The dimensions are 327 mm width, 280 mm height, and 10 mm depth, allowing for precise integration into the designated devices. The filter is particularly designed for cooling units with article numbers 3184.837 / 3484.837, 3185.83x / 3485.83x, and 3185.53x / 3485.53x, where the designation 3185.83x refers to a series of models with varying last digits.

Applications

The filter is used in industrial plants where the air contains high concentrations of dust, oil mist, or other particles. In such environments, the use of a washable metal filter is particularly advantageous, as it can be cleaned rather than replaced, unlike paper or textile filters. When air humidity or steam condenses on the metal surfaces, particles adhere to the surface and can be easily removed with water or degreasing cleaning agents. This reduces maintenance effort and extends the filter’s service life.

Functions and Equipment in Detail

The SK 3285810 is made of aluminium, a material suitable for its corrosion resistance and mechanical strength in industrial applications. The dimensions of 327 mm (width) × 280 mm (height) × 10 mm (depth) ensure an exact fit in the designated cooling units. The shallow depth of 10 mm allows for compact installation without excessively increasing the space requirement in the enclosure or housing. The filter’s surface is designed to allow particles to be easily washed off during condensation, simplifying maintenance.

Technology Explained Simply

The filter operates as a mechanical particle filter, retaining fine particles from the air through its porous aluminium structure. The washable design is a key advantage: instead of regularly replacing the filter, it can be cleaned and reused after a certain operating period. This is especially beneficial in environments with heavy contamination, where the filter loads more quickly. Cleaning is done with water or degreasing agents, restoring the filter’s performance.

Compatibility and Accessories

The SK 3285810 is specifically designed for cooling units with article numbers 3184.837 / 3484.837, 3185.83x / 3485.83x, and 3185.53x / 3485.53x. These units include climate control systems, air-to-air heat exchangers, chillers, and climate control doors used in enclosures or industrial housings. Compatibility is ensured by the exact dimensions and specific construction.

Installation and Mounting

Mounting is done directly into the designated cooling units, with the filter’s dimensions precisely matching the installation holes and fastening points of the devices. No additional mounting aids or tools are required, as the filter is securely fixed by the cooling unit’s construction. Installation typically requires no tools, with the exact procedure depending on the specific cooling unit.

Operational Advantages

A key advantage of the SK 3285810 is its reusable filtering function. Unlike disposable filters, which must be discarded after loading, this filter can be cleaned and reused. This reduces operating costs and minimizes waste. The aluminium construction provides high mechanical stability and corrosion resistance, increasing the filter’s service life. Easy cleaning with water or degreasing agents makes maintenance efficient and cost-effective.

General
MaterialAluminium
Suitable for part no.3184.837 / 3484.837, 3185.83x / 3485.83x, 3185.53x / 3485.53x
Width327 mm
Height280 mm
Depth10 mm


Product data sheet
Datasheet for Rittal 3285810, EAN: 4028177709225

Questions & answers

What is the delivery time of Rittal 3285810 Metal filter for SK 3185830?

The article Rittal 3285810 Metal filter for SK 3185830 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3285810 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3285810 Metal filter for SK 3185830 always at the best possible price. We can give you a discount of 2% on Rittal 3285810 Metal filter for SK 3185830 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
