Rittal 3213340 SK air deflector, for SK 3185.xxx

Your rating:
Average rating
product review for Rittal 3213340 SK air deflector, for SK 3185.xxx
( 4 / 5 ) 1 ratings
Rittal 3213340
This image may differ from the desired article.
Rittal 3213340Rittal 3213340Rittal 3213340
-9% 57,27 EUR 62,86 EUR
( 68,15 EUR incl. VAT )
≈ £47.93  |  ≈ $62.94
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3213340 SK air deflector, for SK 3185.xxx
Datasheet:file_download Download
Lieske Part No.:1062842
Mfg Part No: 3213340
UPC/EAN: 4028177976290
Weight:0.46 kg
Type:SK 3213340

Product information for Rittal 3213340:

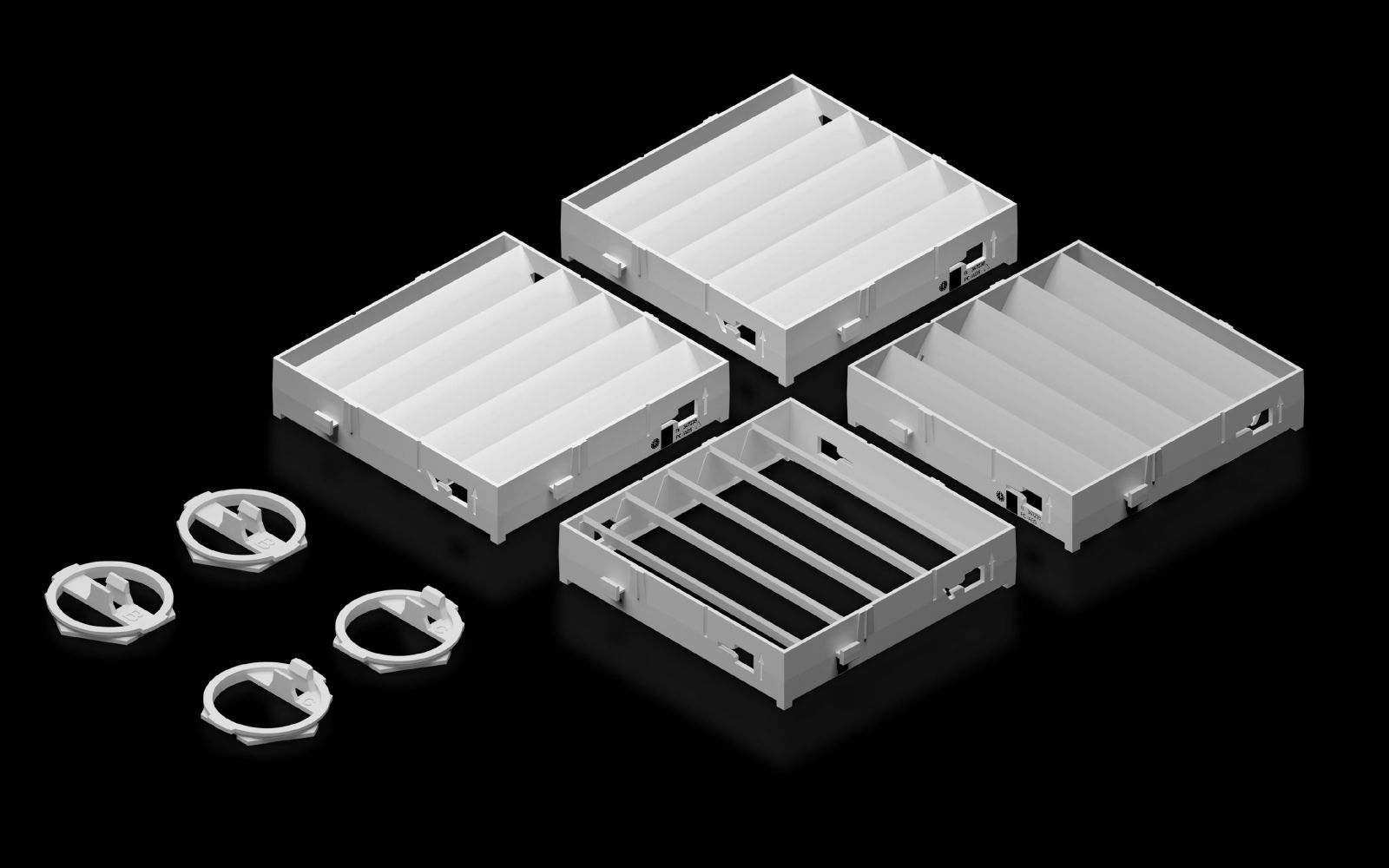

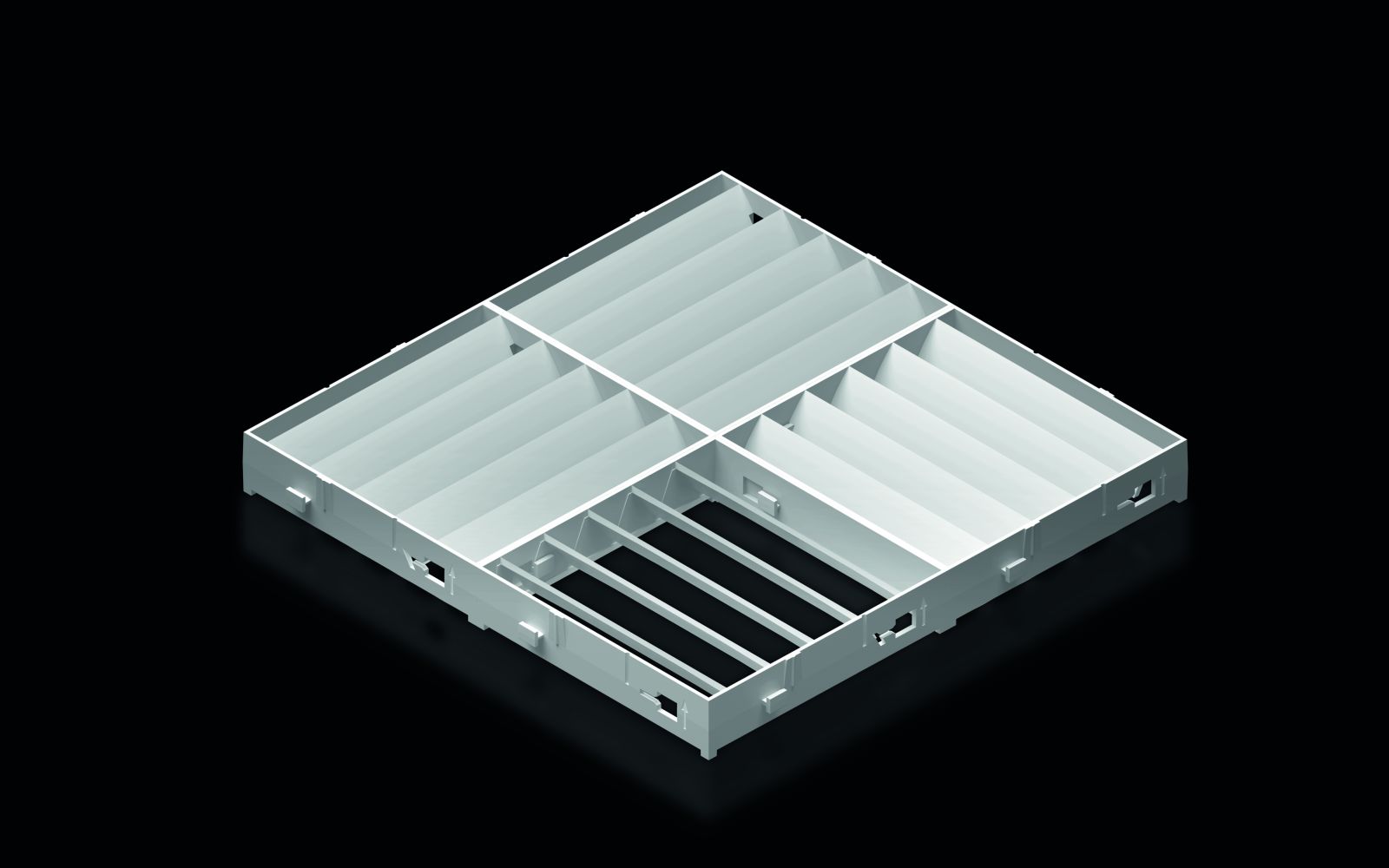

The Rittal SK 3213340 is an air deflector for wall-mounted cooling units of the Blue e+ series, specifically designed for targeted guidance of cold air within an enclosure. The component serves to optimize airflow, preventing hotspots, particularly when there is a high density of electrical components in the lower section of the enclosure. It is made of ABS, which, according to UL 94-V0, exhibits good flame resistance, and has the color RAL 7035. Dimensions are 280 mm width, 280 mm height, and 30 mm depth, allowing for minimal installation depth.

Applications
The air deflector is intended for wall-mounted cooling units of the Blue e+ series, particularly for part numbers 3184.837 / 3484.837, 3185.83x / 3485.83x, and 3185.530 / 3485.530. It is not suitable for the wall-mounted cooling unit Blue e+ Outdoor. Targeted cold air guidance is particularly beneficial in enclosures with dense component mounting, where uneven temperature distribution can lead to malfunctions. The air deflector is mounted in the lower section of the enclosure to direct cooled air precisely to areas with the highest heat generation.

Functions and Equipment in Detail
The SK 3213340 enables individual adjustment of the air outlet direction, allowing cold air to be precisely directed to the required area within the enclosure. Installation is tool-free and quick to retrofit, without requiring drilling. This significantly simplifies installation and maintenance, especially in existing systems. The low installation depth of 30 mm ensures the component can be easily integrated even in narrow enclosures.

Technology Explained Simply
The air deflector functions as a mechanical guide that directs the cold air exiting the cooling unit in a specific direction. This allows targeted control of airflow within the enclosure, improving the overall cooling performance of the system. The use of ABS with UL 94-V0 certification ensures high safety, as the material does not easily ignite when exposed to heat. The color RAL 7035 corresponds to a gray shade that visually blends well in typical industrial environments.

Compatibility and Accessories
The air deflector is specifically designed for wall-mounted cooling units Blue e+ with part numbers 3184.837 / 3484.837, 3185.83x / 3485.83x, and 3185.530 / 3485.530. It is not compatible with the Blue e+ Outdoor model. Combining it with these cooling units enables efficient and targeted climate control of the enclosure.

Installation and Mounting

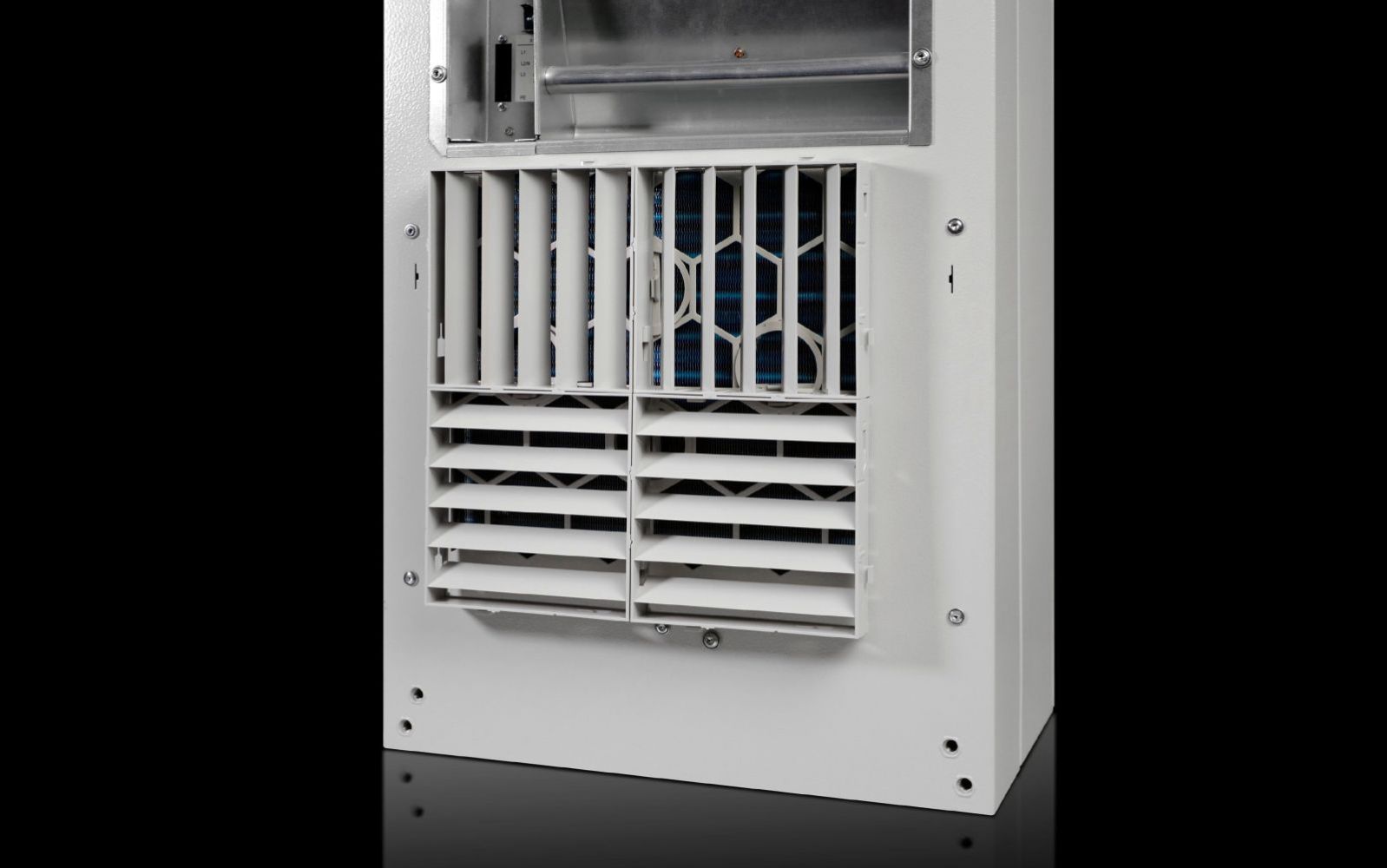

Installation is tool-free and does not require drilling. The air deflector is directly attached to the cooling unit, with detailed mounting instructions provided in the manufacturer’s datasheet. The low installation depth of 30 mm allows for easy integration into existing enclosure constructions. Mounting is quick and can be performed retroactively without needing to shut down or reconfigure the entire system.

Operational Advantages
Targeted cold air guidance results in more even temperature distribution within the enclosure, extending the lifespan of electrical components and reducing failures due to overheating. Tool-free mounting and quick retrofitting enhance serviceability. The low installation depth allows flexible positioning, even in narrow enclosures. The use of ABS with UL 94-V0 certification ensures high safety in operational environments.

The air deflector is available in a packaging unit of 1 piece. Net weight is 0.4 kg, gross weight 0.46 kg.

General
MaterialABS, flammability according to UL 94-V0
ColourRAL 7035
Suitable forWall-mounted cooling unit Blue e+
Note on part numberNot suitable for wall-mounted cooling unit Blue e+ Outdoor
Suitable for part no.3184.837 / 3484.837, 3185.83x / 3485.83x, 3185.530 / 3485.530
Width280 mm
Height280 mm
Depth30 mm


Product data sheet
Datasheet for Rittal 3213340, EAN: 4028177976290

Questions & answers

What is the delivery time of Rittal 3213340 SK air deflector, for SK 3185.xxx?

The article Rittal 3213340 SK air deflector, for SK 3185.xxx is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3213340 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3213340 SK air deflector, for SK 3185.xxx always at the best possible price. We can give you a discount of 2% on Rittal 3213340 SK air deflector, for SK 3185.xxx if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
