Rittal 2500300 LED motion sensor light,

Your rating:
Average rating
product review for Rittal 2500300 LED motion sensor light,
( 4.5 / 5 ) 82 ratings
Rittal 2500300
This image may differ from the desired article.
193,17 EUR 201,56 EUR
( 229,87 EUR incl. VAT )
≈ £165.74  |  ≈ $223.88
plus delivery charges: 53,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 2500300 LED motion sensor light,
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:153127
Mfg Part No: 2500300
UPC/EAN: 4028177809864
Weight:0.665 kg
Further System Accessories from RittalFurther products in category System Accessories All products of Rittal

Product information for Rittal 2500300:

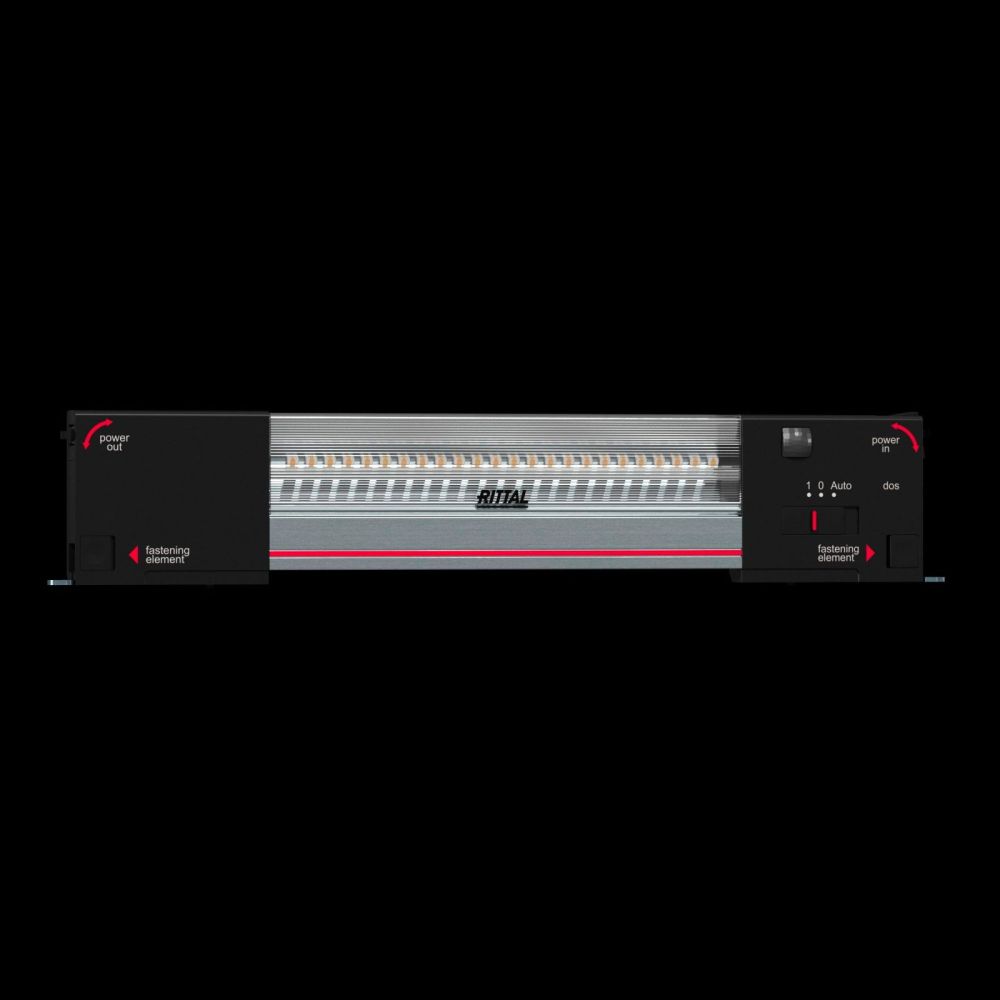

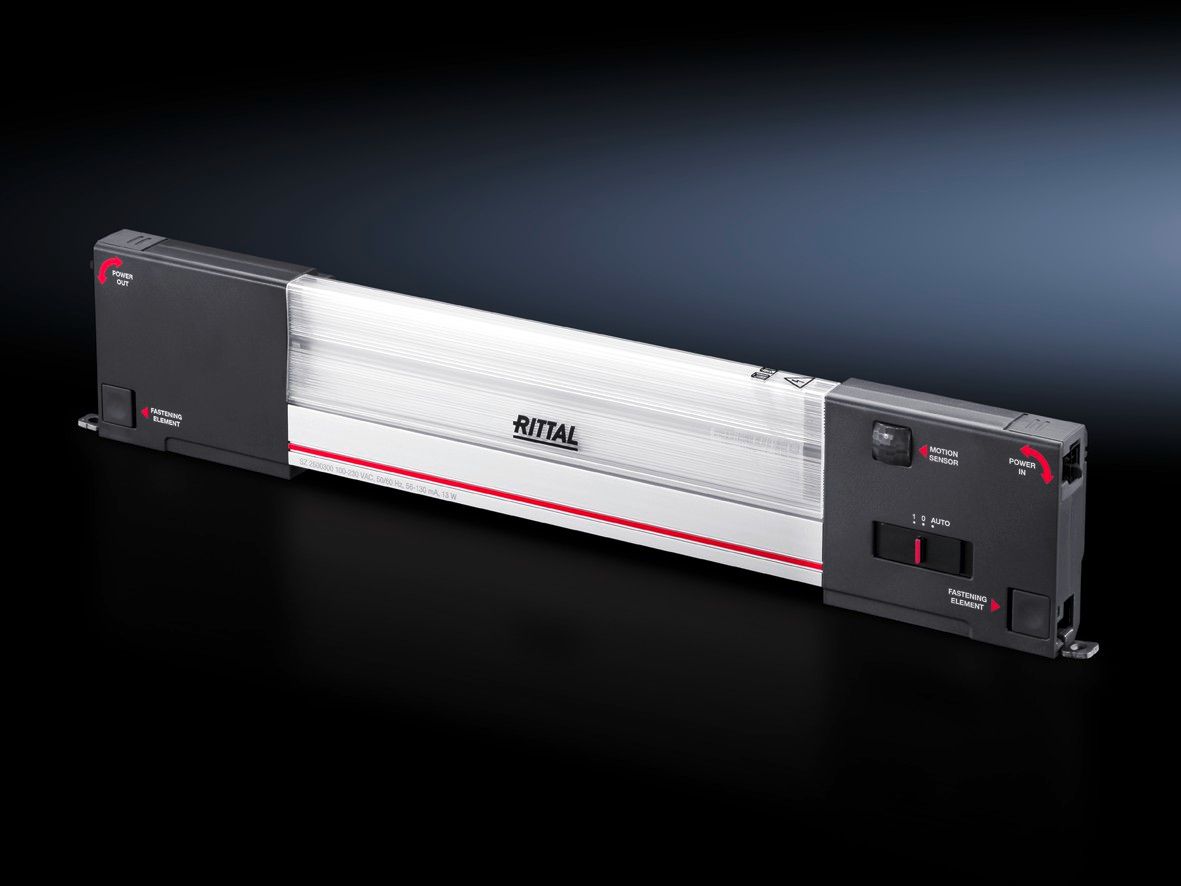

The Rittal SZ System LED Lamp with integrated motion sensor is a powerful and energy-efficient lighting solution for use in control cabinets. With a luminous flux of 1,200 lumens and a neutral white color temperature of 4,000 K, it ensures clear and even illumination even in complex control systems. The lamp turns on automatically upon detecting motion and turns off after inactivity, guaranteeing energy savings and convenient operation. Thanks to flexible mounting options – clip, screw, or magnetic mounting – the lamp can be quickly and easily installed on various cabinet profiles with a 25 mm grid. The 90° rotatable connectors, along with adjustable light direction and distribution, allow for individual adaptation to the specific installation situation.

The robust housing made of extruded aluminum and the durable cover made of polycarbonate provide high mechanical stability and long service life. The RAL 7016 anthracite gray finish ensures an attractive appearance that seamlessly integrates into industrial environments. The lamp is designed for operating temperatures from -20 °C to +55 °C and features a protection rating of IP 20, making it suitable for use in enclosed control cabinets. The operating voltage ranges from 100 V to 240 V, making the lamp universally applicable. The protection class II (double insulated) and integrated surge protection ensure additional safety during operation.

Technical Data
  • Product: SZ System LED Lamp
  • Luminous Flux: 1,200 lm
  • Color Temperature: 4000 K (neutral white)
  • Rated Power: 13 W
  • Operating Voltage: 100 V - 240 V, 1~, 50/60 Hz
  • Protection Rating: IP 20 (according to IEC 60 529)
  • Protection Class: II (double insulated)
  • Surge Protection: Protection Class II
  • Motion Sensor: Yes
  • Mounting Options: Screw, clip, or magnetic mounting (accessories)
  • Housing: Extruded aluminum
  • Cover: Polycarbonate
  • End Caps: PC-ABS
  • Power Supply: 3-pole
  • Through Wiring: 3-pole
  • Connectors: 90° rotatable
  • Installation: Directly on cabinet profile with 25 mm grid
  • Light Direction and Distribution: Adjustable
  • Dimensions (W x H x D): 437 x 85 x 37 mm
  • Net Weight: 0.488 kg
  • Gross Weight: 0.65 kg
  • Operating Temperature: -20 °C to +55 °C
  • Rated Impulse Voltage Withstand: 2500 V AC
  • Rated Insulation Voltage: 300 V AC
  • ETIM 8 / 9: EC000321
  • ECLASS 8.0: 27189241
  • Housing Color: RAL 7016 (anthracite gray)
  • Scope of Delivery: Includes mounting screws
  • Connection Accessories: Available separately
  • Packaging Unit: 1 piece
  • EAN: 4028177809864
  • Customs Tariff Number: 94054990

Type: SZ 2500300
