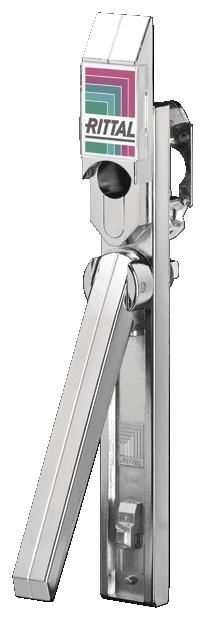

Rittal 2452000 SZ Ergoform-S lock system, Standard, matt nickel-plated
|
-10% 44,16 EUR 49,27 EUR |
|
|
( 52,55 EUR incl. VAT ) ≈ £37.98 | ≈ $50.34 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 521220 |
|---|---|
| Mfg Part No: | 2452000 |
| UPC/EAN: | 4028177023314 |
| Weight: | 0.516 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 2452000:
The unlocked handle folds down forwards, and the lock is opened by swivelling.
Material: Die-cast zinc
Surface finish: Powder-coated
Colour: Matt nickel-plated
Packs of: 1 pc(s).
EAN: 4028177023314
Customs tariff number: 83024110
eCl@ss 5.1: 27189220
eCl@ss 7.0: 27189266
ETIM 6.0: EC000327
Design: Standard
Note: Prepared for the installation of semi-cylinders with a total length of 40 or 45 mm (to DIN 18 252)
To fit: Enclosure type: AE with 3-point lock
Enclosure type: Based AE with 3-point lock
Enclosure type: Wall-mounted enclosure AE with 3-point lock
Enclosure type: TP pedestals
Enclosure type: One-piece console TP - Console door
Enclosure type: TP universal console
Enclosure type: AE with stainless steel 3-point lock
Enclosure type: Based on AE with stainless steel 3-point lock
Enclosure type: One-piece console - stainless steel door
Weight/pack: 0.5 kg
Type: SZ 2452000
Material: Die-cast zinc
Surface finish: Powder-coated
Colour: Matt nickel-plated
Packs of: 1 pc(s).
EAN: 4028177023314
Customs tariff number: 83024110
eCl@ss 5.1: 27189220
eCl@ss 7.0: 27189266
ETIM 6.0: EC000327
Design: Standard
Note: Prepared for the installation of semi-cylinders with a total length of 40 or 45 mm (to DIN 18 252)
To fit: Enclosure type: AE with 3-point lock
Enclosure type: Based AE with 3-point lock
Enclosure type: Wall-mounted enclosure AE with 3-point lock
Enclosure type: TP pedestals
Enclosure type: One-piece console TP - Console door
Enclosure type: TP universal console
Enclosure type: AE with stainless steel 3-point lock
Enclosure type: Based on AE with stainless steel 3-point lock
Enclosure type: One-piece console - stainless steel door
Weight/pack: 0.5 kg
Type: SZ 2452000
