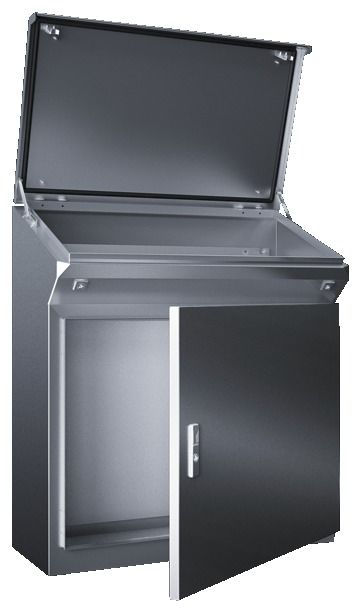

Rittal 2684600 TP One-piece console, WHD1: 800x960x400/T2: 480 mm, Stainless steel 1.4301
|
1.692,80 EUR 1.724,08 EUR |
|
|
( 2.014,43 EUR incl. VAT ) ≈ £1,455.81 | ≈ $1,929.79 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 227928 |
|---|---|
| Mfg Part No: | 2684600 |
| UPC/EAN: | 4028177031357 |
| Weight: | 65.2 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 2684600:
Material: Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm
Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm
Mounting plate: Sheet steel 3.0 mm
Surface finish: Enclosure, door, console lid and gland plates: Brushed, grain 120
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 12
Supply includes: Enclosure, solid back and sides
Door or double door at front, with locking rod
Console lid with lid stay and cam lock latched in the enclosure
Locks with double-bit insert
Gland plates, divided
Mounting plate
Product modification: As of the production date 01/03/15, the mounting plates in the stainless steel one-piece consoles are no longer delivered pre-assembled, but supplied loose on the outer rear wall of the enclosure. The benefit to you: This eliminates the need to dismantle the mounting plate for machining.
Packs of: 1 pc(s).
EAN: 4028177031357
Customs tariff number: 94032080
eCl@ss 5.1: 27180503
eCl@ss 7.0: 27180504
ETIM 6.0: EC000784
Dimensions: Width: 800 mm
Height: 960 mm
Depth (top): 480 mm
Depth (bottom): 400 mm
Mounting plate: Width: 730 mm
Height: 780 mm
Number of doors: 1
Weight/pack: 65.2 kg
Type: TP 2684600
Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm
Mounting plate: Sheet steel 3.0 mm
Surface finish: Enclosure, door, console lid and gland plates: Brushed, grain 120
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 12
Supply includes: Enclosure, solid back and sides
Door or double door at front, with locking rod
Console lid with lid stay and cam lock latched in the enclosure
Locks with double-bit insert
Gland plates, divided
Mounting plate
Product modification: As of the production date 01/03/15, the mounting plates in the stainless steel one-piece consoles are no longer delivered pre-assembled, but supplied loose on the outer rear wall of the enclosure. The benefit to you: This eliminates the need to dismantle the mounting plate for machining.
Packs of: 1 pc(s).
EAN: 4028177031357
Customs tariff number: 94032080
eCl@ss 5.1: 27180503
eCl@ss 7.0: 27180504
ETIM 6.0: EC000784
Dimensions: Width: 800 mm
Height: 960 mm
Depth (top): 480 mm
Depth (bottom): 400 mm
Mounting plate: Width: 730 mm
Height: 780 mm
Number of doors: 1
Weight/pack: 65.2 kg
Type: TP 2684600
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
