Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock,

Your rating:
Average rating
product review for Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock,
( 5 / 5 ) 1 ratings

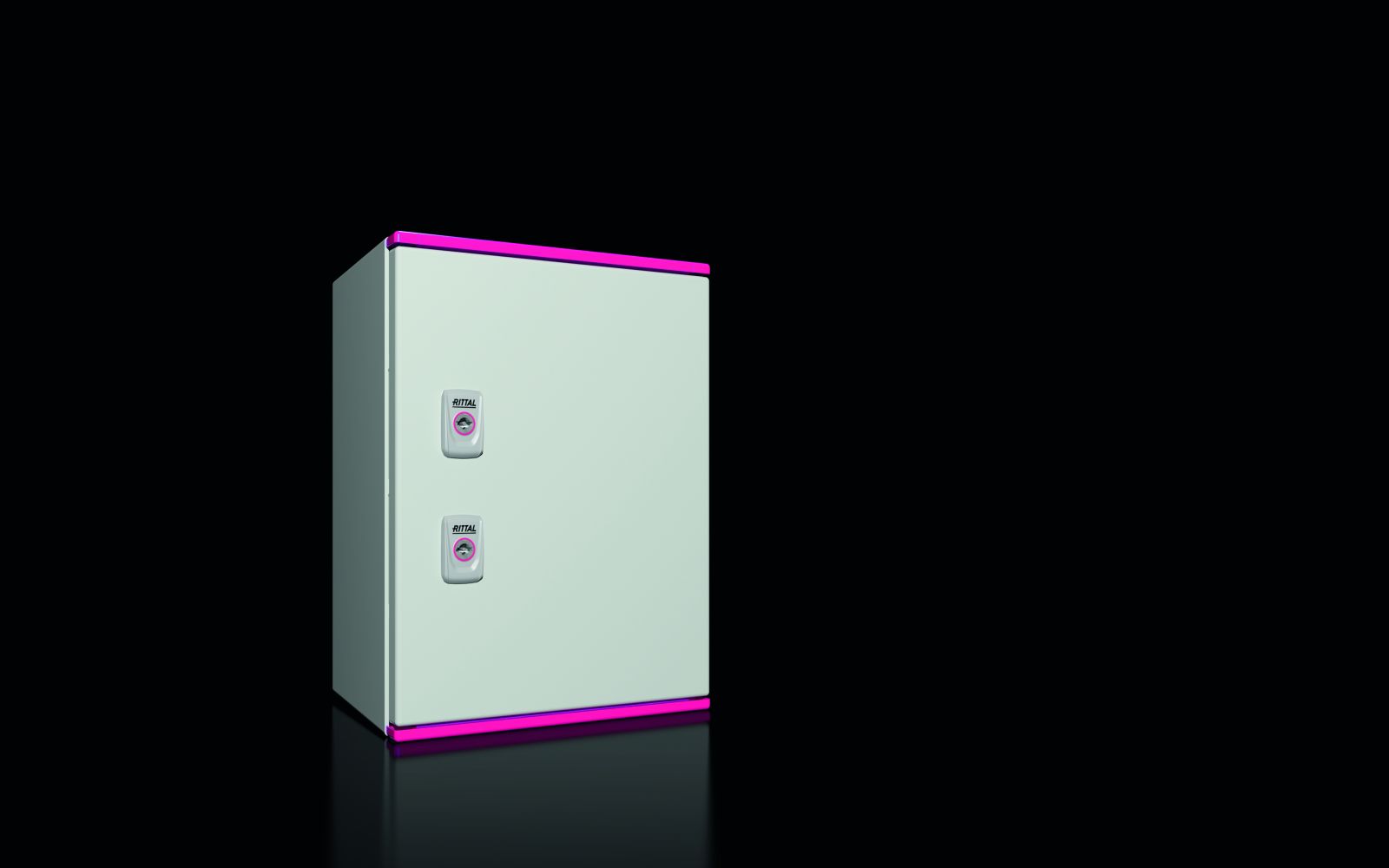

Rittal 1434000
This image may differ from the desired article.
Rittal 1434000Rittal 1434000Rittal 1434000Rittal 1434000Rittal 1434000Rittal 1434000Rittal 1434000Rittal 1434000
117,49 EUR 117,55 EUR
( 139,81 EUR incl. VAT )
≈ £98.34  |  ≈ $129.12
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock,
Datasheet:file_download Download
Lieske Part No.:1864898
Mfg Part No: 1434000
UPC/EAN: 4028177006409
Weight:6.96 kg
Type:AX 1434000

Product information for Rittal 1434000:

The Rittal AX 1434000 is a plastic enclosure from the AX series, designed for use in demanding environments. The enclosure has dimensions of 300 mm width, 400 mm height, and 200 mm depth and is supplied without a viewing window. It is made of glass-fibre-reinforced, unsaturated polyester (GFK), providing high mechanical strength and weather resistance. The surface is not post-treated and is integrally coloured, with the colour resembling RAL 7035. The door is fitted with a continuously foamed PU seal, ensuring a tight seal. The mounting plate, made of zinc-plated steel sheet with a material thickness of 2.5 mm, provides a stable mounting surface for internal components.

Applications
The enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The specified temperatures may be limited by the installed devices. It is designed for outdoor use, particularly under prolonged exposure to UV radiation and rain. In such cases, it is recommended to paint the surface with a PUR lacquer to avoid visual impairments.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a hinged door with a 3 mm double-barrel lock. The door hinge position is standard right-hand, but can be changed to left-hand. The door opens to an angle of up to 130°. A double seal is integrated at the top and bottom edges of the door as a rain protection strip, providing additional protection against precipitation. The mounting plate is equipped with grounding keyhole slots and dimension markings and is secured with Limbach nuts.

Technology Explained Simply
The enclosure is made as a single piece and offers high mechanical stability. It is self-extinguishing according to UL 94-V0 and halogen-free, improving fire behaviour properties. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under heavy spray water. The NEMA protection rating includes categories 1, 3R, 3RX, 4, 4X, and 12, confirming suitability for various environments, including damp and dusty areas. The type rating according to UL 50E corresponds to categories Type 1, 3R, 3RX, 4, 4X, and 12. Protection class II (at 1000 V AC) means the enclosure is double insulated and does not require earthing. The IK code IK09 indicates high mechanical resistance against impact and shock.

Compatibility and Accessories
The enclosure features numerous mounting domes internally, enabling individual internal assembly on a 25 mm grid. Screws for internal assembly are required. Universal brackets allow mounting of components such as system chassis. Compatible accessories include lock inserts made of zinc die-cast, mounting brackets, mounting plates in various sizes, AX Mini comfort handles, AS Multitool AX/VX 4052000, VX system chassis, AX mast mounting brackets, AX door latches, universal brackets, plastic screws for internal assembly, and wall mounting holders.

Mounting and Installation
Screws for internal assembly are required to mount components inside the enclosure. Mounting is done via the mounting domes in the enclosure and the mounting plate. The mounting plate is equipped with grounding keyhole slots and dimension markings. The door can be secured with a 3 mm double-barrel lock. The door hinge position is changeable, enabling flexible installation.

Operational Advantages
The enclosure offers high mechanical and chemical resistance, is weather-resistant, and is suitable for outdoor use. The integrated rain protection strip and double seal ensure reliable protection against precipitation. The high protection rating IP 66 and protection class II ensure a safe and reliable operating environment. The mounting domes inside the enclosure enable flexible and individual internal configuration. The surface is halogen-free and self-extinguishing, increasing safety. The mounting plate provides a stable mounting surface for internal components. The door can be opened up to 130°, facilitating access to internal units. The door hinge position is changeable, enabling flexible installation. The integrated door bottom seal ensures a secure door closure. QR codes on the enclosure, door, mounting plate, and nameplate enable unique identification and easy access to relevant product information, documentation, and traceability of individual parts.

General
Modelwithout viewing window
MaterialHousing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryHousing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width300 mm
Height400 mm
Depth200 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)205 mm x 325 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.


Product data sheet
Datasheet for Rittal 1434000, EAN: 4028177006409

Questions & answers

What is the delivery time of Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock, ?

The article Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1434000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock, always at the best possible price. We can give you a discount of 2% on Rittal 1434000 AX plastic enclosure, 300x400x200 mm, without lock, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
