PLANET 4+2 100FX SFP Industrial Ethernet Switch (-40~75

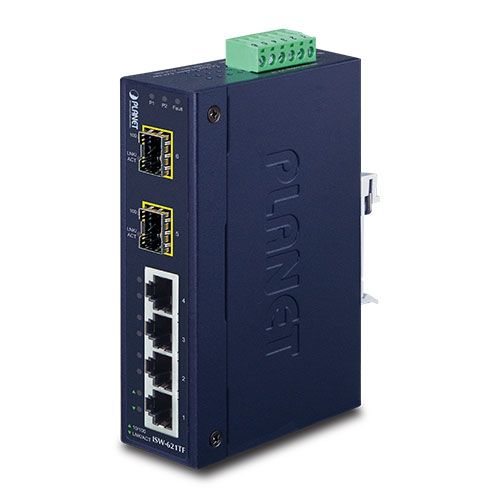

The PLANET ISW-621TF is a slim-form industrial Fast Ethernet switch with robust IP30 housing, designed to operate in wide temperature environments from -40 to 75 °C. Featuring four 10/100Base-TX RJ45 ports and two 100Base-FX SFP slots, it supports flexible fiber connections from 2 km (multimode) up to 60+ km (single-mode), making it ideal for transportation, surveillance, and industrial networking.

Features:

– IP30-rated metal enclosure for DIN-rail or wall mounting

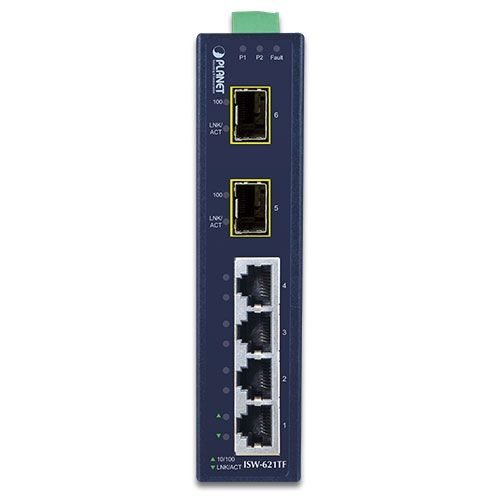

– 4 x 10/100Base-TX RJ45 ports with Auto-MDI/MDI-X
– 2 x 100Base-FX SFP slots (LC) for multimode/single-mode fiber modules
– Store-and-Forward architecture with 1.2 Gbps switching fabric
– 2K MAC address table, 1 Mbit frame buffer
– IEEE 802.3x full-duplex flow control and half-duplex backpressure
– Wide-range redundant power input: 12–48V DC with reverse polarity protection
– Relay output for power failure alert
– Operating temperature: -40 to 75 °C

Technical Specifications:

Physical Interfaces:
– 4 x 10/100Base-TX RJ45 with auto-negotiation
– 2 x 100Base-FX SFP slots (LC connector)

Cabling:

– Twisted-pair: Cat 3, 4, 5, 5e, 6 (max. 100m)
– Fiber:
– Multimode: 50/125µm or 62.5/125µm
– Single-mode: 9/125µm – up to 60+ km (depending on SFP module)

Power:

– Input: 12–48V DC, redundant with reverse polarity protection
– Max. Power Consumption: 16W / 54 BTU
– Alarm Relay: 1A @ 24V DC

Mechanical:

– Dimensions: 135 x 87.8 x 32 mm
– Weight: 442 g
– Mounting: DIN-rail or wall-mountable

Switching:

– Switch Fabric: 1.2 Gbps
– Throughput: 0.89 Mpps @ 64 bytes
– MAC Table: 2K entries
– Buffer Memory: 1 Mbit

Certifications & Protection:
– ESD Protection: 6KV, EFT Protection: 6KV
– IEC Testing: Drop, Shock, Vibration (IEC60068-2-32/27/6)
– Standards Compliance: IEEE 802.3 / 802.3u / 802.3x
– Environmental: -40 to 75 °C, 5–90% RH (non-condensing), FCC Part 15 Class A, CE
