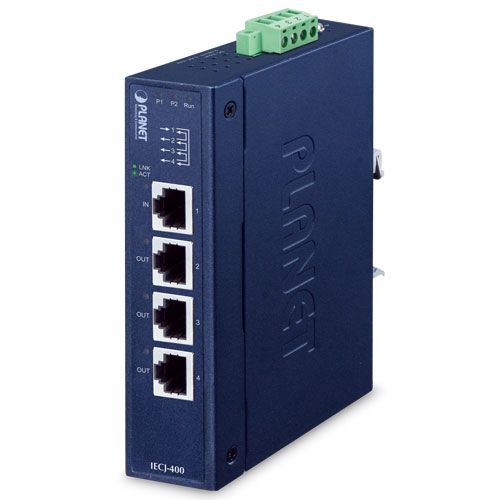

Planet Industrial 4-Port EtherCat Junction IECJ-400
|
163,29 EUR |
|
|
( 194,32 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196977 |
|---|---|
| Mfg Part No: | IECJ-400 |
| UPC/EAN: | 4711605287166 |
| Weight: | 0.12 kg |
Product information for Planet IECJ-400:
Thanks to EtherCAT Distributed Clock support, the IECJ-400 achieves precise timing synchronization with less than 1 µs accuracy. Its dual 9–48V DC power input with reverse polarity protection, combined with a rugged IP30 metal enclosure, allows the IECJ-400 to operate reliably in harsh environments from -40 to 75°C.
Technical Specifications (EN):
Communication Interface:

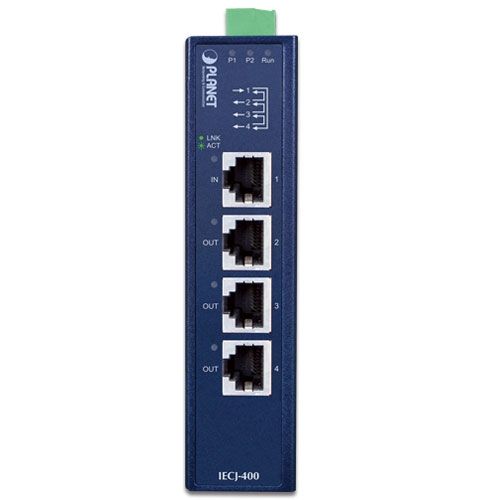

- 4 x 100BASE-TX RJ45 ports (1 IN, 3 OUT)
- Max. distance between stations: 100 m
- Data medium: Shielded Ethernet cable (Cat5 or higher)
- Protocol: EtherCAT
- Synchronization: EtherCAT Distributed Clock support (<1 µs precision)
Power Supply:

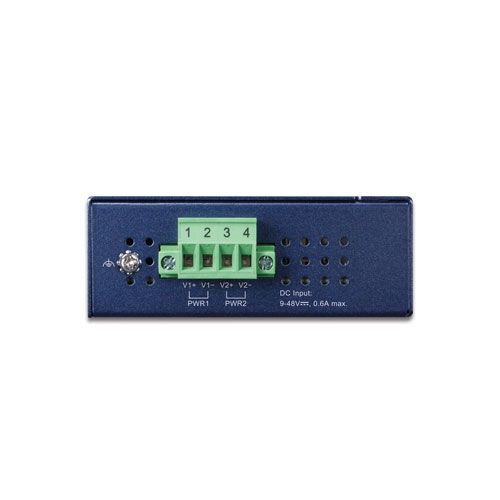

- Input voltage: Dual 9–48V DC
- Redundant power input with reverse polarity protection
- Power consumption: Max. 2.44W
Mechanical:
- Enclosure: IP30-rated metal case
- Dimensions: 32 x 87.8 x 135 mm
- Weight: 383 g
- Mounting: DIN-rail or wall mount
Environmental:
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5–95% (non-condensing)
Key Features:
- Supports EtherCAT Distributed Clock (DC) mode
- Verified by EtherCAT Conformance Test Tool
- LED indicators for real-time connection status
- Ideal for building modular EtherCAT star topologies in factory automation and process control systems
