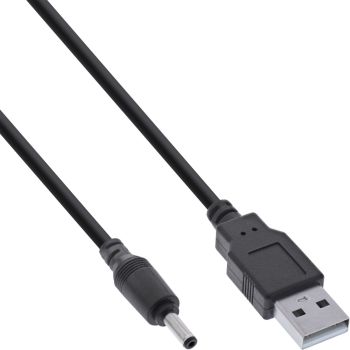

InLine® USB DC power adapter cable, USB A plug to DC 3.5x1.35mm 3m content_copy

USB to DC cable 3.5 x 1.35 mm for 5 V power supplyDirect power supply via USB: Reliably supplies devices with a 3.5 x 1.35 mm DC connector with 5 V via USB, ideal for flexible power solutions without an additional power supply unit.
High compatibility: Suitable for many devices with a 3.5 x 1.35 mm DC barrel connector and defined polarity (positive inside, negative outside) for safe operation.
Flexible use: Enables operation via USB power adapters, power banks or other USB power sources for versatile everyday applications.
Powerful and reliable: Supports up to 3 A at 5 V with a maximum power output of 15 W for a stable power supply to compatible devices.
Practical adapter cable: Ideal as a replacement or extension for existing power solutions with a USB to DC connection for small electronic devices.
This USB to DC cable enables the simple power supply of electronic devices with a 3.5 x 1.35 mm DC connector via a USB interface. It connects a USB Type-A plug to a matching DC barrel plug and provides a reliable solution for devices with a 5 V input voltage.
Safe operation is ensured by the defined polarity, with the positive terminal on the inside and the negative terminal on the outside. The cable is ideal for use with existing USB power sources such as power adaptors or power banks. This allows existing power supply solutions to be flexibly expanded or replaced.
With a power rating of up to 15 W at 5 V and 3 A, the cable provides sufficient power for many compact devices. The design supports stable power transmission for typical applications in small electronics.
The USB to DC adapter cable is a practical solution for everyday use when devices with a DC connection need to be powered via USB.
Connector: USB Type-A plug to DC barrel plug 3.5 x 1.35 mm
Voltage: 5 V DC
Current: max. 3 A
Power: max. 15 W
Polarity: positive inside, negative outside
Cable type: AWG 28
Lengths: 1 m, 2 m, 3 m

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Male
Cable length	3 m
Connector 1	USB A
Connector 2	3.5 x 1.35 mm
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Other features
Dimensions (WxDxH)	15 x 3000 x 10 mm
Packaging data
Package width	90 mm
Package depth	130 mm
Package height	20 mm
Package weight	73 g
Power
Input voltage	5 V
Input current	3 A
Technical data
Type	Y-cable, gold plated contacts
Article width	1.50cm
Storage temperature	-20 - 60°C
Height packaging	0.020m
Operation temperature	0 - 50°C
Diameter	AWG 28
USB specification	USB 2.0
Article height	1.00cm
Width packaging	0.090m
Length packaging	0.130m
Side B	DC plug 3.5/1.35mm
Article length	300.00cm
Length	3m
Shielding	Unshielded
Side A	USB-A male
Packaging volume	0.0003m³
Net weight	0.070kg
Weight	0.073kg
Gold plated contacts
UL
Weight & dimensions
Width	15 mm
Depth	3000 mm
Height	10 mm
Weight	70 g

---
