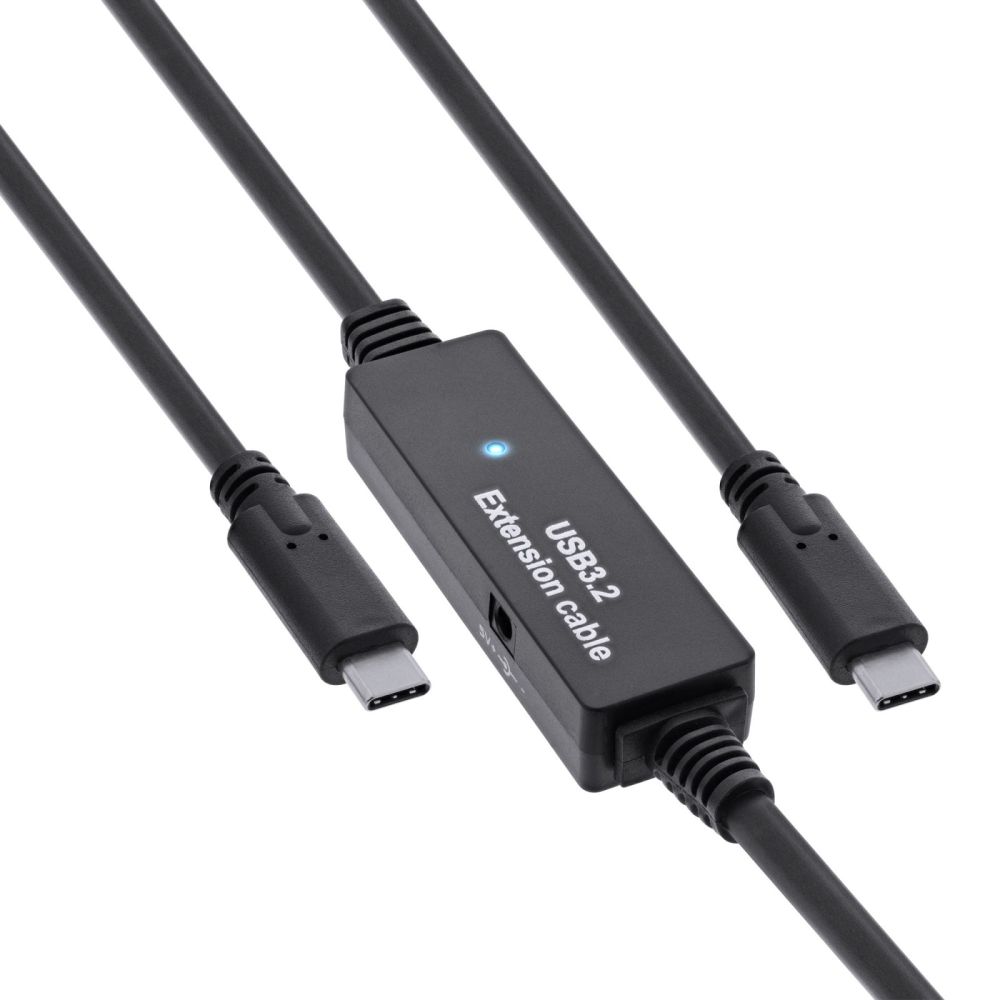

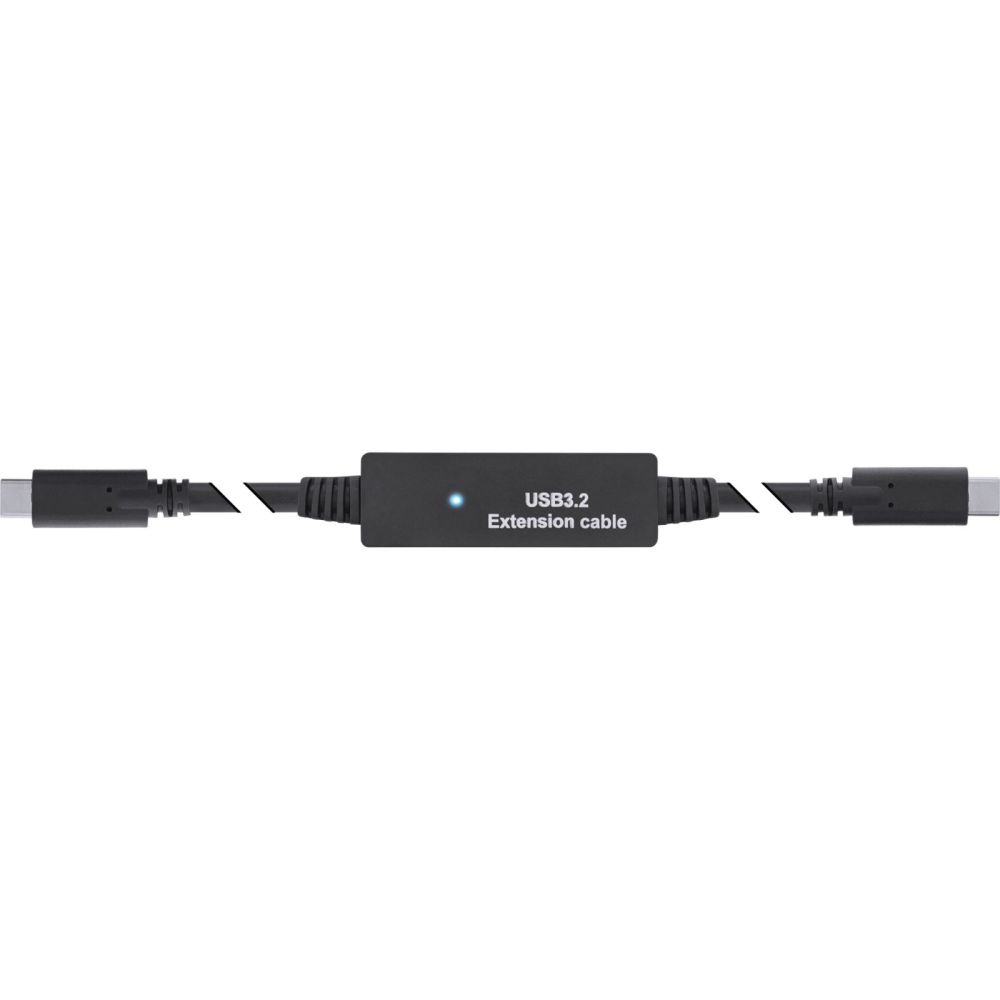

InLine® USB 3.2 Gen.1 active cable, USB-C plug to USB-C plug, black, 5m content_copy

Active signal amplification: Integrated electronics ensure stable USB-C connections over long distances without data loss.
High transfer rate: USB 3.2 Gen.1 standard enables data transfer at up to 5 Gb/s for fast and secure working.
Universal compatibility: Works with docking stations, monitors, external SSDs, cameras, audio interfaces, and other USB-C devices.
Reliable and simple: Plug & play capable, no driver installation required.
Optional power supply: Variants with power supply offer additional stability for long cable lengths or power-hungry devices.
The InLine USB 3.2 Gen.1 active cable was developed to enable a reliable and fast connection between two USB-C devices, even over longer distances. Thanks to the integrated signal amplification, transmissions remain stable even when the distance between the devices is several meters.
With a data transfer rate of up to 5 Gb/s, the cable is suitable for use with monitors, docking stations, hard drives, cameras, audio interfaces, or streaming equipment. The active electronics automatically compensate for signal loss and ensure consistent data quality.
Versions with a power supply additionally support the power supply of demanding devices. The robust design with plastic housing and universal USB-C compatibility make the cable a future-proof solution.
Connectors: USB-C plug to USB-C plug
Standard: USB 3.2 Gen.1 (5 Gb/s)
Signal processing: Active electronics with signal amplification
Convenience: Plug & Play, hot-swap compatible
Color: Black
Material: Plastic
10 m and 15 m variants: With plug-in power supply for additional power supply
Power supply: AC 100-240 V, 50-60 Hz, DC 5 V / 1 A (max. 5 W)
Operating system support: Windows 7 or higher, macOS 10 or higher
Note: Not cascadable

Features
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB A
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
Cable type	Round cable
Product colour	Black
Plug and Play
Logistics data
Package volume	1400 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Box
Package width	125 mm
Package depth	220 mm
Package height	50 mm
Package weight	311 g
Power
Input voltage	100 - 240 V
Input current (max)	0.3 A
Output voltage	5 V
Output current (max)	1 A
Technical data
Width packaging	0.125m
Height packaging	0.050m
Side A	USB-C male
Length packaging	0.220m
Article length	500.00cm
Side B	USB-C male
Type	USB 3.2 Gen.1
Packaging volume	0.0014m³
Article width	2.20cm
Weight	0.311kg
Outer diameter	5.5mm
Article height	1.40cm
USB specification	USB 3.2 Gen.1
Length	5m
Net weight	0.225kg
Data transmission rate	5Gb/s
Variant	Active cable
Gold plated contacts
Weight & dimensions
Cable length	5 m
Width	22 mm
Depth	5000 mm
Height	14 mm
Weight	225 g
Dimensions (WxDxH)	22 x 5000 x 14 mm

---
