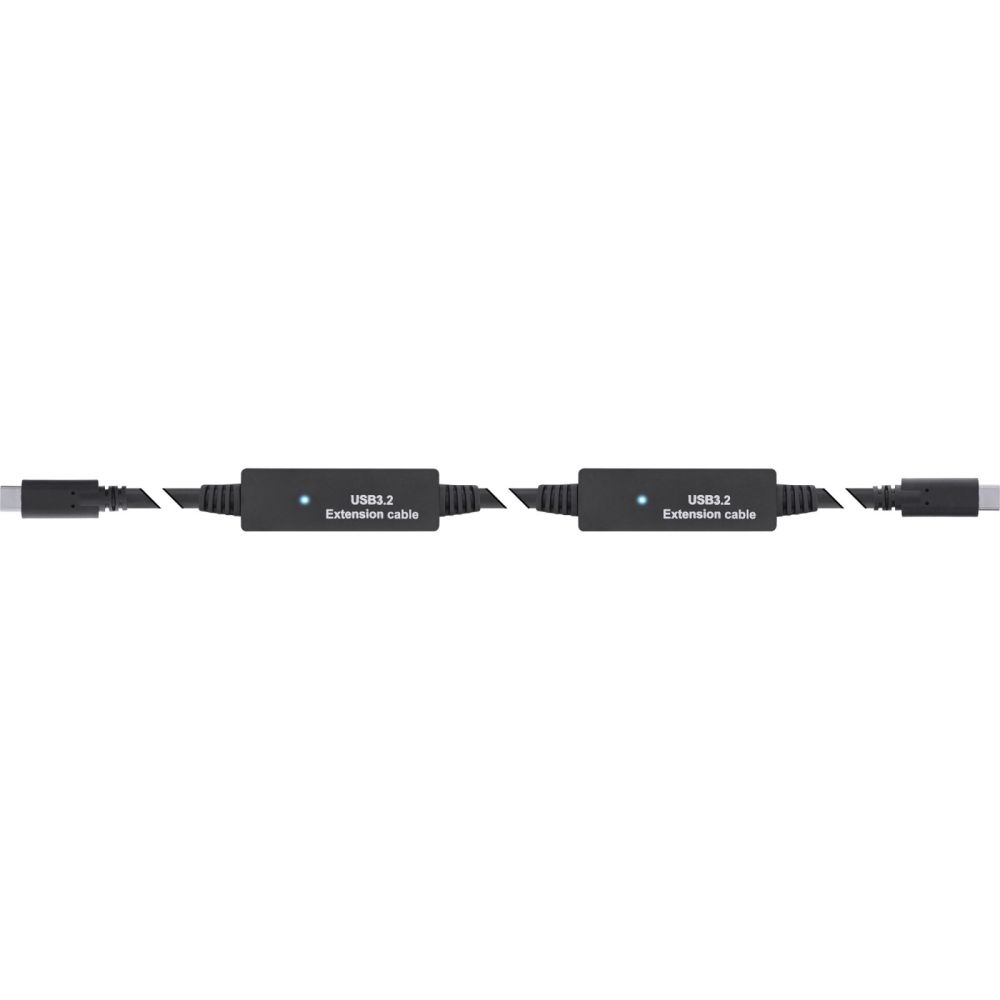

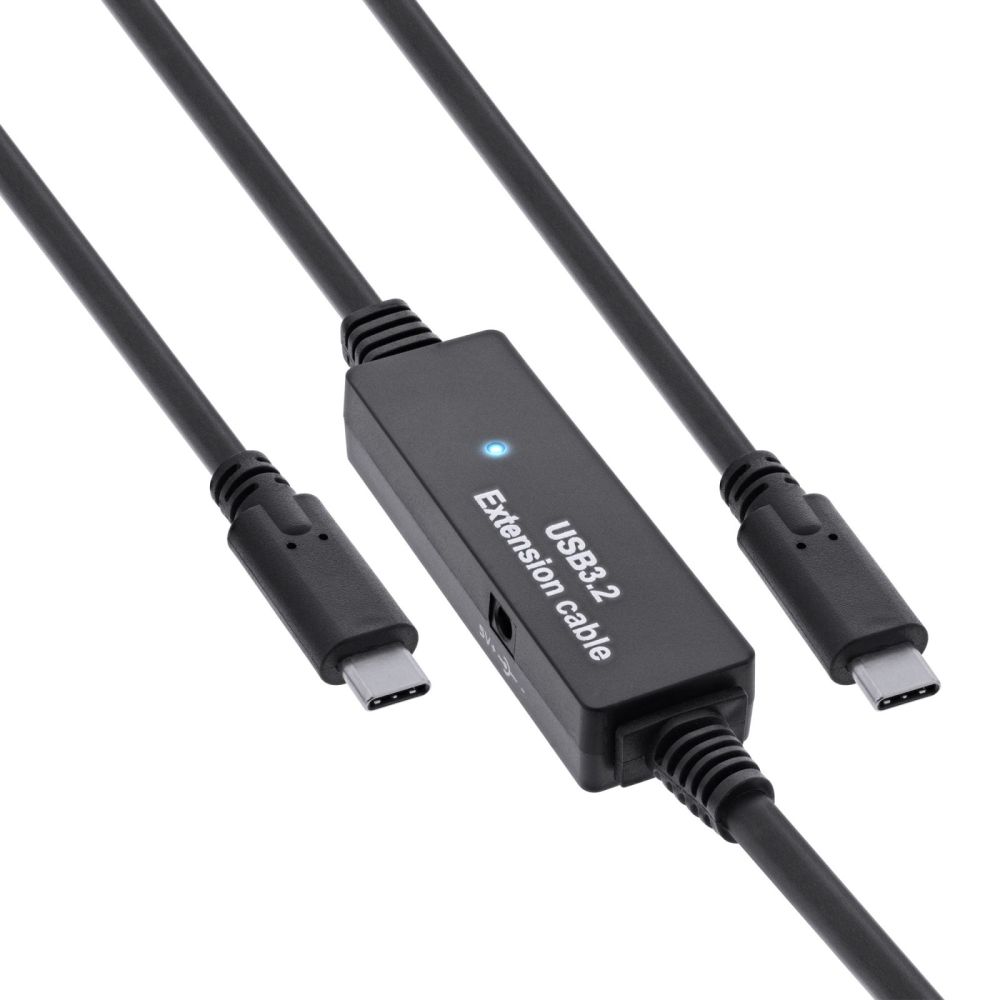

InLine® USB 3.2 Gen.1 active cable, USB-C plug to USB-C plug, black, 15m content_copy

Active signal amplification: Integrated electronics ensure stable USB-C connections over long distances without data loss.
High transfer rate: USB 3.2 Gen.1 standard enables data transfer at up to 5 Gb/s for fast and secure working.
Universal compatibility: Works with docking stations, monitors, external SSDs, cameras, audio interfaces, and other USB-C devices.
Reliable and simple: Plug & play capable, no driver installation required.
Optional power supply: Variants with power supply offer additional stability for long cable lengths or power-hungry devices.
The InLine USB 3.2 Gen.1 active cable was developed to enable a reliable and fast connection between two USB-C devices, even over longer distances. Thanks to the integrated signal amplification, transmissions remain stable even when the distance between the devices is several meters.
With a data transfer rate of up to 5 Gb/s, the cable is suitable for use with monitors, docking stations, hard drives, cameras, audio interfaces, or streaming equipment. The active electronics automatically compensate for signal loss and ensure consistent data quality.
Versions with a power supply additionally support the power supply of demanding devices. The robust design with plastic housing and universal USB-C compatibility make the cable a future-proof solution.
Connectors: USB-C plug to USB-C plug
Standard: USB 3.2 Gen.1 (5 Gb/s)
Signal processing: Active electronics with signal amplification
Convenience: Plug & Play, hot-swap compatible
Color: Black
Material: Plastic

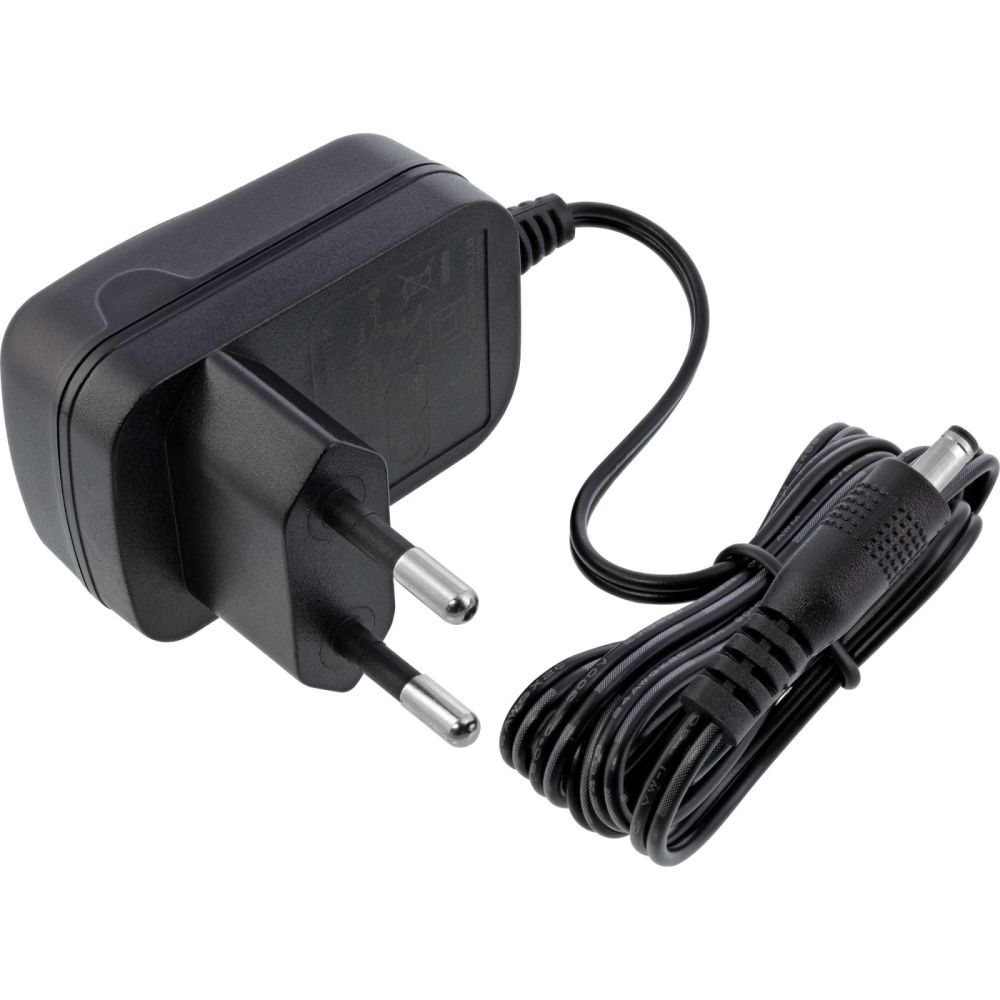

10 m and 15 m variants: With plug-in power supply for additional power supply
Power supply: AC 100-240 V, 50-60 Hz, DC 5 V / 1 A (max. 5 W)
Operating system support: Windows 7 or higher, macOS 10 or higher
Note: Not cascadable

Features
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
Cable type	Round cable
Product colour	Black
Plug and Play
Logistics data
Package volume	3100 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Box
Package width	147 mm
Package depth	290 mm
Package height	72 mm
Package weight	835 g
Power
Input voltage	100 - 240 V
Input current (max)	0.3 A
Output voltage	5 V
Output current (max)	1 A
Technical data
Net weight	0.722kg
Data transmission rate	5Gb/s
Length	15m
USB specification	USB 3.2 Gen.1
Packaging volume	0.0031m³
Variant	Active cable
Side B	USB-C male
Type	USB 3.2 Gen.1
Width packaging	0.147m
Side A	USB-C male
Weight	0.835kg
Article height	1.50cm
Outer diameter	5.5mm
Article width	2.40cm
Height packaging	0.072m
Length packaging	0.290m
Article length	1500.00cm
Gold plated contacts
Weight & dimensions
Cable length	15 m
Width	24 mm
Depth	15000 mm
Height	15 mm
Weight	722 g
Dimensions (WxDxH)	24 x 15000 x 15 mm

---
