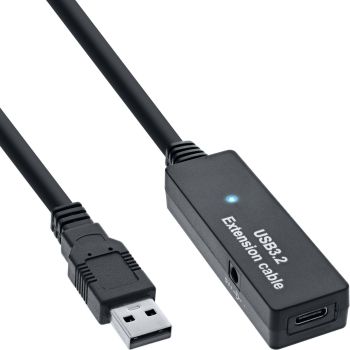

InLine® USB 3.2 Gen.1 active extension, USB-A male to USB-C female, 5m content_copy

The powerful active USB 3.2 Gen.1 extension cable from InLine is the ideal solution to move USB ports from inaccessible places to the desired position. Long distances of up to 15 meters can be bridged without loss or interference thanks to the integrated electronics. The USB extension is used for hard drives, printers, webcams, headsets, mice, keyboards and other USB devices. The data transfer rate of up to 5 Gb/s enables lightning-fast and reliable data transfer. For extensions of 10 meters and longer, we recommend using the included plug-in power supply.
USB 3.2 Gen.1 compatible
Active USB 3.2 Gen.1 cable with integrated electronics for optimum signal transmission
Data transfer rate up to 5 Gb/s
Hot-swap Plug and Play compatible, can be used during operation
USB-A male to USB-C female
Housing: plastic
Colour: black
Supports operating systems from Windows 7 and MacOS 10 and newer
Note: This article is not cascadable, can not be extended by more active extensions
With power supply: AC 100-240V, 50/60Hz, DC 5.0V/1.0A (max. 5.0W)
External plug-in power supply unit data:
Input voltage: 100-240V AC
Input AC frequency: 50/60 Hz, 0.3 A
Output voltage: 5.0 V DC
Output current: max. 1.0 A
Output power: 5.0 W
Average efficiency during operation: 75.59 %
Power consumption at no load: 0.075 W

Features
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
Cable type	Round cable
Product colour	Black
Logistics data
Package volume	1400 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Hanging box
Package width	125 mm
Package depth	220 mm
Package height	50 mm
Package weight	314 g
Power
Input voltage	100 - 240 V
Input current (max)	0.3 A
Output voltage	5 V
Output current (max)	1 A
Technical data
USB specification	USB 3.2 Gen.1
Side B	USB-C female
Design	Round cable
Net weight	0.228kg
Operation temperature	0 - 50°C
Type	USB 3.2 Gen.1
Weight	0.314kg
Length packaging	0.220m
Article length	500.00cm
Packaging volume	0.0014m³
Article width	2.20cm
Length	5m
Variant	Active cable
Storage temperature	-20 - 60°C
Height packaging	0.050m
Width packaging	0.125m
Side A	USB-A male
Outer diameter	5.5mm
Article height	1.40cm
Data transmission rate	5Gb/s
UL
Gold plated contacts
Weight & dimensions
Cable length	5 m
Width	22 mm
Depth	5000 mm
Height	14 mm
Weight	228 g
Dimensions (WxDxH)	22 x 5000 x 14 mm

---
