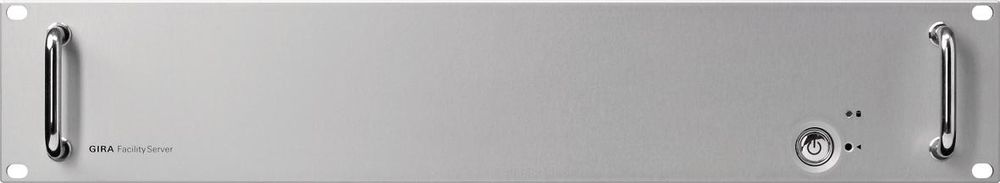

Gira 207500 2075 Facilitiyserver 00, INSTABUS KNX / EIB

KNX / EIB FacilityServer Gira KNX / EIB system Gira Facility Gateway server for the KNX / EIB installation, tailored to the high demands of the commercial area. With the Gira Facility Server to allow intelligent systems and Gebaeudegewerke network with each other and control the entire KNX / EIB installation centrally from a PC to control and program. By connecting the Gira Facility Server to the Internet access and monitoring of buildings and plant technology from outside are also possible. The Gira Facility Server acts as a data server for about parent facility management systems, which it provides for the evaluation of stored energy consumption and operational data. The Gira facility offers the complete range of the Gira Home Server, but is equipped for use in the commercial sector with increased storage capacity. So that you can store much bigger amounts of data and complex extensive visualizations. Several Gira Facility Server can be networked to connect buildings together also spatially separated from one another: Local and about secondary applications can be combined. Due to the software architecture of the facility server is protected against attacks from the Internet. The high safety standard is supplemented inter alia by an authentication system that can be queried in the phone number, user name and PIN. The different security levels can be, depending on the access environment individually configured. Some other features: - Updatefaehig.- Panel
22,9 cm ( 9 inch ). Rack For here is included a
22,9 cm ( 9 inch )contain insert with aluminum bezel. Can also be used as a stand-alone device. - Management of 2 users. Multiple login using a user name possible. - Archiving projects with your own content such as eg floor plans, etc. - Cyclic / triggered data recording (eg Temperaturverlaeufe, operating hours, levels). Graphical representation. - Graphical user interface: visualization of buildings or Geraetezustaenden with freely positionable icons and texts. Leave your own images and menu structures for each user group. - Evaluation of IP cameras, such as Mobotix: Recording of images and representation in visualization. Transmission of image data by e-mail and FTP. There are country-specific requirements to be considered, especially protocol-specific information and standards in communications (eg ISDN, SMS, etc.). - Export of data or alarm records in Excel format, CSV, HTML, XML. - Mathematical functions (such as basic arithmetic operations). - Save / recall of light scenes. - Timers, weekly program, holiday calendar. - Fault messages, measured values ​​and sensor or Aktorzustaende transferable by SMS and email. Acknowledgment about EIB or phone. - Switching via phone call. - Self-learning presence simulation. - Remote programming via network, Internet, dial-up connection. - Sending of ASCII texts on the information display 2 - IP Communication to other products that generate or edit the IP telegrams to control. - Low wear. - Graphical logic editor: Allows eg project about cross-copying of block groups, creating as many Worksheets. About 8 logic blocks. - Import and export of global libraries. - Communication objects: data from ETS by taking over OPC file. Import and export of communication objects as a CSV file. - Universal clock: Several switching points per clock possible. Using wildcards in day, month, year. Activation / deactivation over communication object. With Astro and random function. - Backup / restore of retentive. -
4-byte EIB texts: Evaluation by comparison with a text string. Use in SMS, email, status page. - Receipt of IP messages: Specification of an address range, extracting
4-byte EIB texts, assignment to
4-byte EIB texts. - SNMP: reading and numerical
4-byte EIB texts.Set of numeric and integer values ​​and texts. Send SNMP traps over FacilityServer command. Optional cold start trap when starting the server facility. - Operation / Status about Agfeo telephone system. - Bus access via EIBnet / IP protocol. - Evaluation of web-based IP devices (read / write). - IETS Server: Remote programming of EIB systems (secure operating gewaehrleistet). Release of iETS function over communication object. FacilityServer runs during the next programming over iETS without limitations placed. Cycles before be executed. Process image remains current.- More information: www.gira.de / facilityserver - Technical specifications can vary depending on the version and changed werden.Lieferumfang: - Gira FacilityServer with temperaturgefuehrtem Luefter in
22,9 cm ( 9 inch )rack (48.26 cm) with aluminum front cover - with power supply Connection line - ISDN line - Null modem cable - Quick Start Guide System Requirements for operating devices: the Internet browser of possible control devices must at least 4 HTML, Java Script
.
, CSS and Dynamic HTML formatting. In WAP, the WAP standard is
.
supported, but it can not all functionalities, such as the Universal time clock to be served. Connection possibilities: -
Serial interface -
RJ-45 network connector,
/
Mbit Ethernet - At the KNX / EIB system over IP router
3, USB data interface flush-
7, USB data interface REG
8 (USB HID Compliant available from expert software version 2.4 or higher).- ISDN modem integrated (
x EURO-ISDN-S RJ45 for connection to the telephone system NT or S) Commissioning software: -. FacilityServer expert for operating systems Windows XP, including Internet Explorer Version 6 .- Taking over the ETS group addresses from ETS 2 and ETS 3 - Integration of graphics programs. Efficient service for the electrical industry - networking of EIB and IP expertise with system integrators EIB manufacturing electrical specialist companies can in commissioning and planning of Gira products Gebaeudesystemtechnik as benefit eg Gira Home Server from working with system integrators . For more information or to host closest system integrator ask at +49 () 2
95/6 2 -
94 or below about the search function on the Internet: www.gira.de / system integrators Gira KNX / EIB training for FacilityServer +49 () 2
95/6 2 -
7
Fax +49 () 2
95/6 2 -

Schulung@gira.de 7, e-mail or Internet www.gira.de protection: IP 2 Operating temperature: C to +45 C Power consumption: about
5 W Dimensions: W x H x D 483 x 88 x 27 mm Type: 2 75 Quantity:
ST.
