Gira 216700 IP router KNX/EIB REG

Your rating:
Average rating
product review for Gira 216700 IP router KNX/EIB REG
( 4.8 / 5 ) 11 ratings

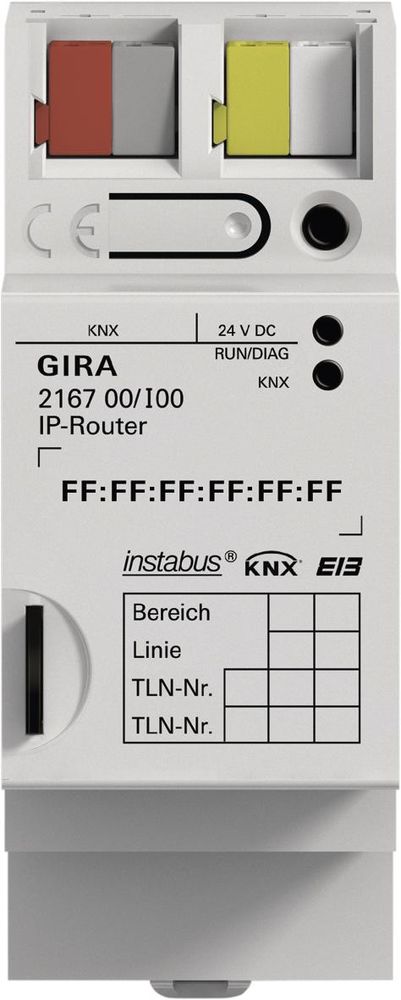

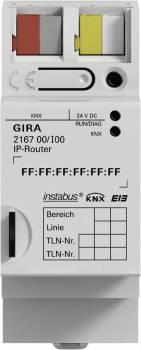

Gira 216700
This image may differ from the desired article.
Gira 216700Gira 216700
418,30 EUR
( 497,78 EUR incl. VAT )
≈ £350.12  |  ≈ $459.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Gira 216700 IP router KNX/EIB REG
Datasheet:file_download Download
Lieske Part No.:519322
Mfg Part No: 216700
UPC/EAN: 4010337084440
Weight:0.14 kg
Type:216700
Graduated prices net
From piecesPrice per pieces
4396,34 EUR
8374,38 EUR
12352,42 EUR
16330,46 EUR

Product information for Gira 216700:

The Gira IP Router for KNX is a network device for integrating KNX bus lines into data networks using the Internet Protocol (IP). It serves as an interface between KNX systems and an Ethernet network, enabling communication over long distances or between different parts of a building. The router is used in combination with the Gira HomeServer or Gira FacilityServer to enable control and monitoring of home automation systems via IP-based interfaces.

Applications

The IP Router is designed for connecting multiple KNX lines over IP networks. It can function as a line or area coupler to connect different subsystems within a building. Additionally, it assumes the role of a KNX time master, ensuring synchronization of devices within the system. The recording of KNX telegrams onto a microSD card enables logging of system activities, which is useful for maintenance and fault diagnosis.

Functions and Equipment in Detail

The router filters and forwards KNX telegrams selectively, organizing and optimizing communication within the network. It supports up to four tunneling connections simultaneously, enabling concurrent use by multiple clients or systems. Communication takes place via Ethernet 10/100 BaseT (10/100 Mbit/s) and is supported by the protocols ARP, ICMP, IGMP, DHCP, AutoIP, UDP/IP (Core, Routing, Tunneling, Device Management). The integrated reliable communication function ensures automatic correction of telegram losses in WLAN, enhancing transmission stability.

Technology Explained Simply

The router operates with the KNXnet/IP protocol and is compatible with the TP1-256 bus medium. Power supply is provided via external DC 24 to 30 V or via an unregulated output from Gira power supplies for KNX. IP communication is via an RJ45 connector, while the KNX connection is implemented via a connection and branch terminal. Communication security is ensured by support for KNX Data Secure and KNX IP Secure, enabling tamper-protected data transmission within the KNX system.

Compatibility and Accessories

The IP Router is designed for use with Gira HomeServer and Gira FacilityServer. For power supply, external DC 24 V or unregulated outputs from Gira power supplies for KNX are suitable. Suitable accessories include power supplies with 300 mA and 700 mA for door communication, which are suitable for powering the router. The use of the Gira Project Assistant (GPA) is required to perform firmware updates. The GPA is available free of charge in the Gira download area.

Mounting and Installation

The router is mounted in REG format, enabling installation in standard installation switch boxes. The width is 2 module units. Mounting takes place in a suitable switch box, with ambient temperature ranging from 0 °C to +45 °C. The protection rating IP21 protects against finger contact and vertical dripping water, making it suitable for indoor use.

Operational Advantages

Using the IP Router enables flexible and scalable integration of KNX systems into existing IP networks. Support for up to four tunneling connections and reliable communication increases system efficiency and stability. Logging telegrams onto a microSD card supports maintenance and diagnostics. Security functions KNX Data Secure and KNX IP Secure ensure tamper-protected communication. Compatibility with Gira HomeServer and FacilityServer enables centralized control and monitoring of home automation.

Functions and Technologies

The router’s functions include connecting KNX lines over IP networks, interfacing with Gira HomeServer or FacilityServer, filtering and forwarding telegrams, use as a line or area coupler, functioning as a KNX time master, recording telegrams onto a microSD card, supporting KNX Data Secure and KNX IP Secure, and enabling up to four tunneling connections simultaneously. Reliable communication ensures correction of telegram losses in WLAN. Power supply is via DC 24 to 30 V or via unregulated outputs from Gira power supplies. IP communication is via Ethernet 10/100 BaseT, and the microSD card can be up to 32 GB in size. Ambient temperature ranges from 0 °C to +45 °C. Protection rating IP21 protects against contact and vertical dripping water. Mounting is in REG format with a width of 2 module units. Connections include an RJ45 port for IP and a connection and branch terminal for KNX. Supported protocols are ARP, ICMP, IGMP, DHCP, AutoIP, UDP/IP (Core, Routing, Tunneling, Device Management). Firmware updates require the Gira Project Assistant (GPA), which is available free of charge.

General
Other bus systemsOther
ModelEthernet
Mounting methodDRA (DIN-rail adapter)
Width in number of modular spacings2
MaterialOther
Material qualityOther
Surface protectionOther
ColourOther
Degree of protection (IP)IP21
Bus system KNXyes
Bus system KNX radiono
Bus system radio frequentno
Bus system LONno
Bus system Powernetno
Radio frequent bidirectionalno
Transparentno
Bus connection includedyes
With label areayes
With LED indicationyes


Product data sheet
Datasheet for Gira 216700, EAN: 4010337084440
