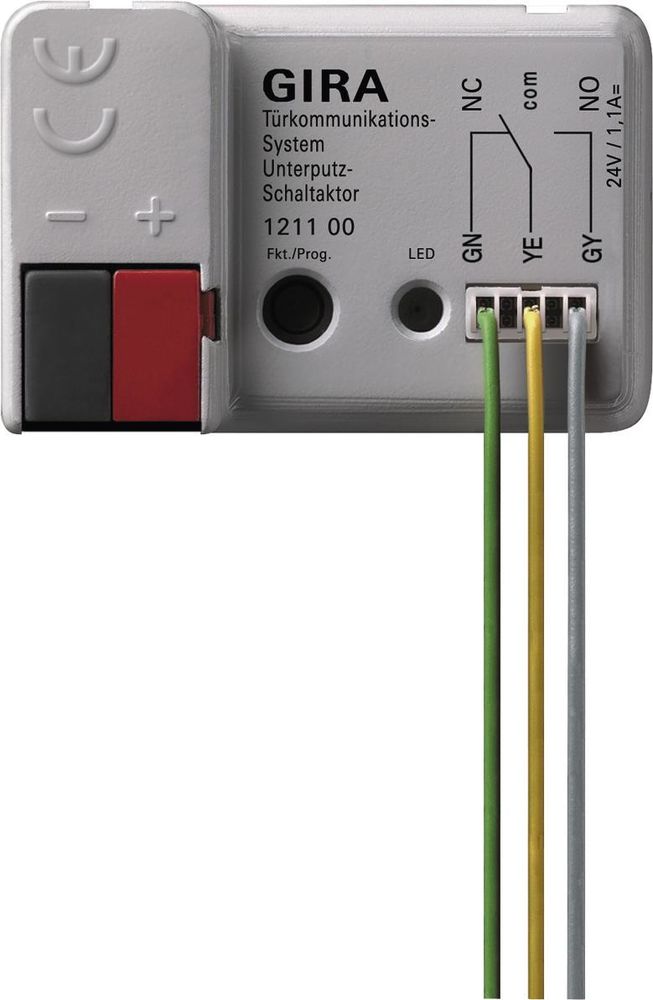

Gira 121100 switch UP , door communication content_copy

Flush door communication switching door communication system flush switch for activating on external gongs or other consumers about the Gira door communication bus. The switch has the Following Following product features: - Control of a potential-free switching contact (24 V SELV / 50 A to 1.6 A AC / DC) over the 2-wire bus. - The flush-mounted switch actuator is controlled by: the door at the home station and light keys, the floor-call button on the home station, the call button on the Tuerstation, the call button on the home station, the buttons on a phone (in Conjunction with the DCS-TC-gateway 1290 00), a floating button (in Conjunction with the door button communication interface 2x 1210 00). - The flush-mounted switch actuator is possibleness to operate in four different modes: Power, timer / sec timer. / Min and pulse - pulse function for controlling existing automatic staircase, - switching time depends on the selected function adjustable from 1 s to 10 s or 1 min to 10 min - LED display for programming, feature selection and timing. - The flush- mounted switch actuator! Focus for installation in a deep switch box (60 mm deep) behind a door communication bus coupler. Power supply: 26 V DC 2 V (bus) voltage-free relay contact 50 A to 1.6 A at 24 V AC / DC SELV number einlernbarer Call button: max. 16 Dimensions: L x W x H 43 x 28 x 15 mm Temperature range: -5 C to +50 C Type: 121100


Quantity: 1 unit.
Type: 121100
