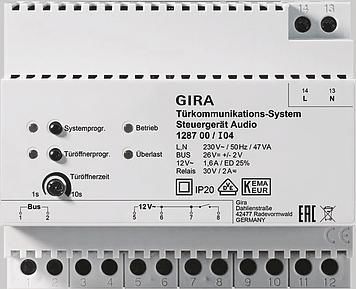

Gira 128700 Control Unit AUDIO 1287 00,

Control unit Control unit REG audio door communication system for the supply of audio components of the Gira door communication bus. audiocontrol The unit has the Following Following product features: - supply of the polarized and short-circuit-proof 2-wire bus. - Selbstrueckstellende electronic short circuit and overload detection of the operating voltage and the bus lines. - Keys for system and Tueroeffnerprogrammierung.- LED indicators for operational status, overload, system programming and Tueroeffnerprogrammierung. - 12 V AC output (1 - 10 s) to power handelsueblichen door opener (max. 1 power consumption, 6 A / ED 25%). - permanent 12 V AC output to power DCS-TC-1290 00 gateways - relay output for switching a door opener with its own power supply. - Tueroeffnerschaltzeit Continuously from 1 s to 10 s einstellbar.Das Provided audio control unit for installation in sub-distribution. If this is not possible, use handelsueblichen mounted distributors.- This component is the establishment of Tuerkommunikationsanlagen with up to 70 Participants possibleness (eg 1 Ceiling Speaker, 5 expansion modules for built-in speaker, 68 home stations AP). primaer Voltage: 230 V AC, 50 Hz Secondary rated voltage. SELV 26 V DC 2 V Rated current 160 mA sec sec Continuous Load Current Rating 550 mA peak load (max. 5 s) Rated current sec Overload shutdown from 350 mA Screw: 0, 6 mm to 2.5 mm output door opener: 12 V AC, 1.6 A / 25% ED Relay Output: 30 V AC / DC, 2 A Gesamtleitungslaenge: max. 700 m from the control unit to farthest Leitungslaenge Participants: max. 300 m cable-0.8 mm Leitungslaenge from the control unit to farthest Participants: max. Cable 0.6 m with 170 mm Dimensions: DRA device with 6 modules Temperature range: -5 º C to +45 º C Protection type: IP 20 Type: 128700


Quantity: 1 unit.
Type: 1287 00
