Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey

Your rating:
Average rating
product review for Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey
( 4.5 / 5 ) 54 ratings

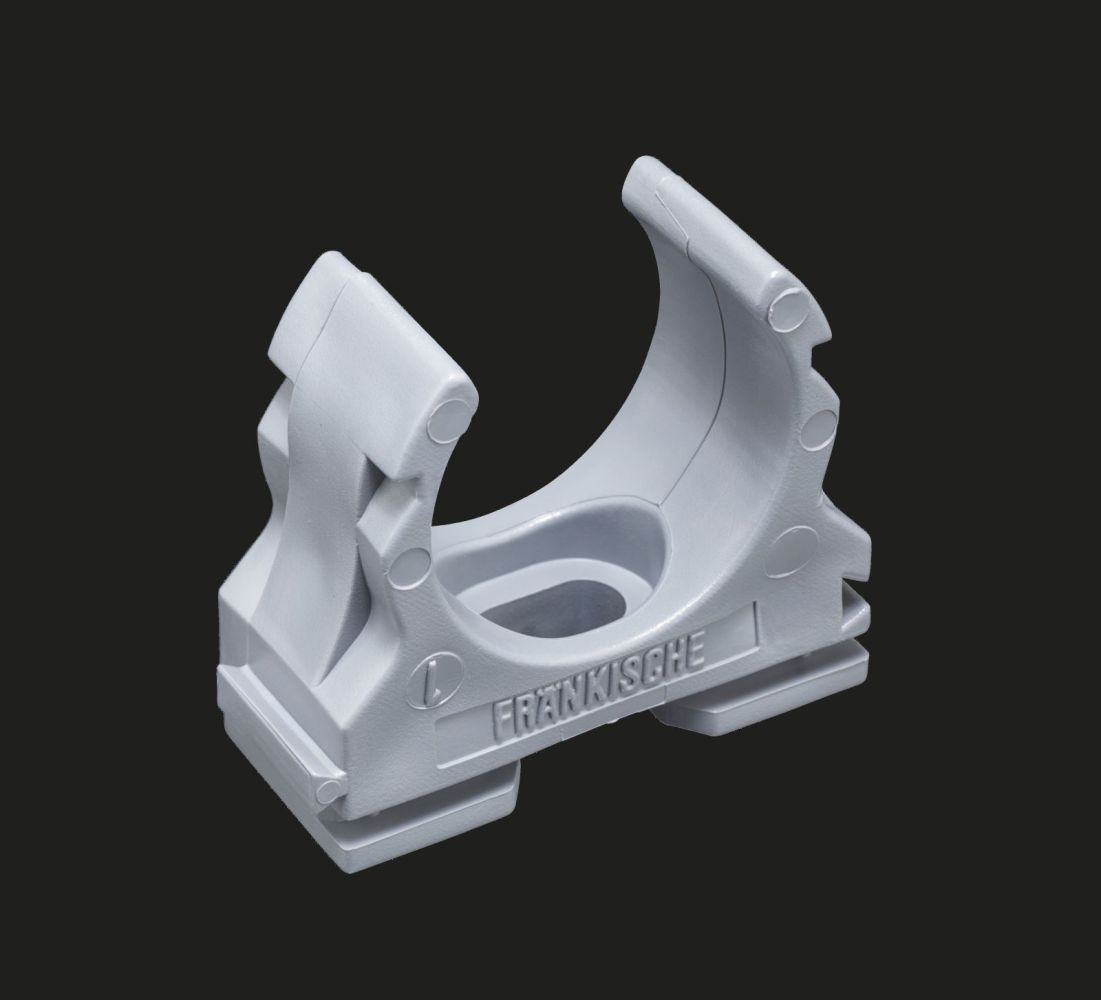

Fränkische Rohrwerke 22370020
This image may differ from the desired article.
Fränkische Rohrwerke 22370020Fränkische Rohrwerke 22370020Fränkische Rohrwerke 22370020
72,20 EUR 75,24 EUR
( 85,92 EUR incl. VAT )
≈ £60.43  |  ≈ $79.35
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 100 pieces
In Stock: >10 pieces
1x Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey
Datasheet:file_download Download
Lieske Part No.:825118
Mfg Part No: 22370020
UPC/EAN: 4013960180169
Weight:0.403 kg
Type:clipfix 20
Graduated prices net
From piecesPrice per pieces
663,54 EUR
1254,87 EUR
2446,21 EUR
3637,54 EUR

Product information for Fränkische Rohrwerke 22370020:

The clipfix 20 from Fränkische Rohrwerke is a plastic clamp made of polypropylene, manufactured in grey (RAL 7035). It is used for securing plastic conduit pipes, particularly the types isofix-EL-F, FPKu-EM-F, FPKu-ES-F, and all corrugated pipes. The clamp is non-flame-propagating and thus suitable for use in electrical installations where limited fire hazard is required. The clamp is specifically designed for mounting on a C-profile rail with a width of 10 mm, and can be mounted either side-by-side or stacked. This enables flexible and quick installation in electrical distributions and installation systems.

Applications
The clipfix 20 is primarily used in the field of electrical installation, where plastic pipes are used for routing electrical cables. It is particularly suitable for securing conduit pipes in indoor environments, for example in residential and commercial buildings, where clean and fast mounting is required. The clamp is available for nominal sizes 40, 50, and 63, and for these sizes, clipsib securing brackets are included in the delivery scope. These securing brackets support the stability of the fastening, especially for longer pipe sections.

Functions and Equipment in Detail
The clamp is made of polypropylene, a robust and durable plastic that is resistant to mechanical stress and environmental influences such as moisture or temperature fluctuations. The grey colour (RAL 7035) ensures visual harmony with other installation components. The clamp is non-flame-propagating, meaning it does not contribute to the spread of fire and self-extinguishes when ignited. This meets the requirements for components in electrical installations that must exhibit limited fire hazard.

Technology Explained Simply
The clipfix 20 is a clamp that, through its special design, enables secure and durable fastening of the pipe to the C-profile rail. The clamp is simply slipped over the pipe and fastened to the rail. Installation is tool-free, which speeds up the process. Clamp spacing is typically standardized, but must be reduced under special conditions such as vibration, high temperatures, overhead mounting, or high weight loads. In such cases, it is recommended to replace the plastic clamps with metal securing clamps (ASG-E) to ensure mechanical stability.

Compatibility and Accessories
The clipfix 20 is compatible with plastic conduit pipes isofix-EL-F, FPKu-EM-F, FPKu-ES-F, and all corrugated pipes. As accessories, clipsib securing brackets are included in the delivery scope for nominal sizes 40, 50, and 63. Additionally, suitable mounting clamps such as the BFM-BS M20 grey 6 mm or the 2955 M20 Quick-Clamp PP light grey RAL7035 can be used to supplement or reinforce the installation.

Mounting and Installation
The installation of the clipfix 20 is done by simply sliding the clamp over the pipe and then fastening it to the C-profile rail. The clamp can be mounted either side-by-side or stacked, allowing for flexible arrangement. The C-profile rail must have a width of 10 mm. Under extreme conditions, such as vibrations or high temperatures, reducing the clamp spacing or using metal securing clamps (ASG-E) is necessary to ensure mechanical strength.

Advantages in Operation
The clipfix 20 offers fast and tool-free installation, reducing installation time. The use of polypropylene ensures high mechanical stability and resistance to environmental influences. The non-flame-propagating property increases safety in electrical installations. Compatibility with various pipe types and the ability to mount clamps side-by-side or stacked increases flexibility in planning and executing installations. The integrated securing brackets for nominal sizes 40, 50, and 63 support the stability of the fastening, especially for longer pipe sections.

The item price shown refers to 100 pieces Fränkische Rohrwerke 22370020
General
MaterialPolypropylene
ColourGrey
Colour codeRAL 7035
Flame spreadnon-flame propagating
Compatibilityisofix-EL-F, FPKu-EM-F, FPKu-ES-F, conduit pipes
Mounting methodstackable and modular
Mounting railC-profile rail 10 mm
Accessoriesclipsib fuse holder (for nominal sizes 40, 50, 63)
Delivery form
Width30 mm
Height29 mm
Minimum quantity100
Pallet content16000
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityPolyethylene (PE)
Surface protectionOther
Max. number of tubes1
Mounting typeScrew hole
ColourGrey
ClosedNo
Suitable for protective hosesJa
TackableJa
With inlayNo
With wall sealNo
UV resistantNo


Product data sheet
Datasheet for Fränkische Rohrwerke 22370020, EAN: 4013960180169

Questions & answers

What is the delivery time of Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey ?

The article Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 22370020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey we can offer you a price of 63,54 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 22370020 Fränkische clipfix 20 plastic clamp grey is offered by us in a sales unit of 100 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
