Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit

Your rating:
Average rating
product review for Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit
( 4.5 / 5 ) 62 ratings

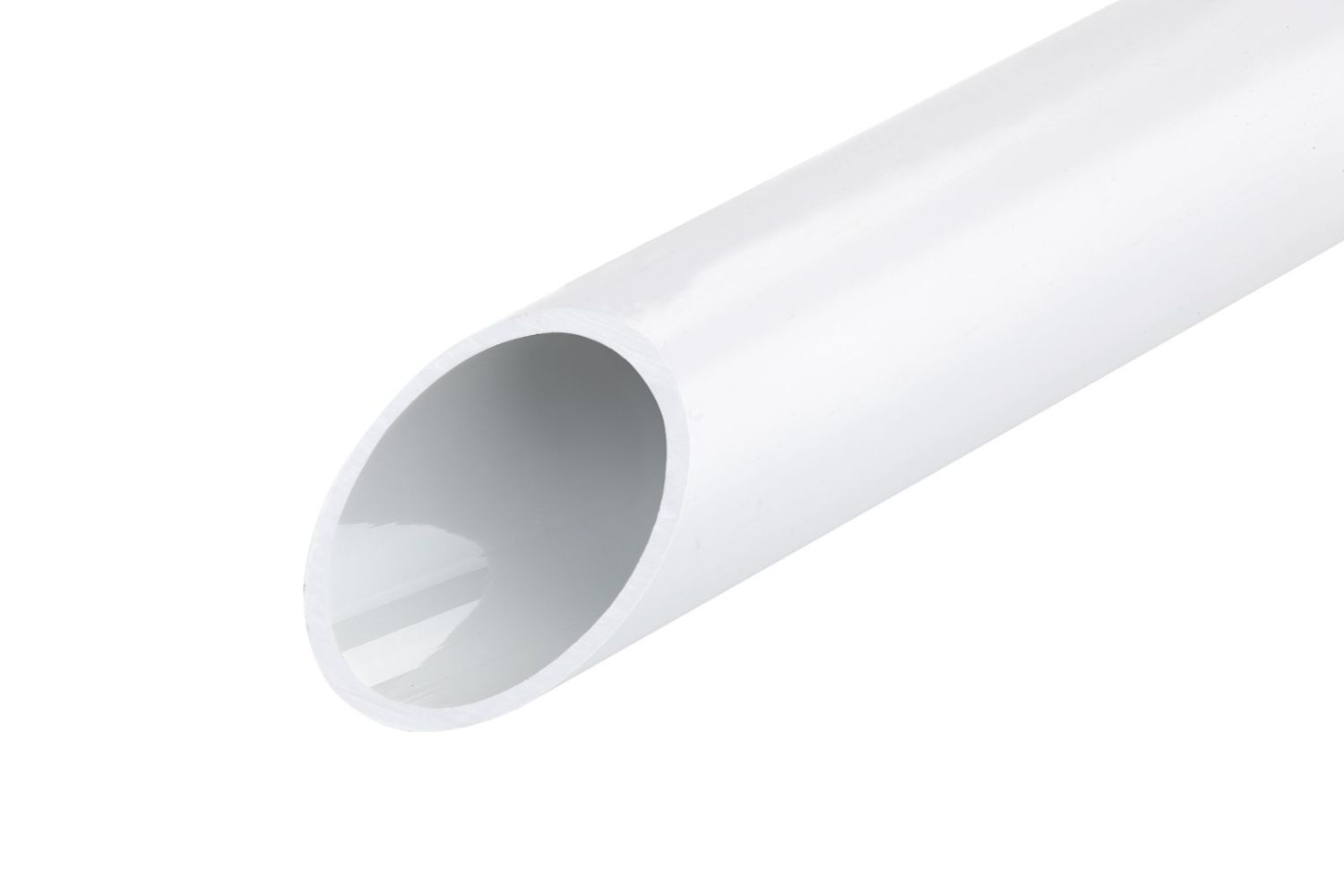

Fränkische Rohrwerke 22110020
This image may differ from the desired article.
Fränkische Rohrwerke 22110020Fränkische Rohrwerke 22110020Fränkische Rohrwerke 22110020
4,79 EUR 4,99 EUR
( 5,70 EUR incl. VAT )
≈ £4.01  |  ≈ $5.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 3 meters
In Stock: >100 meters
1x Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit
Datasheet:file_download Download
Lieske Part No.:428231
Mfg Part No: 22110020
UPC/EAN: 4013960179774
Weight:0.123 kg
Type:isofix-EL-F 20
Graduated prices net
From piecesPrice per meters
504,36 EUR
1003,93 EUR
2503,50 EUR
5003,07 EUR

Product information for Fränkische Rohrwerke 22110020:

The isofix-EL-F 20 from Fränkische Rohrwerke is a lightweight plastic pipe made of polyvinyl chloride (PVC), finished in grey (RAL 7035). It is supplied in straight lengths of 3 metres and features a one-sided formed socket, enabling easy connection with other pipe sections. The pipe is non-flame propagating and primarily intended for surface mounting under light requirements for pressure and mechanical strength. It is designed for indoor use, particularly in areas where simple and quick installation is required.

Applications
The pipe is suitable for surface mounting as well as concealed mounting. It can be installed on wood and in hollow walls, but not in concrete, screed, or ground. Use outdoors is not intended, as the material is not UV-resistant. The application conditions are limited to indoor environments with ambient temperatures between -5 °C and +60 °C. Chemical resistance includes resistance to exhaust gases, media containing hydrochloric acid and sulfuric acid, ammonia, gasoline, diesel fuel, fertilisers, vinegar, antifreeze, fruit acids, uric acid, heating oil, seawater, methanol, milk, mineral oil, oils, petroleum, propane, nitric acid, hydrochloric acid, sulfuric acid, turpentine, and detergents. It is not resistant to chlorine (gaseous, dry) and benzene.

Functions and Equipment in Detail
The isofix-EL-F 20 has an inner diameter of 18 mm and an outer diameter of 20 mm. It is rigid in bending behaviour, ensuring stable installation. The pressure resistance class according to EN 61386-1 is light (Class 2, 320 N), as is the impact resistance class. These values indicate use under low mechanical loads, for example in residential or office buildings. The pipe is not intended for machine and plant installations. The surface is not coated with a high-slip inner layer, which may require additional lubricants for cable installation.

Technology Explained Simply
The pipe complies with standards DIN EN 61386-1:2020 and DIN EN IEC 61386-21:2021, which define general and specific requirements for electrical installation pipe systems. The classification as light regarding pressure and impact resistance means it is suitable for applications with low mechanical stress. The PVC material ensures good electrical insulation and high chemical resistance against many substances commonly found indoors. The standard grey colour (RAL 7035) blends visually into many interior designs.

Compatibility and Accessories
Various accessories are available for connecting and securing the pipe. These include the plastic clamp clipfix 20 (article number 22370020), the plastic end cap E-Ku-E 20 in grey (25995020) and black (2599602), as well as the plastic push-fit socket SMSKu-E 20 (22250020). A plastic elbow, comparable to the Fränkische SBSKu-EM 20, allows installation in curves. These components are necessary for secure and neat installation, especially when connecting pipe sections or securing to substrates.

Installation and Mounting
Installation is typically done via surface or concealed routing. The one-sided formed socket allows for easy push-fit connections. Installation on wood or in hollow walls is possible, with securing using appropriate clamps. Installation in concrete, screed, or ground is not intended. The maximum operating temperature is +60 °C, the minimum temperature is -5 °C. Installation is for indoor use only; due to lack of UV resistance, outdoor installation is not recommended.

Operational Advantages
The isofix-EL-F 20 offers simple and quick installation, especially for surface mounting. The one-sided formed socket simplifies the connection of pipe sections. The use of PVC ensures high chemical resistance and electrical insulation. Conformity with DIN EN 61386-1 and DIN EN IEC 61386-21 ensures safety and quality. Installation in indoor environments, particularly in residential and office buildings, is ideal, as mechanical requirements are low and installation can be completed quickly. The use of suitable accessories such as clamps and end caps ensures a proper and durable installation.

The item price shown refers to 3 meters Fränkische Rohrwerke 22110020
Delivery form
Minimum quantity111
Pallet content4995
Base unit quantityMetre
Technical data
MaterialPolyvinyl chloride (PVC)
Bending strengthRigid
Pressure resistance class per EN 61386-1light (Class 2, 320 N)
Impact resistance class per EN 61386-1light (Class 2, 320 N)
Inner diameter18 mm
Outer diameter20 mm
ColourGrey
RAL-number7035
UV resistantNo
With sleeveJa
Flush-mounted installationJa
Surface mountingJa
Suitable for installation on woodJa
Suitable for hollow wall installationJa
Suitable for concrete installationNo
Machine and plant installationNo
Suitable for subsurface installation (screed))No
Outdoor installationNo
Suitable for underground installationNo
High conducting inner coatingNo


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Fränkische Rohrwerke 22110020, EAN: 4013960179774

Questions & answers

What is the delivery time of Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit ?

The article Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 22110020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 meters of Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit we can offer you a price of 4,36 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 22110020 Fränkische isofix-EL-F 20 lightweight plastic conduit is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
