Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible

Your rating:
Average rating
product review for Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible
( 4.5 / 5 ) 10 ratings

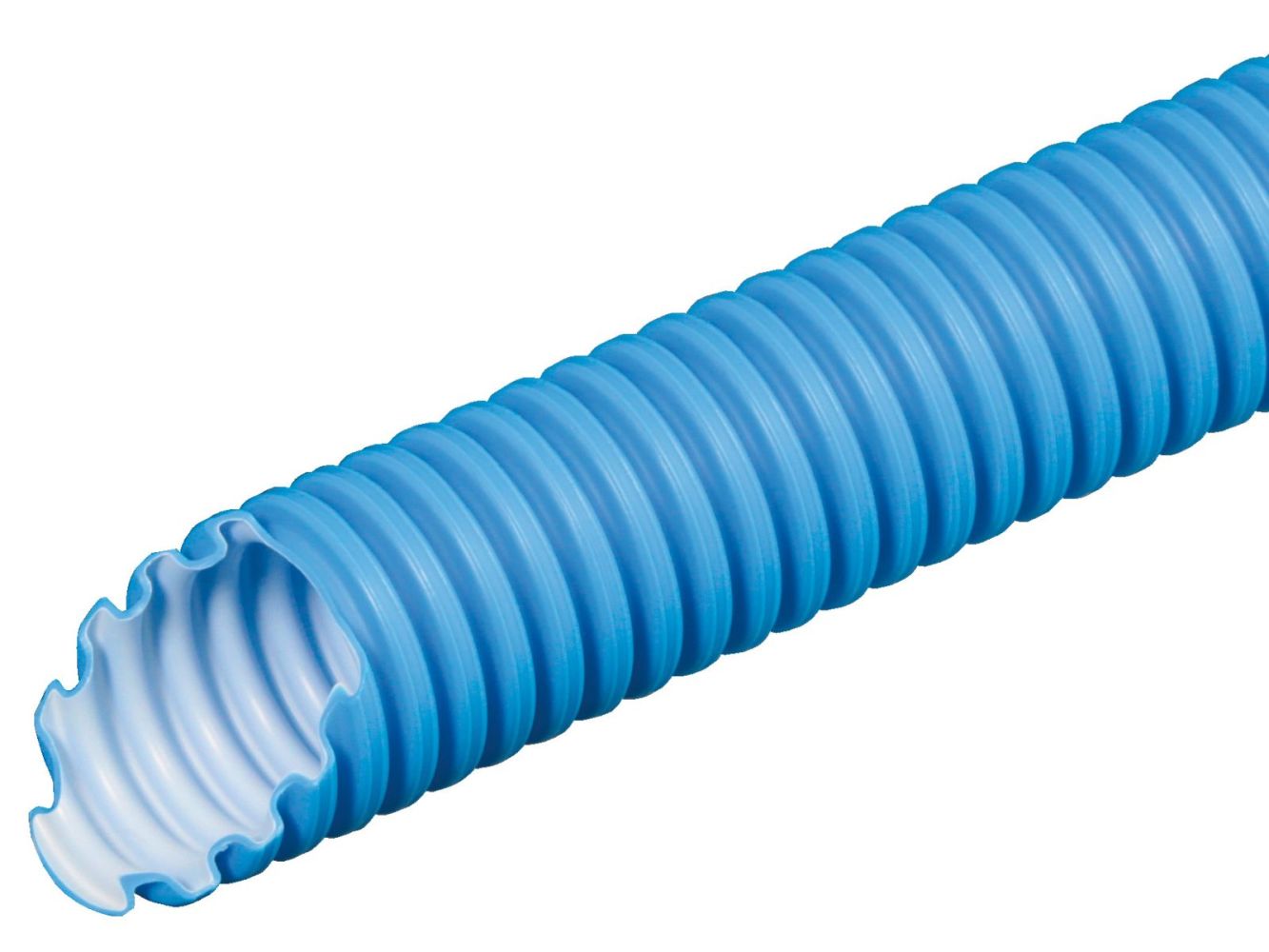

Fränkische Rohrwerke 26240020
This image may differ from the desired article.
Fränkische Rohrwerke 26240020Fränkische Rohrwerke 26240020Fränkische Rohrwerke 26240020Fränkische Rohrwerke 26240020
148,20 EUR 154,44 EUR
( 176,36 EUR incl. VAT )
≈ £124.04  |  ≈ $162.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 100 meters
In Stock: 4 meters
1x Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible
Datasheet:file_download Download
Lieske Part No.:489835
Mfg Part No: 26240020
UPC/EAN: 4013960179286
Weight:0.53 kg
Type:FBY-EL-F 20 blau
Graduated prices net
From piecesPrice per meters
5135,97 EUR
10123,75 EUR
15111,52 EUR
2099,29 EUR

Product information for Fränkische Rohrwerke 26240020:

The Fränkische FBY-EL-F 20 blue is a lightweight, flexible plastic corrugated pipe made of polyethylene (PE) with a high-slip inner layer made of polyolefin. It is specifically designed for the installation of electrical wiring and cables in indoor environments and is used in electrical installations for in-wall, hollow wall, and screed mounting. The pipe is flame-retardant and complies with standards DIN EN 61386-1 and DIN EN IEC 61386-22, which define requirements for electrical installation pipe systems for electrical energy and information. The blue color serves as visual identification and is included in the product standard.

Applications
The FBY-EL-F 20 blue is suitable for installation in indoor environments, particularly for in-wall and surface-mounted installations, as well as for embedding in screed. It can be installed on wooden substrates and in hollow walls. Use outdoors, in soil, or in concrete is not intended. The maximum operating temperature is +90 °C, and the minimum temperature is -15 °C. The pipe is not UV-resistant, which excludes its use in outdoor environments.

Functions and Equipment in Detail
A central feature of the pipe is the high-slip inner layer, which facilitates the pulling of cables and wiring over long distances. This property reduces friction resistance and minimizes the risk of damage during installation. The pipe is flexible, enabling adaptable routing in various geometries. The pressure resistance class is rated as light (Class 2, 320 N), and the impact resistance class is medium (Class 3, 750 N). These values ensure sufficient mechanical stability for the intended application.

Technology Explained Simply
The high-slip inner layer made of polyolefin ensures low friction between the inside of the pipe and the installed wiring. This allows cables to be pulled over long distances without additional tools or high tension forces. The material polyethylene (PE) is robust, lightweight, and chemically resistant to many substances commonly found indoors. The pipe is flame-retardant, enhancing safety in electrical installations. The standards DIN EN 61386-1 and DIN EN IEC 61386-22 guarantee compliance with European requirements for electrical installation pipe systems.

Compatibility and Accessories
Various accessories are available for connecting and terminating pipe lines. These include the plastic push-fit coupling M20, comparable to Fränkische SMSKu-EZF 20, the plastic push-fit coupling RMKu-E 20 transparent, the wind-tight closure plug FWVS-E 20 gray, the pipe closure plug FRVS-E 20, and the plastic clamp clipfix 20 gray. These components enable secure and tight connections and allow for termination of lines at ends or in wall openings.

Installation and Mounting
The pipe can be installed both in-wall and surface-mounted and is suitable for installation in hollow walls and screeds. Mounting is done by bending and connecting with appropriate push-fit couplings. The pipe’s flexibility facilitates adaptation to different building components and angles. Installation on wooden substrates is possible, with anchoring recommended using suitable clamps. Installation in concrete or soil is not intended.

Operational Advantages
The high-slip inner layer reduces labor effort when pulling cables and minimizes the risk of damage. The flexible structure of the pipe enables adaptable routing that can be adjusted to building components. Compliance with standards DIN EN 61386-1 and DIN EN IEC 61386-22 ensures the quality and safety of the installation. The pipe is lightweight, which simplifies handling and installation. The blue color supports visual differentiation in installations, especially in complex cable runs.

The item price shown refers to 100 meters Fränkische Rohrwerke 26240020
Delivery form
Minimum quantity100
Pallet content2000
Base unit quantityMetre
Technical data
MaterialPolyethylene (PE)
Bending strengthPliable
Pressure resistance class per EN 61386-1light (Class 2, 320 N)
Impact resistance class per EN 61386-1medium (Class 3, 750 N)
Inner diameter15 mm
Outer diameter20 mm
ColourBlue
RAL-number5012
UV resistantNo
With sleeveNo
Flush-mounted installationJa
Surface mountingJa
Suitable for installation on woodJa
Suitable for hollow wall installationJa
Suitable for concrete installationNo
Machine and plant installationNo
Suitable for subsurface installation (screed))Ja
Outdoor installationNo
Suitable for underground installationNo
High conducting inner coatingJa
With meter displayNo


Product data sheet
Datasheet for Fränkische Rohrwerke 26240020, EAN: 4013960179286

Questions & answers

What is the delivery time of Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible ?

The article Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 26240020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 meters of Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible we can offer you a price of 135,97 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 26240020 Fränkische FBY-EL-F 20 blue lightweight plastic corrugated pipe flexible is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
