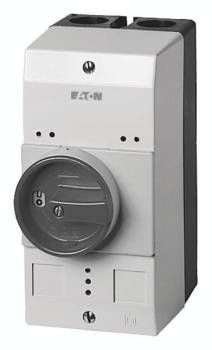

Eaton 260089 CI-PKZ0-GM insulating material housing assembly
|
23,98 EUR 24,99 EUR |
|||||||||||
|
( 28,54 EUR incl. VAT ) ≈ £20.07 | ≈ $26.35 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 491555 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 260089 | ||||||||||
| UPC/EAN: | 4015082600891 | ||||||||||
| Weight: | 0.355 kg | ||||||||||
| Type: | CI-PKZ0-GM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 260089:
Thermoplastic housing
The housing is made of thermoplastic, a robust, non-conductive material suitable for use in electrical installations. It provides high protection against mechanical damage and electrical hazards. The housing dimensions are 158 mm (width) × 80 mm (height) × 126 mm (depth), enabling compact mounting in enclosures or on panels. Pre-moulded cable entries of size M25 are provided in pairs, ensuring flexible and secure cabling.
Protection rating IP55
The housing features protection rating IP55, meaning it is dust-tight and protected against splashing water from any direction. This protection class makes the housing suitable for use in industrial environments where moisture, dust, or splashing water may occur. The IP55 protection rating is particularly relevant for installations outdoors or in production halls with increased contamination risk.
Functions and equipment in detail
The CI-PKZ0-GM is specifically designed for mounting motor protection switches of the PKZM0 series. The integrated PE(N) terminal allows for direct and secure connection of the protective conductor or neutral conductor, reducing installation time and enhancing electrical safety. The pre-moulded M25 cable entries provide a reliable and tight connection for supply lines, ensuring mechanical and electrical stability. The black-grey rotary handle enables clear and secure operation of the installed switch.
Compatibility and accessories
The housing is compatible with motor protection switches of the PKZM0 series. It can be combined with various accessories to extend functionality. These include signal lamps in different colours (red, green, white) with neon lamps, rated for 230 V or 400 V. These signal lamps can be used for visual indication of operating status. Additionally, cable glands (V-M25) and membrane glands (KT-M25) are available to secure the cable entries. A padlockable lock insert (SVB-PKZ0-CI) provides additional security against unauthorised access.
Mounting and installation
The CI-PKZ0-GM is mounted in enclosures or on panels. The pre-moulded cable entries simplify cabling, with the M25 size suitable for standard cable diameters. The integrated PE(N) terminal reduces the number of required connections and increases installation speed. The rotary handle is directly attached to the housing and allows easy operation of the installed switch. The IP55 protection rating requires no additional protective measures during installation, provided the designated entries are properly sealed.
Advantages in operation
The CI-PKZ0-GM provides reliable and safe encapsulation for motor protection switches. The integrated PE(N) terminal and pre-moulded cable entries reduce mounting time and increase installation safety. The IP55 protection rating ensures long-term operation in demanding environments. Compatibility with various signal lamps and safety components allows flexible adaptation to specific system requirements. The housing is designed for use in industrial installations where reliability and safety are paramount.
| General | |
| Type of enclosure | Insulating material housing |
| Degree of protection | IP55 |
| Terminal clamp | integrated terminal for PE(N) connection |
| Cable entries | 2 x M25 pre-pressed |
| Rotary knob | black-grey |
| Compatibility | for PKZM0 motor protection switches |
Questions & answers
What is the delivery time of Eaton 260089 CI-PKZ0-GM insulating material housing assembly ?
The article Eaton 260089 CI-PKZ0-GM insulating material housing assembly is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 260089 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 260089 CI-PKZ0-GM insulating material housing assembly always at the best possible price. We can give you a discount of 2% on Eaton 260089 CI-PKZ0-GM insulating material housing assembly if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 260089 CI-PKZ0-GM insulating material housing assembly we can offer you a price of 23,26 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
