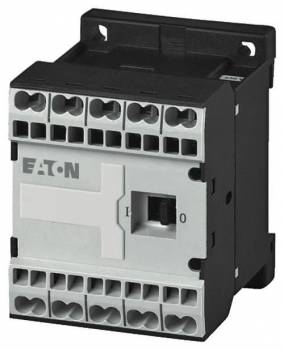

Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC
|
348,37 EUR 359,17 EUR |
|||||||||||
|
incl. 4,47 EUR copper surcharge ( 414,56 EUR incl. VAT ) ≈ £294.37 | ≈ $389.48 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 5 pieces | |||||||||||
| Lieske Part No.: | 420770 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 230165 | ||||||||||
| UPC/EAN: | 4015082301651 | ||||||||||
| Weight: | 1.1 kg | ||||||||||
| Type: | DILEM-10-G-C(24VDC) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 230165:
Power contactor, Application: Miniature contactor for motors and resistive loads, DILEM power contactors, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, inching, Connection technology: Spring-loaded terminals, Note: Also suitable for motors of efficiency class IE3, Description: with auxiliary switch, Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 9 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 16 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 50 A, encapsulated: Ith= 40 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 2.2 kW, 380 V 400 V: P= 4 kW, 660 V 690 V: P= 4 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 1.5 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 3 kW, can be used for: .DILEM-C, .DILE-C, contact configuration S = normally open: 1 S, current type AC/DC: direct current operation
The item price shown refers to 5 pieces Eaton 230165
The item price shown refers to 5 pieces Eaton 230165
Please note...
This article contains a copper surcharge of 4,47 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC ?
The article Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 230165 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC always at the best possible price. We can give you a discount of 2% on Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC we can offer you a price of 335,47 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 230165 DILEM-10-G-C(24VDC) power contactor 4 kW 400 VAC 3-pole DC is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
