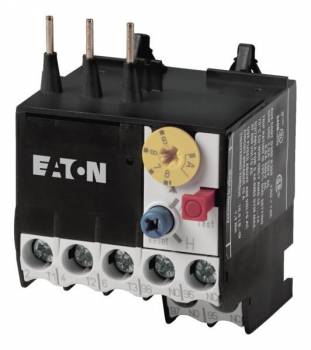

Eaton 014708 ZE-9 motor protection relay 6 A–9 A 1NO1NC
|
67,71 EUR |
|||||||||||
|
incl. 0,10 EUR copper surcharge ( 80,57 EUR incl. VAT ) ≈ £56.67 | ≈ $74.41 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 532270 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 014708 | ||||||||||
| UPC/EAN: | 4015080147084 | ||||||||||
| Weight: | 0.096 kg | ||||||||||
| Type: | ZE-9 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 014708:
Applications
The ZE-9 is used in installations where electric motors with rated currents between 6 and 9 amperes are operated. It is particularly suitable for applications in manufacturing technology, packaging industry, or automation technology, where direct mounting on the contactor is performed. The protection functions include detection of overloads and phase failures, thereby extending motor lifespan and preventing damage.
Functions and Equipment in Detail
The relay features a Test/Off button, enabling manual testing of the protection relay’s function without the motor being in operation. A Reset button allows restoring the operating state after a tripping event, with the option to choose between manual and automatic reset. The free release ensures that the relay safely disconnects even in case of control failure or power outage. The auxiliary contacts consist of one normally closed contact (1 NC) and one normally open contact (1 NO), which can be used for additional control or signaling tasks.
Technology Explained Simply
The ZE-9 operates on a thermal overload protection principle, simulating heat development in the motor and disconnecting the motor when the permissible current range is exceeded. The adjustable protection range from 6 to 9 A allows adaptation to various motor powers. The protection class IP20 means the device is protected against contact with fingers and against solid foreign objects larger than 12.5 mm, but not against water or dust. It is therefore intended for use in enclosed enclosures, not for outdoor use.
Compatibility and Accessories
The relay is specifically designed for mounting on contactors of the DILEM, DIULEM/21/MV types. It can be combined with various power contactors, such as the DILEM-10(48V50Hz), DILEEM-10 240 V 50 Hz, DILEM4(230V50Hz 240V60Hz), or the DIULEM/21/MV-G(24VDC). The mentioned contactors are available in various voltage variants and power ratings, and their combination with the ZE-9 enables integrated motor control. Use is exclusively in conjunction with these contactors, as the relay is directly mounted on their mounting surface.
Mounting and Installation
Mounting is done directly onto the contactor, with no additional mounting aids or tools required. The connection terminals are designed for connecting auxiliary contacts and control circuits. Installation takes place in an enclosed enclosure, with the protection class IP20 defining the operating conditions. Electrical connections are made via designated connection points, with polarity and contact assignment to be performed according to the technical documentation.
Advantages in Operation
The integrated overload protection function increases motor lifespan and improves plant availability. Direct mounting on the contactor reduces space requirements in the enclosure and simplifies installation. Clear operation via the Test and Reset buttons enables quick diagnosis and recovery after a tripping event. Compliance with standards IEC/EN, VDE, UL, and CSA ensures safety and reliability of the device in various markets.
Protection Class and Environmental Conditions
The protection class IP20 means the device is protected against contact with fingers and against solid foreign objects larger than 12.5 mm. It is not waterproof and not suitable for outdoor use or in damp environments.
| General | |
| Degree of protection | IP20 |
| Adjustment range | 6-9 A |
| Auxiliary contacts Normally open (NO) | 1 |
| Auxiliary contacts normally closed (NC) | 1 |
| Mounting type | Direct mounting |
| Phase failure sensitivity | IEC/EN, VDE part 102 |
| Standards and regulations | IEC/EN, VDE, UL, CSA |
| Suitable for | DILEM, DIULEM/21/MV |
| Functions | Test/Off button, Reset button Manual/Auto, Free release |
