Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling

Your rating:
Average rating
product review for Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling
( 4.5 / 5 ) 8 ratings
Eaton 106824
This image may differ from the desired article.

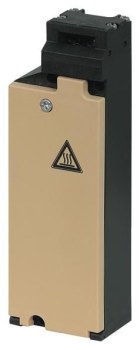

Eaton 106824Eaton 106824Eaton 106824
264,32 EUR 264,38 EUR
( 314,54 EUR incl. VAT )
≈ £221.24  |  ≈ $290.49
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling
Datasheet:file_download Download
Lieske Part No.:509515
Mfg Part No: 106824
UPC/EAN: 4015081065844
Weight:0.456 kg
Type:LS-S02-24DMT-ZBZ/X
Graduated prices net
From piecesPrice per pieces
4234,58 EUR
8204,85 EUR
12175,11 EUR
16145,38 EUR

Product information for Eaton 106824:

The Eaton position switch type LS-S02-24DMT-ZBZ/X is a mechanical end switch for use in industrial plants, particularly in safety applications with magnetic interlock. The device serves as a base unit in the range of magnetically interlocked position switches based on the operating current principle and is designed for monitoring door or cover positions in machines and plants. It features a safety function with forced opening in accordance with IEC/EN 60947-5-1, ensuring safe disconnection when the interlock is opened. The interlock monitoring is continuous, enabling ongoing control of the switching position. The rated control supply voltage for the magnetic drive is 24 V DC, making the device suitable for use in standardised industrial control systems.

Applications

The switch is designed for use in industrial environments, particularly in machine construction, conveying technology, and plant engineering, where safe door monitoring is required. The protection rating IP65 ensures dust and splash water protection, allowing the device to be operated even under harsh operating conditions, such as in production halls or outdoor areas. The operating temperature range of -25 °C to +40 °C enables use in environments with varying climatic conditions, for example in cooling plants or regions with extreme temperatures.

Functions and equipment in detail

The device features two normally open contacts (2 Ö), used for signal transmission in control and safety systems. The magnetic interlock enables a secure mechanical interlock that can only be released by an electrically controlled magnetic drive. The forced opening function ensures that the contacts safely open in the event of a fault or interruption of the control voltage, increasing the safety of the plant. The housing is made of plastic and is coloured yellow, ensuring good visibility during operation.

Technology explained simply

The function of the switch is based on the operating current principle: the interlock is activated by a magnetic drive controlled by a 24 V DC supply voltage. During machine operation, the interlock remains activated, and the contacts switch according to position. If the control voltage is interrupted, the switch opens forcibly to avoid dangerous situations. The IP65 protection rating protects the device against dust and splashing water, making it suitable for use in damp or dusty environments. The dimensions of 60 mm width and 173 mm height allow for compact mounting in standard enclosures.

Compatibility and accessories

The base unit is expandable and can be combined with various actuators and accessories. Compatible components include, for example, angled or straight actuators such as LS-XW-ZBZ, LS-XG-ZBZ or LS-XNG-ZBZ, as well as flexible actuators such as LS-XF-ZBZ or LS-XFG-ZBZ. For mounting, screw closures such as LS-X20 and membrane screws such as EMS20 are available. Connection sockets such as M12A5 (M12 A-coded) or plug-in connectors such as M12B (M12 B-coded) enable secure and standardised cabling. Combining with a time control module such as ESR5-NV3-30 allows for time-controlled unlocking, which is useful in certain applications.

Mounting and installation

Mounting is carried out in standard machine or plant enclosures. The device is secured using a screw closure or membrane screw, with mounting holes to be drilled according to the dimensions of 60 mm width and 173 mm height. Electrical connection is made via the designated connection sockets or connectors, with the use of M12 connectors recommended to ensure a robust and weather-resistant connection. Installation is typically performed by specialists in electrical or mechanical engineering.

Advantages in operation

The switch offers high reliability through continuous monitoring of the interlock position and the forced opening function. The IP65 protection rating ensures long service life even in harsh environments. The use of 24 V DC as control voltage enables easy integration into existing control systems. The expandable design and wide range of compatible actuators and accessories increase flexibility when adapting to specific requirements. The device is rated for a nominal current of 6 A, which is sufficient for most industrial applications.

Features
Product colourYellow
International Protection (IP) codeIP65
Operational conditions
Operating temperature (T-T)-25 - 40 °C
Power
Rated current6 A
Weight & dimensions
Width60 mm
Height173 mm


Product data sheet
Datasheet for Eaton 106824, EAN: 4015081065844

Questions & answers

What is the delivery time of Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling ?

The article Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 106824 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling always at the best possible price. We can give you a discount of 2% on Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Eaton 106824 LS-S02-24DMT-ZBZ/X position switch 2NC base magnetic coupling we can offer you a price of 234,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
