Eaton 106833 LS-XG-ZBZ actuator straight

Your rating:
Average rating
product review for Eaton 106833 LS-XG-ZBZ actuator straight
( 4.3 / 5 ) 8 ratings

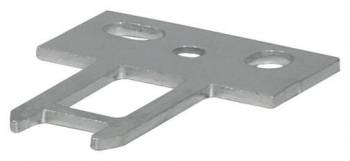

Eaton 106833
This image may differ from the desired article.
Eaton 106833Eaton 106833
68,78 EUR 71,68 EUR
( 81,85 EUR incl. VAT )
≈ £57.57  |  ≈ $75.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Sales unit: 10 pieces
In Stock: 1 pieces
1x Eaton 106833 LS-XG-ZBZ actuator straight
Lieske Part No.:282601
Mfg Part No: 106833
UPC/EAN: 4015081065936
Weight:0.125 kg
Type:LS-XG-ZBZ
Graduated prices net
From piecesPrice per pieces
666,20 EUR
1263,62 EUR
2461,04 EUR
3658,46 EUR

Product information for Eaton 106833:

The article LS-XG-ZBZ from Eaton is an actuating element for mechanical limit switches, specifically designed for use on sliding doors. It is a flat actuator made of stainless steel, classified as type identifier LS.ZBZ/X. The stainless steel construction ensures high mechanical strength and corrosion resistance, making it suitable for applications in industrial or demanding environments. The actuator is designed in a straight form and serves as a mechanical trigger for position switches integrated into sliding door systems.

Applications

The actuator LS-XG-ZBZ is primarily intended for use on sliding doors, particularly in industrial or technical installations where reliable mechanical actuation of limit switches is required. It is used in systems where the door position must be detected via a mechanical contact, for example in production plants, warehouses, or manufacturing technology. The use of stainless steel also makes it suitable for environments with high hygiene requirements, such as in food processing or the pharmaceutical industry.

Functions and Equipment in Detail

The actuating element features a flat, straight shape that fits optimally to the surface of sliding doors. The stainless steel construction ensures long service life and resistance to mechanical stress, as well as to moisture and aggressive media. Its function as an actuator enables mechanical triggering of position switches, which are typically equipped with magnetic coupling or spring contact. Precise mounting depends on the specific switch configuration, with the actuator converting the door’s movement into an electrical signal.

Technology Explained Simply

The actuator LS-XG-ZBZ operates as a mechanical trigger that comes into contact with a position switch when the sliding door moves. This contact activates the switch, which may send a signal to a control system or safety system. The use of stainless steel ensures high resistance to wear and corrosion, which is particularly advantageous in damp or aggressive environments. The flat shape allows for discreet and secure mounting on the door without hindering the door’s movement.

Compatibility and Accessories

The actuator LS-XG-ZBZ is compatible with various position switches from Eaton’s LS series, which are equipped with magnetic coupling or spring contact. Compatible switches include, for example, the LS-S02-230AMT-ZBZ/X, LS-S11-230AMT-ZBZ/X, or LS-S02-24DFT-ZBZ/X. These switches can be configured with different contact arrangements (e.g. 2NC, 1NO1NC) and operating voltages (e.g. 230 V, 24 V) depending on the application. The combination of actuator and switch enables precise and reliable detection of door position.

Mounting and Installation

The actuator is mounted directly onto the sliding door, with exact positioning determined by the specific application and the position switch being used. The flat shape allows for easy and secure fastening, with mechanical alignment ensuring contact with the switch at the desired door position. Installation does not require special tools or additional components, as the actuator is directly attached to the door.

Advantages in Operation

The actuator LS-XG-ZBZ provides reliable mechanical actuation that operates independently of electrical or pneumatic systems. The use of stainless steel ensures long service life and low maintenance, increasing operational safety. The flat shape allows for discreet integration into the door structure, preserving the aesthetic appearance of the installation. Compatibility with various position switches offers flexibility in system design.

The item price shown refers to 10 pieces Eaton 106833
General
ManufacturerEaton
FunctionFlat actuator
MaterialStainless steel
Utilizationsliding doors
Type identifierLS.ZBZ/X
ShapeStraight


Questions & answers

What is the delivery time of Eaton 106833 LS-XG-ZBZ actuator straight ?

The article Eaton 106833 LS-XG-ZBZ actuator straight is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 106833 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 106833 LS-XG-ZBZ actuator straight always at the best possible price. We can give you a discount of 2% on Eaton 106833 LS-XG-ZBZ actuator straight if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 106833 LS-XG-ZBZ actuator straight we can offer you a price of 66,20 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 106833 LS-XG-ZBZ actuator straight is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
