Eaton 106839 LS-XW-ZBZ actuator angled

Your rating:
Average rating
product review for Eaton 106839 LS-XW-ZBZ actuator angled
( 4.6 / 5 ) 11 ratings

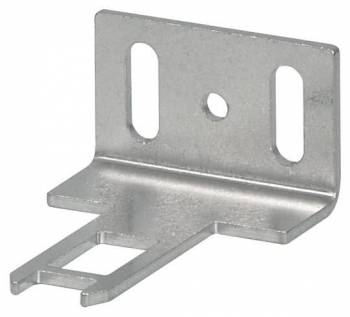

Eaton 106839
This image may differ from the desired article.
Eaton 106839Eaton 106839Eaton 106839
68,78 EUR 71,68 EUR
( 81,85 EUR incl. VAT )
≈ £57.57  |  ≈ $75.59
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Eaton 106839 LS-XW-ZBZ actuator angled
Datasheet:file_download Download
Lieske Part No.:441641
Mfg Part No: 106839
UPC/EAN: 4015081065998
Weight:0.125 kg
Type:LS-XW-ZBZ
Graduated prices net
From piecesPrice per pieces
666,20 EUR
1263,62 EUR
2461,04 EUR
3658,46 EUR

Product information for Eaton 106839:

The article LS-XW-ZBZ from Eaton is a mechanical actuator, specifically designed as a replacement or supplementary component for limit switches in industrial applications. It serves as an angled, short actuator made of stainless steel and is used in conjunction with swing doors with a width of at least 350 mm. The construction enables precise and reliable actuation of switches, particularly in environments where a robust and corrosion-resistant design is required. The housing is made of stainless steel, ensuring high mechanical strength and resistance to external influences such as moisture or chemical substances. The product colour is grey, enabling neutral integration into industrial control systems.

Applications

The actuator is intended for use in industrial machines and plants, particularly in systems with swing doors that require mechanical actuation of limit switches. The application is specified for doors with a width of at least 350 mm, where the angled shape enables optimal alignment and actuation of the switch. The robust construction from stainless steel makes it suitable for environments with high requirements for material durability, for example in manufacturing, packaging technology, or automation technology.

Functions and Equipment in Detail

The actuator features a compact design with a width of 35 mm, depth of 33 mm, and height of 15 mm. The weight is 11 g, enabling easy mounting and integration into existing systems. The function as an angled, short actuator made of stainless steel ensures precise and reliable triggering of the connected limit switch. The intended use in combination with swing doors with a width of at least 350 mm is specifically specified, with the geometric orientation of the actuator aligned to the movement direction of the door.

Technology Explained Simply

The actuator is not a standalone switch, but a mechanical accessory that is attached to a limit switch to enable its actuation. The angled shape ensures that the movement of the swing door is directly transferred to the switch. The stainless steel material offers high corrosion resistance and mechanical strength, increasing the service life and reliability in industrial environments. The operating temperature ranges from -25 °C to +40 °C, enabling use in a variety of environments, including slightly cool or warm operating conditions.

Compatibility and Accessories

The actuator is specifically designed for use with position switches from Eaton’s LS series. Compatible models include, for example, types LS-S02-230AFT-ZBZ/X, LS-S11-24DFT-ZBZ/X, LS-S02-24DMT-ZBZ/X, and others listed in the accessories list. These position switches vary in switching function (e.g. 2Ö, 1S1Ö) and actuation system (spring contact, magnetic coupling), with the LS-XW-ZBZ actuator serving as the mechanical actuation element. The combination with these switches enables flexible adaptation to different requirements in control technology.

Mounting and Installation

Mounting is performed by mechanical fastening to a compatible limit switch, with the angled shape of the actuator aligned to the movement direction of the swing door. Installation requires no additional tools or components, as the actuator is directly attached to the switch. The exact mounting instructions are described in the manufacturer’s data sheet, with positioning and alignment being critical for correct function.

Advantages in Operation

The actuator provides reliable and precise actuation of limit switches in industrial applications. The use of stainless steel ensures high service life and resistance to corrosion, which is particularly advantageous in moist or aggressive environments. The compact design and low weight facilitate mounting and integration into existing systems. Certification according to IEC 60947-5, UL 508, CSA Std. C22.2 No. 14, and EN 60947-5 ensures compliance with international standards for electrical equipment. The CE conformity certificate confirms compliance with European safety requirements. The operating temperature range of -25 °C to +40 °C enables flexible use in various environments.

The item price shown refers to 10 pieces Eaton 106839
Certificates
CertificationIEC 60947-5 UL 508 CSA Std. C22.2 No. 14 EN 60947-5 CSA Class No.: 3211-03 UL UL Category Control No.: NKCR IEC/EN 60947 CSA-C22.2 No. 14 UL File No.: E29184 IEC/EN 60947-5 CSA File No.: 012528
Features
Product colourGrey
Housing materialStainless steel
Operational conditions
Operating temperature (T-T)-25 - 40 °C
Technical details
Compliance certificatesCE
Sustainability complianceYes
Weight & dimensions
Width35 mm
Depth33 mm
Height15 mm
Weight11 g
Quantity per pack1 pc(s)


Product data sheet
Datasheet for Eaton 106839, EAN: 4015081065998

Questions & answers

What is the delivery time of Eaton 106839 LS-XW-ZBZ actuator angled ?

The article Eaton 106839 LS-XW-ZBZ actuator angled is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 106839 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 106839 LS-XW-ZBZ actuator angled always at the best possible price. We can give you a discount of 2% on Eaton 106839 LS-XW-ZBZ actuator angled if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 106839 LS-XW-ZBZ actuator angled we can offer you a price of 66,20 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 106839 LS-XW-ZBZ actuator angled is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
