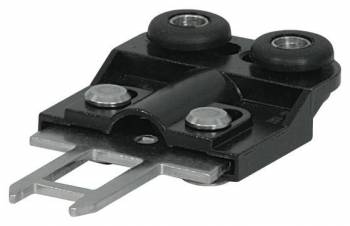

Eaton 106834 LS-XNG-ZBZ straight follow-up actuator

Your rating:
Average rating
product review for Eaton 106834 LS-XNG-ZBZ straight follow-up actuator
( 4.4 / 5 ) 9 ratings
Eaton 106834
This image may differ from the desired article.
Eaton 106834Eaton 106834Eaton 106834
318,06 EUR 331,45 EUR
( 378,49 EUR incl. VAT )
≈ £266.22  |  ≈ $349.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Eaton 106834 LS-XNG-ZBZ straight follow-up actuator
Datasheet:file_download Download
Lieske Part No.:225203
Mfg Part No: 106834
UPC/EAN: 4015081065943
Weight:0.54 kg
Type:LS-XNG-ZBZ
Graduated prices net
From piecesPrice per pieces
4306,13 EUR
8294,21 EUR
12282,28 EUR
16270,35 EUR

Product information for Eaton 106834:

The Eaton LS-XNG-ZBZ is a mechanical end switch, specifically designed as a follow-up actuator for electromagnetic door locking systems. It serves for the secure locking of protective doors in industrial plants and enhances the safety standard for the protection of personnel and processes. The device operates according to two functional principles: with magnetic force or spring force locking. The spring force locking is particularly suitable for personnel protection, as the door remains securely closed even in the event of a power failure. In an emergency, the protective door can be opened via an auxiliary unlocking mechanism. The actuator is designed as a world market device and complies with the standard IEC/EN 60947-5-1, which applies to switching devices in electrical control technology. It is also certified with the GS-ET-19 approval from the employers' liability insurance association, confirming compliance with specific safety requirements for industrial use.

Applications

The LS-XNG-ZBZ is used in industrial plants where reliable and secure locking of protective doors is required. It is particularly suitable for applications where personnel protection is a priority, for example in machines with moving parts or in installations with high-voltage electrical lines. The locking is achieved either via magnetic force, which is activated when power is supplied, or via spring force, which ensures mechanical locking even without electrical power. The spring force locking ensures that the door cannot be opened in the event of a power failure, thereby increasing operational safety.

Functions and Equipment in Detail

The actuator is designed for an operating voltage of 400 V and a current of 6 A. These values lie within the standard range for industrial control systems and enable safe and reliable operation in electrical circuits. The device is black in colour, providing clear visual distinction in technical environments. Dimensions are 39 mm (width), 18.8 mm (depth), and 74.5 mm (height), representing a compact design that can be integrated into existing control panel constructions. The construction is designed to meet requirements for mechanical load capacity and electrical safety.

Technology Explained Simply

The LS-XNG-ZBZ operates as a mechanical end switch that detects the position of a door or protective element via an actuator. The locking is achieved either through a magnetic coupling, which is activated when power is supplied, or through spring force, which ensures mechanical locking. The spring force locking is particularly safe as it functions even during a power failure. The magnetic locking, on the other hand, allows the door to be quickly opened in an emergency as soon as the voltage is lost. The signal function enables electronic monitoring of the door position, suitable for control systems according to IEC/EN 61131-2. Certification according to IEC/EN 60947-5-1 and GS-ET-19 approval confirm compliance with safety and quality standards.

Compatibility and Accessories

The LS-XNG-ZBZ is designed as a base unit for various position switches that can be used in combination with it. Compatible accessories include, for example, position switches with magnetic coupling such as the LS-S11-230AMT-ZBZ/X or with spring clamp such as the LS-S11-24DFT-ZBZ/X. These switches allow flexible adaptation to different requirements, such as the number of contacts (e.g. 1S1Ö or 2Ö) or actuation technology. Combining the actuator with these position switches extends its functionality and enables individual adaptation to specific plant conditions.

Mounting and Installation

Mounting of the LS-XNG-ZBZ is carried out in the usual manner for mechanical end switches in control panels or on machines. The compact design facilitates integration into existing constructions. The electrical connection is made via the designated connection points, designed for a voltage of 400 V and a current of 6 A. Mechanical fastening is done via the designated mounting holes. Installation does not require special tools or additional components, as the device is designed as a standalone actuator. The locking function is activated by combining it with a suitable position switch.

Advantages in Operation

Using the LS-XNG-ZBZ provides high operational safety, particularly through the spring force locking, which remains effective even during a power failure. The signal function enables electronic monitoring of the door position, facilitating integration into control systems. Certification according to IEC/EN 60947-5-1 and GS-ET-19 approval guarantee compliance with industrial safety standards. The compact design and universal applicability as a world market device make the device a flexible solution for various industrial requirements. Use in combination with suitable position switches extends functionality and allows customised adaptation to specific plant conditions.

Certification and Conformity

The device complies with standards IEC/EN 60947, IEC 60068-2-78, IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14 and carries approval E29184. The CE conformity certificate confirms compliance with European safety requirements. The GS-ET-19 approval from the employers' liability insurance association ensures compliance with specific requirements for industrial use. The certifications guarantee that the device is suitable for use in industrial environments and meets the required safety and quality standards.

The item price shown refers to 10 pieces Eaton 106834
Features
Product colourBlack
CertificationIEC/EN 60947 IEC 60068-2-78 IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14 E29184
Power
Voltage400 V
Current6 A
Technical details
Compliance certificatesCE
Sustainability complianceYes
Weight & dimensions
Width39 mm
Depth18.8 mm
Height74.5 mm


Product data sheet
Datasheet for Eaton 106834, EAN: 4015081065943
