Eaton 095806 T0-1-15421/E group selector switch

Your rating:
Average rating
product review for Eaton 095806 T0-1-15421/E group selector switch
( 4.5 / 5 ) 11 ratings

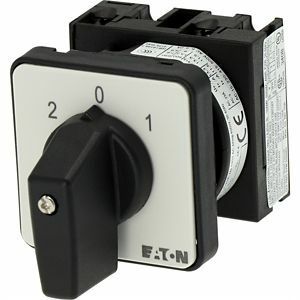

Eaton 095806
This image may differ from the desired article.
Eaton 095806Eaton 095806Eaton 095806Eaton 095806Eaton 095806Eaton 095806
31,01 EUR 31,04 EUR
( 36,90 EUR incl. VAT )
≈ £25.96  |  ≈ $34.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 095806 T0-1-15421/E group selector switch
Datasheet:file_download Download
Lieske Part No.:130973
Mfg Part No: 095806
UPC/EAN: 4015080958062
Weight:0.125 kg
Type:T0-1-15421/E
Graduated prices net
From piecesPrice per pieces
1029,85 EUR
2528,68 EUR
5027,52 EUR
7526,36 EUR

Product information for Eaton 095806:

The article from Eaton, type T0-1-15421/E, is a toggle switch from the control switch product range, specifically designed as a group selector switch for industrial applications. It features a black-metallic lacquered knob and a front plate marked 2-0-1, visually indicating the three switching positions (Position 2, 0, Position 1). The switch is designed for flush mounting and is used in electrical control systems to safely disconnect loads or switch between different operating states. It complies with standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL and is classified as a load disconnector according to IEC/EN 60947-3, legitimizing its use in industrial control and protection circuits.

Applications

The switch is suitable for use in industrial environments, particularly in systems requiring safe electrical energy disconnection, such as machine controls, drive technology, or process engineering. The protection rating IP65 ensures the device is dust-tight and protected against water jets from any direction, making it suitable for outdoor use or in humid production environments. The operating temperature range of -25 to +50 °C allows use in climatically diverse regions or environments with significant temperature fluctuations.

Functions and Equipment in Detail

The switch features 2 contacts and is configured as 1P (single-pole), meaning it switches one conductor (e.g., phase). The switching behavior is latching, i.e., positions are fixed by latching, ensuring the switch does not unintentionally move from the selected position. The switching angle is 45°, enabling clear and precise operation. The 0 position serves as the disconnect position, where the circuit is fully interrupted. The front plate marked 2-0-1 supports the operator’s visual orientation.

Technology Explained Simply

The rated continuous current is Iu = 20 A, indicating the maximum current the switch can carry continuously without overheating or damage. The rated operational power at AC-23A, 50–60 Hz, and 400 V is P = 5.5 kW, indicating the maximum power the switch can safely switch. The housing is made of plastic and is available in black and metallic colors. Dimensions are 48 mm width and 48 mm height, making it suitable for standard control panels with 48 mm module width. The front side is protected to IP65, ensuring high mechanical and electrical safety.

Compatibility and Accessories

Various accessories are available for this switch to extend its functionality. These include, for example, individual keys (e.g. ES-KMS(*)-T0), enabling authorized operation, or front plates such as the EMERGENCY STOP front plate (FS908GE-T0) or the front plate FS alu (FS-ALU980-T0), enhancing operational safety. Additional options include central mounting kits (EZ-T0), knob handles (KNB-RT-T0), plate carriers (ZFSX-T0), and mounting plate shields (MBS-I2), which optimize installation and operation depending on the application. Combining with cylinder lock locks (SVA-SOND-KMS(*)-T3) or key actuators (S(*)-T0) enables additional protection against unauthorized operation.

Mounting and Installation

The switch is designed for flush mounting and is installed in standard control panels with 48 mm module width. Mounting is typically done via screw fastening into pre-cut openings. The use of mounting aids such as mounting brackets (AB-CI-K4/5) or central mounting kits (EZ-T0) can simplify installation. Cable connections are made via integrated terminal clamps, and the use of clamp covers (H-P3) or neutral conductor clamps (K-CI-K5) may be appropriate depending on the connection configuration.

t
Operational Advantages

The switch offers clear, latching operation with easily identifiable positions, enhancing operational safety. The IP65 protection rating protects against dust and splashing water, increasing service life and reliability in demanding environments. Compliance with IEC/EN 60947-3 and other standards ensures safety requirements are met in industrial installations. Compatibility with various accessories allows customized adaptation to specific requirements of individual systems.

Features
TypeToggle switch
Number of poles1P
Housing materialPlastic
Product colourBlack, Metallic
International Protection (IP) codeIP65
Built-in displayNo
Operational conditions
Operating temperature (T-T)-25 - 50 °C
Weight & dimensions
Width48 mm
Height48 mm


Product data sheet
Datasheet for Eaton 095806, EAN: 4015080958062

Questions & answers

What is the delivery time of Eaton 095806 T0-1-15421/E group selector switch ?

The article Eaton 095806 T0-1-15421/E group selector switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 095806 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 095806 T0-1-15421/E group selector switch always at the best possible price. We can give you a discount of 2% on Eaton 095806 T0-1-15421/E group selector switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 095806 T0-1-15421/E group selector switch we can offer you a price of 29,85 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
