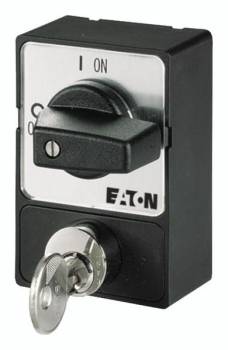

Eaton 907745 SVA(*)-T3 cylinder lock lockout
|
117,91 EUR 122,88 EUR |
|||||||||||
|
( 140,31 EUR incl. VAT ) ≈ £98.69 | ≈ $129.58 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 362745 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 907745 | ||||||||||
| Weight: | 0.16 kg | ||||||||||
| Type: | SVA(*)-T3 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 907745:
Accessory for rotary switches
SVA(*)-T3 is not a standalone switch, but an add-on module mounted onto existing rotary switches. It is designed for switches supporting an operating voltage up to 690 V and a rated current of 20 A. The product is used in installations specified according to IEC/EN60947-3, ensuring standardization of electrical switching devices in industry. The lock is used in various mounting configurations, including surface mounting, flush mounting, central mounting, rear mounting, and mounting in maintenance distribution IVS. The enclosure is made of insulating material, enhancing electrical safety and enabling use in electrically demanding environments.
Functions and equipment in detail
The cylinder lock lock enables controlled operation of the rotary switch. Only with a matching key can the handle be moved, preventing accidental or unauthorized switching. This is especially important in production facilities, during maintenance work, or in safety-critical installations. The black handle is ergonomically shaped and provides a secure grip. The integrated cylinder padlock function allows the switch to be fixed in a specific position, for example in the Off" or "On position, depending on the installation requirements. The IP65 protection rating on the front ensures reliable operation even under harsh environmental conditions such as splashing water or dust.
Technology explained clearly
The lock is a mechanical add-on module mounted onto the switch, controlling its operation via a key. The IP65 protection rating means the front of the device is completely dust-tight and protected against water jets from any angle – making it suitable for use in damp or dusty environments. The use of insulating material for the enclosure reduces the risk of electrical hazard. Compatibility with switch sizes T0, T3, and P1 allows flexible application in various switching installations. The maximum operating voltage of 690 V and rated current of 20 A define the electrical limits of use.
Compatibility and accessories
The SVA(*)-T3 is specifically developed for rotary switches of sizes T0, T3, and P1. It is part of a comprehensive accessory range that extends the functionality of rotary switches. Use is in installations executed according to IEC/EN60947-3. The lock is designed for mounting in various configurations, including surface mounting, flush mounting, central mounting, rear mounting, and mounting in maintenance distribution IVS. Compatibility with these mounting types enables flexible integration into existing switching installations.
Mounting and installation
Mounting is performed on existing rotary switches of the specified sizes. The lock is attached to the front of the switch, with the mounting method varying according to the installation and switch system. The use of insulating material and the IP65 protection rating ensure a safe and durable installation. Installation requires no additional tools, provided the switches are already mounted. The lock is directly coupled to the switch, with the exact mounting instructions corresponding to the respective switch model.
Advantages in operation
The cylinder lock lock provides a clear safety function by preventing uncontrolled switching. This is especially important in production environments, during maintenance work, or in installations where switching operations must be documented or controlled. The IP65 protection rating ensures high reliability under harsh operating conditions. The use of insulating material increases electrical safety. Compatibility with various mounting types and switch sizes enables flexible integration into existing installations. The lock is a robust and compact module that has proven itself in industrial applications.
Accessory for rotary switches
The SVA(*)-T3 is a specific accessory mounted onto rotary switches to control their operation. It is not intended for use as a standalone switching device, but complements existing switches. Use is in installations executed according to IEC/EN60947-3, and is particularly suitable for industrial applications, crafts, and building technology. The lock is part of a comprehensive accessory range that extends the functionality of rotary switches.
Technology explained clearly
The lock is a mechanical module mounted onto the switch, controlling its operation via a key. The IP65 protection rating means the front of the device is completely dust-tight and protected against water jets from any angle – making it suitable for use in damp or dusty environments. The use of insulating material for the enclosure reduces the risk of electrical hazard. Compatibility with switch sizes T0, T3, and P1 allows flexible application in various switching installations. The maximum operating voltage of 690 V and rated current of 20 A define the electrical limits of use.
Compatibility and accessories
The SVA(*)-T3 is specifically developed for rotary switches of sizes T0, T3, and P1. It is part of a comprehensive accessory range that extends the functionality of rotary switches. Use is in installations executed according to IEC/EN60947-3. The lock is designed for mounting in various configurations, including surface mounting, flush mounting, central mounting, rear mounting, and mounting in maintenance distribution IVS. Compatibility with these mounting types enables flexible integration into existing switching installations.
Mounting and installation
Mounting is performed on existing rotary switches of the specified sizes. The lock is attached to the front of the switch, with the mounting method varying according to the installation and switch system. The use of insulating material and the IP65 protection rating ensure a safe and durable installation. Installation requires no additional tools, provided the switches are already mounted. The lock is directly coupled to the switch, with the exact mounting instructions corresponding to the respective switch model.
Advantages in operation
The cylinder lock lock provides a clear safety function by preventing uncontrolled switching. This is especially important in production environments, during maintenance work, or in installations where switching operations must be documented or controlled. The IP65 protection rating ensures high reliability under harsh operating conditions. The use of insulating material increases electrical safety. Compatibility with various mounting types and switch sizes enables flexible integration into existing installations. The lock is a robust and compact module that has proven itself in industrial applications.
| General | |
| Front protection rating | IP65 |
| Operating voltage | 690 V |
| Nominal current | 20 A |
| Compatibility | cam switch size T0, T3, P1 |
| Housing material | insulating material |
| Accessory type | cylinder lock lockout |
| Handle | Black |
| Norm | IEC/EN60947-3 |
| Mounting types | Surface mounting, built-in, central mounting, rear mounting, IVS |
Questions & answers
What is the delivery time of Eaton 907745 SVA(*)-T3 cylinder lock lockout ?
The article Eaton 907745 SVA(*)-T3 cylinder lock lockout is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 907745 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 907745 SVA(*)-T3 cylinder lock lockout always at the best possible price. We can give you a discount of 2% on Eaton 907745 SVA(*)-T3 cylinder lock lockout if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 907745 SVA(*)-T3 cylinder lock lockout we can offer you a price of 113,49 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
