Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly

Your rating:
Average rating
product review for Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly
( 4.5 / 5 ) 6 ratings

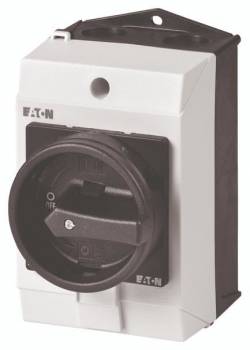

Eaton 207158
This image may differ from the desired article.
Eaton 207158Eaton 207158
84,63 EUR 84,69 EUR
( 100,71 EUR incl. VAT )
≈ £70.84  |  ≈ $93.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly
Datasheet:file_download Download
Lieske Part No.:119217
Mfg Part No: 207158
UPC/EAN: 4015082071585
Weight:0.355 kg
Type:T0-3-15683/I1/SVB-SW
Graduated prices net
From piecesPrice per pieces
681,46 EUR
1278,28 EUR
2475,11 EUR
3671,94 EUR

Product information for Eaton 207158:

The article from Eaton, type T0-3-15683/I1/SVB-SW, is a rotary switch from the product range for main switches, maintenance switches, and repair switches. It is used for the safe disconnection of electrical installations and is employed in industrial applications where a clear and lockable shut-off is required. The switch is designed for surface mounting and features a black-painted rotary handle with an integrated locking ring, which can lock the position 0 (Off). The switching movement occurs over an angle of 90°, enabling clear and unambiguous operation. The protection rating IP65 ensures dust-tight and splash-proof enclosure, allowing the switch to be used even in harsh environments with increased contamination or moisture exposure. The operating temperature ranges from -25 °C to +40 °C, enabling use in outdoor installations or in climatically challenging indoor spaces.

Applications

The switch is designed for use in industrial electrical installations, particularly in machine and plant engineering, where safe disconnection of power supply is necessary for maintenance or repair work. It is often used in conjunction with other safety components such as padlock locks or additional front shields to enhance accessibility and operational safety. Conformity with standards IEC/EN 60947, VDE 0660, and IEC/EN 60204 ensures compliance with international standards for switching devices and machine installations. As a load disconnector in accordance with IEC/EN 60947-3, it is designed for disconnecting loads, with a rated operational performance of AC-23A at 50–60 Hz and 400 V enabling a power of 5.5 kW.

Functions and Equipment in Detail

The switch is 3-pole (3P) and features a rated current of 20 A (Iu = 20 A). The rated continuous current of 20 A is designed for continuous operating conditions, with the switching function remaining stable even under short-term load peaks. The integrated STOP function enables safe shut-off, which is additionally secured by locking in position 0 (Off). This is particularly important to prevent unintended reactivation. The device is available in black and white color options, with the black version included in the delivery scope. The design is intended for surface mounting, with dimensions of 80 mm (width), 137 mm (depth), and 140 mm (height).

Technology Explained Simply

The IP65 protection rating means the device is fully protected against dust and against water spray from any direction. This makes the switch suitable for outdoor use or in damp indoor environments. The frequency specification of 50–60 Hz refers to the mains voltage for which the switch is designed, making it compatible with most industrial power supplies in Europe and other regions. The rated operational performance of 5.5 kW at 400 V and 50–60 Hz results from the AC-23A operating mode, intended for operation with inductive loads such as motors or transformers. The locking in position 0 (Off) is achieved via the locking ring on the rotary handle, which can be secured with a padlock or a special maintenance key.

Compatibility and Accessories

Various accessories are available for this switch to extend its functionality. These include, for example, insulating housing such as CI-K1H-T0-2 or CI-K2-T3-2, which provide additional protection, as well as padlock locks such as SVB-T0, which secure the locking in the off position. Additionally, there are additional front shields in various languages (e.g., German/English, French) and conversion kits such as V/EA/SVB-SW-T5, which enable adaptation to other switch types. Other components such as maintenance keys (KNK-T0), knob handles (KNB-T0), or shaft extensions (ZAV-T0) support individual adaptation to specific requirements. The locking extension ZVV-P3 enables additional securing of the switch position.

Mounting and Installation

Mounting is done in surface-mounted construction, with the device dimensions (80 mm width, 137 mm depth, 140 mm height) needing to be considered when planning the mounting surface. The switch positions are clearly marked, and the 90° switching angle ensures unambiguous operation. The locking in position 0 (Off) requires consideration of accessibility for maintenance keys or padlocks during installation. Connections are made via the integrated terminals, with the optional use of neutral conductor terminals such as K-CI-K4 or K-CI-K1/2 depending on the connection configuration.

Advantages in Operation

The switch provides a clear, lockable shut-off, enhancing safety during maintenance work. The IP65 protection rating ensures high environmental resistance, and standard conformity guarantees reliability in industrial applications. The rating for 20 A and 5.5 kW at 400 V makes it suitable for a wide range of machine installations. The possibility to supplement the device with various accessories enables flexible adaptation to specific requirements. Surface mounting and clear marking of positions simplify installation and daily operation.

Features
TypeRotary switch
Number of poles3P
Product colourBlack, White
International Protection (IP) codeIP65
Operational conditions
Operating temperature (T-T)-25 - 40 °C
Packaging data
Quantity per pack1 pc(s)
Power
AC input frequency50-60 Hz
Rated current20 A
Weight & dimensions
Width80 mm
Depth137 mm
Height140 mm


Product data sheet
Datasheet for Eaton 207158, EAN: 4015082071585

Questions & answers

What is the delivery time of Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly ?

The article Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 207158 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly always at the best possible price. We can give you a discount of 2% on Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 207158 T0-3-15683/I1/SVB-SW main switch assembly we can offer you a price of 81,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
