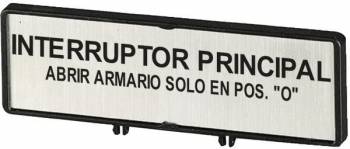

Eaton 047422 ZFS77-P3 additional front shield Spanish
|
-96% 3,04 EUR 76,00 EUR |
|
|
( 3,62 EUR incl. VAT ) ≈ £2.54 | ≈ $3.34 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Sales unit: 25 pieces | |
| Lieske Part No.: | 380544 |
|---|---|
| Mfg Part No: | 047422 |
| UPC/EAN: | 4015080474227 |
| Weight: | 0.124 kg |
| Type: | ZFS77-P3 |
Product information for Eaton 047422:
Applications
The additional front plate ZFS77-P3 is used in installations where additional labeling or identification of switch functions is required. Particularly in industry, building automation, or maintenance technology, where multiple switches are mounted in an enclosure, it aids in better identification and prevents incorrect operation. Its use in the maintenance distribution IVS indicates that it can also be used in safety-critical installations where clear assignment of functions is necessary. The mounting variants allow adaptation to different enclosure constructions and space conditions.
Functions and Equipment in Detail
It is designed for use with toggle switches and switch disconnectors that comply with the standard IEC/EN 60947-3. This standard defines the requirements for switches used in electrical equipment, particularly regarding operational safety and mechanical durability. The accessory is described as a general version, meaning it does not include special functions such as light indication or additional switching functions, but serves solely as a visual supplement. The note “main switch only open in position 0” indicates that it can be used in combination with a main switch that may only be opened in position 0 (off) — a safety feature required in certain installations.
Technology Explained Simply
The front plate is made of insulating material, which is electrically non-conductive and thus provides additional safety, especially when touching the switch front. Mounting is either directly onto the switch housing or in an add-on housing, with rear mounting being an alternative if the front side of the switch is already occupied. Its use in the maintenance distribution IVS shows that it can also be used in installations with increased safety requirements. The standard IEC/EN 60947-3 ensures compatibility with switches approved for industrial applications. The design as an additional front plate means it does not perform any electrical function, but exclusively visually supplements the operating interface.
Compatibility and Accessories
The ZFS77-P3 is specifically developed for Eaton’s toggle switches of the T series and switch disconnectors of the P series. It is intended as an accessory for these switches and can be mounted in combination with them. Compatibility is ensured by the standard IEC/EN 60947-3, which defines the technical requirements for the switches.
Mounting and Installation
Mounting is carried out in various variants depending on the application scenario: as add-on housing, built-in, central built-in, rear mounting, or in the maintenance distribution IVS. The use of insulating material ensures that no electrical contacts occur between the front plate and the switch housing, increasing safety.
Operational Advantages
The additional front plate improves the visibility of switch functions, which particularly helps prevent incorrect operation in complex installations. Its use in the maintenance distribution IVS shows that it can also be used in safety-critical environments. Mounting flexibility allows adaptation to different enclosure constructions. The design from insulating material increases electrical safety. Compatibility with switches according to IEC/EN 60947-3 ensures safe and reliable integration into existing installations.
The item price shown refers to 25 pieces Eaton 047422
| General | |
| Manufacturer | Eaton |
| Product type | additional front cover |
| Compatibility | toggle switch T, load isolation switch P |
| Norm | IEC/EN 60947-3 |
| Material | insulating material |
| Mounting types | surface-mounted enclosure, built-in, central installation, rear mounting, maintenance distribution IVS |
Questions & answers
What is the delivery time of Eaton 047422 ZFS77-P3 additional front shield Spanish ?
The article Eaton 047422 ZFS77-P3 additional front shield Spanish is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 047422 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 047422 ZFS77-P3 additional front shield Spanish always at the best possible price. We can give you a discount of 2% on Eaton 047422 ZFS77-P3 additional front shield Spanish if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 047422 ZFS77-P3 additional front shield Spanish is offered by us in a sales unit of 25 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
