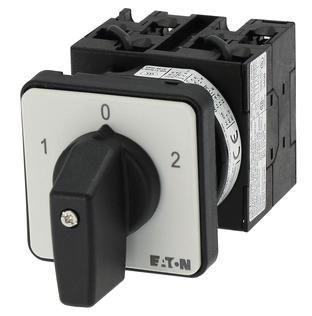

Eaton 091047 T0-3-8401/E toggle switch
|
42,27 EUR 42,33 EUR |
|||||||||||
|
( 50,30 EUR incl. VAT ) ≈ £35.38 | ≈ $46.45 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 365272 | ||||||||||
| Mfg Part No: | 091047 | ||||||||||
| UPC/EAN: | 4015080910473 | ||||||||||
| Weight: | 0.152 kg | ||||||||||
| Type: | T0-3-8401/E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 091047:
Applications
The switch is used in industrial electrical engineering, particularly in installations requiring manual power reversal or disconnection. Typical application areas include machine controls, drive technology, machine tools, and other electrically operated devices where safe and visible disconnection of the circuit is necessary. The protection rating IP65 ensures high mechanical and electrical safety, as the device is dust-tight and protected against splashing water. Additionally, the protection ratings NEMA 12 and NEMA 1 are specified, confirming suitability for indoor environments with increased contamination risk and for general indoor applications.
Functions and Equipment in Detail
The switch features a plastic housing in the colours black and metallic, which is robust and durable. Dimensions are 48 mm width and 48 mm height, making it suitable for standard control panels. Operation is via a toggle lever that latches into three positions: 1, 0, and 2. The 0-position represents the disconnect position, ensuring safe power disconnection. The ratchet operation prevents unintended movements and provides clear position indication.
Technology Explained Simply
The IP65 protection rating means the device is fully protected against dust and resistant to splashing water from any direction. This makes the switch suitable for use in damp or dusty environments, such as those found in production halls or manufacturing technology. The 3-pole configuration allows simultaneous switching of all three phases in a three-phase system, which is required for safe disconnection of electrical installations. The rating for 20 A at 440 V ensures reliability under load conditions typical in industrial installations.
Compatibility and Accessories
Various accessories are available for this switch to extend its functionality. These include additional front plates in different languages (e.g. German/English, French), insulating housing in various versions, locking extensions, shaft extensions, and key-operated actuators. These components allow individual adaptation to specific requirements, such as additional safety locking or special mounting conditions. A central mounting kit with front plate (EZ-T0) and mounting brackets (AB-CI-K4/5) are also available to facilitate installation.
Mounting and Installation
The switch is designed for mounting in control panels. Dimensions of 48 mm x 48 mm correspond to the standard format for built-in devices in enclosures. Mounting is typically done via screw fastening or using mounting brackets. The ratchet operation and clear position indication simplify installation and maintenance, as the switch position is always visible.
Advantages in Operation
The switch offers high operational safety through the 0-(off)-position and ratchet operation. The IP65 protection rating ensures long service life even under harsh operating conditions. The 3-pole configuration enables safe disconnection of three-phase installations. The use of plastic as housing material ensures good insulation and resistance to mechanical stress. The availability of various accessories allows flexible adaptation to different requirements in industrial electrical engineering.
The operating temperature ranges from -25 °C to 50 °C, enabling use in a wide range of environments, from cool storage rooms to warm production halls. The combination of robust design, high protection rating, and flexible expandability makes the Eaton T0-3-8401/E a reliable component in industrial control systems.
| Features | |
| Type | Toggle switch |
| Number of poles | 3P |
| Housing material | Plastic |
| Product colour | Black, Metallic |
| International Protection (IP) code | IP65 |
| Built-in display | |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 50 °C |
| Weight & dimensions | |
| Width | 48 mm |
| Height | 48 mm |
Questions & answers
What is the delivery time of Eaton 091047 T0-3-8401/E toggle switch ?
The article Eaton 091047 T0-3-8401/E toggle switch is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 091047 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 091047 T0-3-8401/E toggle switch always at the best possible price. We can give you a discount of 2% on Eaton 091047 T0-3-8401/E toggle switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 091047 T0-3-8401/E toggle switch we can offer you a price of 41,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
