Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2
|
-85% 913,80 EUR 6.176,80 EUR |
|||||||||||
|
( 1.087,42 EUR incl. VAT ) ≈ £784.04 | ≈ $1,059.09 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 1981195 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 60099788 | ||||||||||
| UPC/EAN: | 5944037000334 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Laying fiber optic cable from Draka ComteqFurther products in category Laying fiber optic cable
All products of Draka Comteq
Product information for Draka Comteq 60099788:

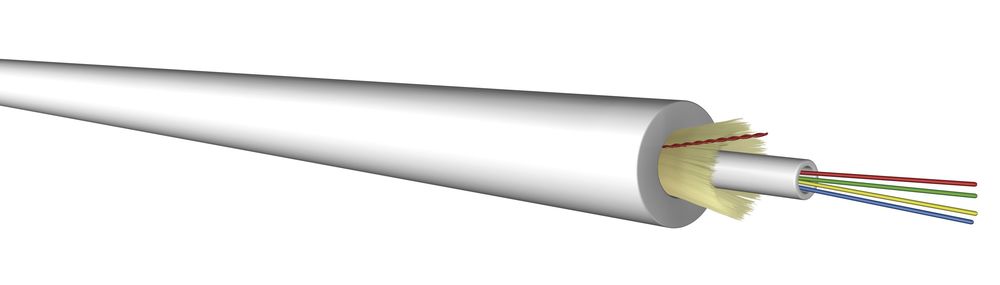

Draka UC home fibre idrop 250 drag & blow I-DH 4 G.657A2 Article No. 60099788
SHORT DESCRIPTION:
The cable has a diameter of 2.3mm and is suitable for both standard installation and for blowing into a 7x1.5mm tube.
250N central core cable with up to 12 fibres, aramid rovings and FireRes® jacket, VDE: ID(ZN)H. Developed as a highly flame-retardant cable for installation in access networks, also using blowing technology and indoors.
CABLE FEATURES:
DIN VDE designation: I-DH
fibre optic cable with central loose tube for the optical subscriber connection.
The cable is metal-free with a tensile strength of 250N.
The jacket is made of halogen-free, flame-retardant material according to IEC60332-1, IEC60332-3-24, IEC60754-1/2, IEC61034, EN50399
for use in public buildings with high risk to people and higher Euro fire class B2ca s1a d1 a1.
Use as a flame-retardant cable indoors.
The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-2.
The UChome fiber idrop 250 drag& blow B2ca. s1d1a1 is available with 4 bend-insensitive G657.A2 single-mode fibers BBXS on a 500m drum.
Use as a flame-retardant cable indoors.
Fiber quality: Singlemode OS2 G.657 A2
Number of fibers: 4
Tensile force: 3000 N
Euroclass: B2ca s1d1a1
DoP No.: 1007041
Applications: Indoor
Color: White
Outside Diameter: 2.3 mm
Cable sheath: Sheath made of halogen-free, flame-retardant material
Type: UC home fibre idrop 250 drag & blow I-DH
The item price shown refers to 500 meters Draka Comteq 60099788
SHORT DESCRIPTION:
The cable has a diameter of 2.3mm and is suitable for both standard installation and for blowing into a 7x1.5mm tube.
250N central core cable with up to 12 fibres, aramid rovings and FireRes® jacket, VDE: ID(ZN)H. Developed as a highly flame-retardant cable for installation in access networks, also using blowing technology and indoors.
CABLE FEATURES:
DIN VDE designation: I-DH
fibre optic cable with central loose tube for the optical subscriber connection.
The cable is metal-free with a tensile strength of 250N.
The jacket is made of halogen-free, flame-retardant material according to IEC60332-1, IEC60332-3-24, IEC60754-1/2, IEC61034, EN50399
for use in public buildings with high risk to people and higher Euro fire class B2ca s1a d1 a1.
Use as a flame-retardant cable indoors.
The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-2.
The UChome fiber idrop 250 drag& blow B2ca. s1d1a1 is available with 4 bend-insensitive G657.A2 single-mode fibers BBXS on a 500m drum.
Use as a flame-retardant cable indoors.
Fiber quality: Singlemode OS2 G.657 A2
Number of fibers: 4
Tensile force: 3000 N
Euroclass: B2ca s1d1a1
DoP No.: 1007041
Applications: Indoor
Color: White
Outside Diameter: 2.3 mm
Cable sheath: Sheath made of halogen-free, flame-retardant material
Type: UC home fibre idrop 250 drag & blow I-DH
The item price shown refers to 500 meters Draka Comteq 60099788
Questions & answers
What is the delivery time of Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2 ?
The article Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2 is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Draka Comteq 60099788 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2 always at the best possible price. We can give you a discount of 2% on Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 meters of Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2 we can offer you a price of 886,39 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Draka Comteq 60099788 DRAKA UC home fiber idrop 250 drag & blow I-DH 4 G.657A2 is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
