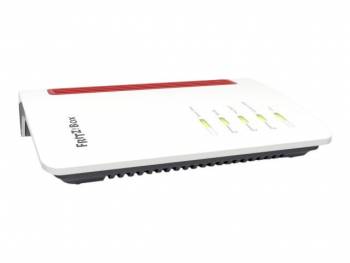

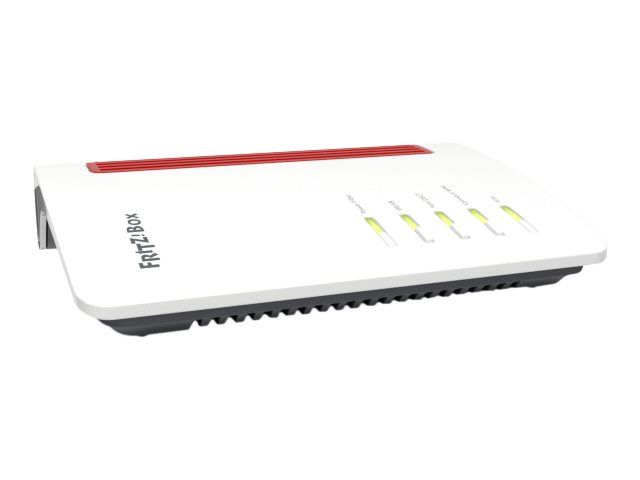

FRITZ! GmbH 20002960 AVM FRITZ!Box 5530 Fiber content_copy

Fiber optic power with fast Wi-Fi 6The FRITZ!Box 5530 Fiber offers the complete FRITZ!Box functionality on the fiber optic connection. Thanks to interchangeable modules, the FRITZ!Box 5530 can be used very flexibly on all common fiber optic connections with up to 1,000 Mbit/s (AON/GPON); a media converter or upstream modem is not necessary. Depending on the connection type, the appropriate plug-in module can be inserted into the integrated slot for fiber optic modules (transceivers) in SFP format. In order to safely distribute the gigabit speed wirelessly throughout the house, the FRITZ!Box 5530 is equipped with the new Wi-Fi 6. A 2.5 Gigabit LAN connection rounds off the high-speed features.

Highlights

• Router with SFP cage for fiber optic modules (transceivers) in SFP format
• One AON and GPON module each included
• More performance, flexibility and the most stable connections with modern Wi-Fi 6
• WLAN with up to 3 GBit/s - 5 GHz: 2,400 MBit/s (HE160) and 2.4 GHz: 600 MBit/s (QAM1024)
• VoIP telephone system with versatile convenience functions for all telephones (analog, DECT and IP telephones)
• DECT base for up to 6 cordless telephones (e.g. all FRITZ!Fon models) and smart home applications
• Up to 5 integrated answering machines with remote access and optional email forwarding
• FRITZ!OS offers a simple, multilingual user interface for all settings
• Parental controls with versatile filters, e.g. B. time-limited Internet access, blocking of Internet pages and much more
• Always new functions through regular updates, always up to date through optional auto-update

Product type

• Stationary router
• ear category (ElektroG): relevant, category 6: small devices of IT and telecommunications technology, small devices of IT and telecommunications technology B2C

Specifications

• Area of application: Indoor
• Mode type: Fiber optic

Shipping

• WEEE: 86990390

Connections

• Total number of copper ports: 3
• Total number of fiber optic ports: 1
• Number Analogue interfaces: 1

Functions

• DHCP server
• Hotspot
• VPN
• UTM functionality: network firewall, translation of network addresses (NAT), VPN support
• wall-mountable
• telephony functionality: integrated
• number of DECT devices: 6
• DECT-ULE
• Han -Fun
• Media server
• Parental controls

Power supply

• Power supply: external

data transmission

• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11a - WiFi 2, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
• Security standard: WPA, WPA2, WPA3, WPS
• WLAN frequency band: dual band
• Bandwidth: 2.5G-Base-T
• WPS
• time-controlled WLAN > Basic features
• Color: White
• Height: 37 mm
• Length/Depth: 150 mm
• Width: 208 mm
• Weight: 341 g

Scope of delivery

• FRITZ!Box 5530 Fiber
• 1x FRITZ!SFP AON
• 1x FRITZ!SFP GPON
• power supply
• 4 meter fiber optic cable (LC/APC > LC/APC)
• 1, 5 meter LAN cable
• installation instructions

Type: WRLS
