Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S

Your rating:
Average rating
product review for Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S
( 4.4 / 5 ) 62 ratings

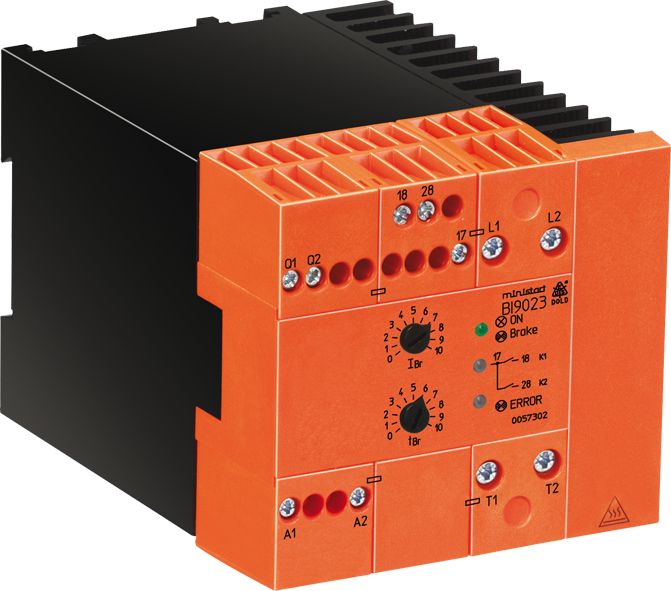

Dold 0057302
This image may differ from the desired article.
508,14 EUR
( 604,69 EUR incl. VAT )
≈ £425.31  |  ≈ $558.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S
Datasheet:file_download Download
Lieske Part No.:514766
Mfg Part No: 0057302
UPC/EAN: 4030641573027
Weight:0.84 kg
Type:BI9023 UH AC400V 60A
Graduated prices net
From piecesPrice per pieces
3489,08 EUR
6470,03 EUR
9450,97 EUR
12431,92 EUR

Product information for Dold 0057302:

The Dold brake device BI9023 UH AC400V 60A is an industrial brake device for DC braking of asynchronous motors. It is used for safe and wear-free braking of motors in applications such as sawmills, centrifuges, woodworking machines, textile machines, and conveyor systems. The device operates according to the standard IEC/EN 60947-4-2 and is designed for use in industrial environments, mounted on a 35 mm standard rail. The braking function is achieved via a single-phase rectifier, allowing DC current to flow through the motor's stator winding to reduce its speed in a controlled manner.

Applications
This device is suitable for all asynchronous motors and is particularly used in machines where rapid and safe braking is required. Typical application areas include sawmills, centrifuges, woodworking machines, textile machines, and conveyor systems. The simple mounting allows installation in existing systems without extensive modifications.

Functions and Equipment in Detail
The brake device features an adjustable braking time from 1 to 20 seconds, which can be adapted to specific applications. The braking current is adjustable up to 80 A, with the specified value being 60 A. The rated voltage is 2AC 200 to 480 V, and the auxiliary voltage is AC 400 V. The contact configuration includes two normally open contacts (2 NO contacts), used for controlling the external brake contactor. An integrated alarm output indicates the operating status, and a temperature monitoring system protects the device from overheating.

Technology Explained Simply
Braking is achieved through phase-cut control, whereby the braking current is applied to the motor windings via terminals T1 and T2. The safety time of 750 ms ensures that the motor contactor is fully de-energized before the braking current flows, preventing induced voltages. After the set braking time has elapsed, the current is switched off, and the device is ready for restart after a reset time of 350 ms. The green LED indicates that the auxiliary voltage is present, while the yellow LEDs indicate the status of relays K1 and K2. A fault code is indicated by flashing LED signals, with the number of flashes indicating the fault code (e.g., 4 for missing voltage L1-L2).

Compatibility and Accessories
It is designed for use with asynchronous motors and can be integrated into existing control systems. The width is 90 mm, enabling compact mounting on the standard rail. The UKCA approval is specified, allowing use in relevant markets.

Mounting and Installation
The device is mounted on a 35 mm standard rail. The connection terminals L1-L2 are for the supply voltage of the braking system, while terminals A1-A2 receive the auxiliary voltage (AC 400 V). The interlock contact Q1-Q2 is connected to the motor contactor. Installation must follow the instructions in the datasheet, ensuring correct wiring and compliance with safety regulations.

Operational Advantages
The device is wear-free and maintenance-free, reducing operating costs and increasing availability. The adjustable parameters of braking current and braking time allow adaptation to different motors and applications. The integrated temperature monitoring and fault indication ensure high operational safety. The simple mounting and integration into existing systems reduce installation effort.

Technical data
Braking current adjustable up to max.80 A
Braking time adjustable up to max.20 s
Width90 mm
TypeBI 9023
External brake contactor requiredYes
Signalling outputYes
Temperature monitoringYes
Variant
Auxiliary voltageAC 400 V
Braking current60 A
Braking time1 - 20 s
Contact equipping2 NO contacts
Nominal voltage2AC 200 - 480 V
Approvals and MarkingsUKCA
VariantAdjustable braking time 1 ... 20 s


Product data sheet
Datasheet for Dold 0057302, EAN: 4030641573027

Questions & answers

What is the delivery time of Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S ?

The article Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0057302 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S always at the best possible price. We can give you a discount of 2% on Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0057302 BI9023 UH AC400V 60A brake device 2AC200-480V 1-20S we can offer you a price of 489,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
