Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay

Your rating:
Average rating
product review for Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay
( 4.6 / 5 ) 7 ratings

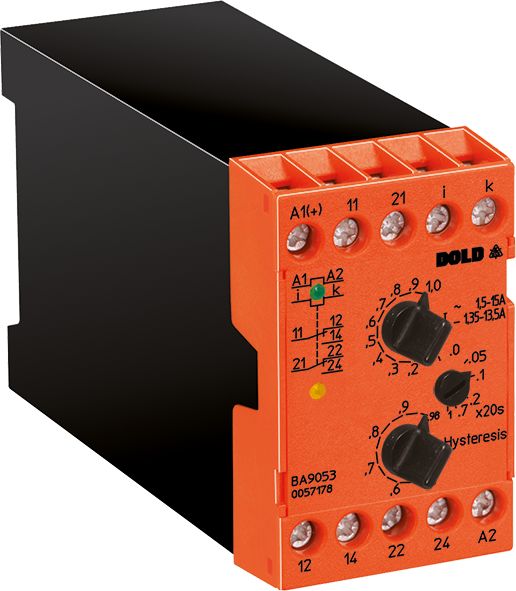

Dold 0053103
This image may differ from the desired article.
Dold 0053103Dold 0053103
263,30 EUR
( 313,33 EUR incl. VAT )
≈ £220.38  |  ≈ $289.37
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay
Datasheet:file_download Download
Lieske Part No.:368774
Mfg Part No: 0053103
UPC/EAN: 4030641531034
Weight:0.31 kg
Type:BA9053/010 AC20-200mA AC230V 0-20S
Graduated prices net
From piecesPrice per pieces
4253,43 EUR
8243,55 EUR
12233,68 EUR
16223,81 EUR

Product information for Dold 0053103:

The Dold current relay BA9053/010 is an overcurrent relay of the VARIMETER series, designed for monitoring single-phase DC and AC power networks. It is used for continuous monitoring of the current consumption of electrical loads, enabling early detection of deviations from the setpoint and thus preventing failures in industrial plants or railway applications. The device setting is performed via rotary switches on the front panel, ensuring simple and user-friendly configuration. The device operates on the operating current principle and switches when the set current value is exceeded, with an integrated switching delay of 0 to 20 seconds. This delay prevents unwanted tripping during short-term current surges, for example during motor start-up.

Applications
This relay is designed for use in industrial plants and railway applications, where high operational safety and reliability are required. It monitors current flow in single-phase systems and can be used as both an overcurrent and undercurrent relay, with hysteresis dependent on the set value. The galvanic isolation between auxiliary circuit and measuring circuit ensures safe and interference-free measurement. The measurement frequency can reach up to 5 kHz, enabling use in systems with rapid signal changes.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which can be used to control external circuits. The auxiliary voltage is AC 230 V, allowing operation in standard enclosures. The LED indicator signals operational readiness (green LED) and activation of the output relay (yellow LED). Adjustment is done via a rotary switch, where both the pickup value and the drop-out value can be set using hysteresis. The width is 45 mm, enabling compact installation in standard enclosures.

Technology Explained Simply
The relay measures the arithmetic mean of the rectified measurement current. For AC current, the device is calibrated to the RMS value, enabling accurate measurement even with sinusoidal loads. The switching delay (0–20 s) ensures that the relay only switches after the set time has elapsed once the current exceeds the set value. This prevents false tripping during short-term current surges. The start-up bypass is not available in this variant, so no special suppression of start-up currents is provided. The galvanic isolation between measuring and auxiliary circuits protects against interference and increases safety.

Compatibility and Accessories
The relay is designed for use in single-phase systems and can be combined with other VARIMETER models. The certifications UKCA and CCC confirm compliance with applicable safety and quality standards. The devices are manufactured in accordance with IEC/EN 60255-1 and IEC/EN 60947-1, ensuring reliability and safety in industrial applications.

Mounting and Installation
The device is intended for mounting in enclosures and is connected via the designated terminals (A1/A2 for auxiliary voltage, i/k for current input). Terminals 11–14 and 21–24 serve the two changeover contacts. Mounting is done in standard enclosures with a width of 45 mm. Installation requires no special tools or additional components, as all necessary connections are directly available on the device.

Operational Advantages
By enabling early detection of current deviations, the relay allows for preventive maintenance, avoiding failures and increasing productivity. The clear LED indicator simplifies fault localization, and galvanic isolation increases operational safety. The high overload capacity of the device ensures robust performance even under demanding operating conditions. The adjustability of pickup and drop-out values provides flexibility in adapting to different load profiles.

Technical data
1- / 3-phase1
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Width45 mm
TypeBA 9053
Operate delayYes
Variant
Auxiliary voltageAC 230 V
Contact equipping2 changeover contacts
Measuring rangeAC 20 - 200 Ma
Start up delayWithout
Switching delay0 - 20 s
Approvals and MarkingsUKCA, CCC
VariantOvercurrent relay. Energized on trip. Time delay at response value


Product data sheet
Datasheet for Dold 0053103, EAN: 4030641531034

Questions & answers

What is the delivery time of Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay ?

The article Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053103 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay always at the best possible price. We can give you a discount of 2% on Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0053103 BA9053/010 AC20-200mA AC230V 0-20S current relay we can offer you a price of 253,43 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
