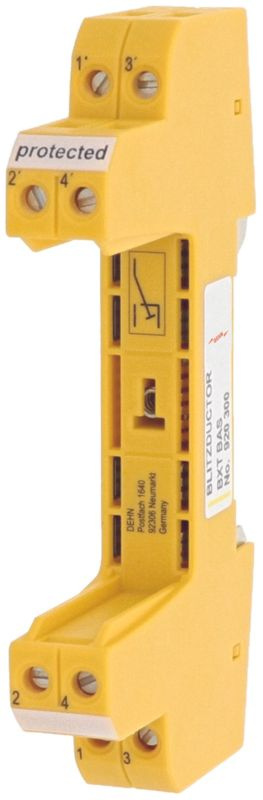

DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU

Your rating:
Average rating
product review for DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU
( 4.6 / 5 ) 31 ratings
DEHN 920300
This image may differ from the desired article.
DEHN 920300DEHN 920300
54,05 EUR 54,65 EUR
( 64,32 EUR incl. VAT )
≈ £45.02  |  ≈ $59.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU
Datasheet:file_download Download
Lieske Part No.:100892
Mfg Part No: 920300
UPC/EAN: 4013364109179
Weight:0.035 kg
Type:BXT BAS
Graduated prices net
From piecesPrice per pieces
650,00 EUR
1245,94 EUR
2441,89 EUR
3637,83 EUR

Product information for DEHN 920300:

The DEHN BXT BAS is a four-pole base unit for the BLITZDUCTOR XT modular system, designed as a universal pass-through terminal. It is used to accommodate surge protection modules in enclosures and enables space-saving installation on the DIN rail mounting surface. The base unit features a snap-in fastening, ensuring secure earthing of the installed surge protection module. Since no components of the protection circuit are integrated into the base unit, maintenance and replacement tasks are limited exclusively to the protection modules. This allows for module replacement even during ongoing operation of the signal circuit, as the signal remains available when the module is pulled out.

Lightning and overvoltage protection
The BXT BAS is part of a modular protection system that safeguards against lightning current and overvoltage. It is used in end-device protection to shield sensitive electronic devices and systems from transient voltage spikes. The modular design enables flexible adaptation to different protection requirements, with the base unit being universally compatible with various surge protection modules.

Space-saving construction
The base unit is designed to be particularly space-saving and is ideal for installation in enclosures with limited space. With a width of 12 mm, up to four individual conductors or two twin conductors can be connected in two layers. The connection technology allows for stacked connection of conductors belonging to a pair, simplifying wiring. The universal use of the base unit reduces inventory requirements and facilitates pre-wiring as well as service operations.

Module replacement and maintenance
Since all protection components are integrated into the surge protection module, maintenance work is limited to replacing the module. The base unit remains unchanged and can continue to be used. The module locking mechanism ensures reliable operation of the surge protector even under vibration and shock loads up to 30 times the acceleration of gravity. Module replacement is uncomplicated and smooth due to the function-optimized design.

Compatibility and accessories
The BXT BAS is compatible with various surge protection modules from the BLITZDUCTOR XT family, including models such as BXT ML4 B 180, BXT ML2 B 180, BXTU ML4 BD 0-180, and others. These modules can be used depending on requirements for protecting data lines, telephone lines, or other signals. Combining with LifeCheck modules enables condition monitoring of the surge protector, with DEHNrecord family test devices able to detect pre-stress conditions non-contact.

Applications
The base unit is suitable for use in industrial and commercial installations, particularly in enclosures where compact and reliable installation of overvoltage protection systems is required. It is used in applications requiring high availability and protection integrity, such as in automation technology, telecommunications, or energy technology. The robust construction also makes it suitable for environments with mechanical stress.

Technology explained simply
The base unit serves as the mechanical and electrical foundation for the surge protection module. It provides mechanical fixation to the DIN rail mounting base and ensures earthing. The electrical connection is made via the pass-through terminal, which continues to transmit the signal even when the module is pulled out. The protection function is fully handled by the module, making the base unit maintenance-free. The module locking mechanism ensures a stable connection, even under dynamic loads.

Operational advantages
The use of the BXT BAS reduces space requirements in the enclosure and simplifies installation and maintenance. The modular design enables flexible adaptation to different protection requirements. The ability to replace modules even during ongoing operation increases operational continuity. The universal use of the base unit reduces inventory stock and simplifies order logistics complexity.

General
Number of poles4
Construction typeThrough-wiring clamp
Mounting methodDIN rail mounting
Groundingvia DIN rail mounting bracket with snap fastening
Maintenanceprotective modules only
Load capacityup to 30 times earth acceleration
CompatibilityBLITZDUCTOR XT surge protection modules
Signal availability with module pulled outYes
Module lockingYes


Product data sheet
Datasheet for DEHN 920300, EAN: 4013364109179

Questions & answers

What is the delivery time of DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU?

The article DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 920300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU always at the best possible price. We can give you a discount of 2% on DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 920300 BXTBAS base unit 4-pole BLITZDUCTOR XT/XTU we can offer you a price of 50,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
