DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck

Your rating:
Average rating
product review for DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck
( 4.5 / 5 ) 16 ratings

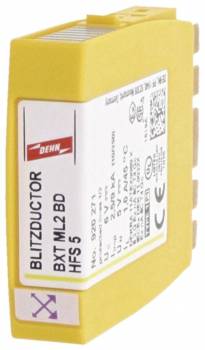

DEHN 920271
This image may differ from the desired article.
DEHN 920271DEHN 920271DEHN 920271
199,02 EUR 201,37 EUR
( 236,83 EUR incl. VAT )
≈ £165.78  |  ≈ $218.32
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck
Datasheet:file_download Download
Lieske Part No.:894681
Mfg Part No: 920271
UPC/EAN: 4013364117556
Weight:0.022 kg
Type:BXT ML2 BD HFS 5
Graduated prices net
From piecesPrice per pieces
5187,08 EUR
10175,14 EUR
15163,20 EUR
20151,26 EUR

Product information for DEHN 920271:

Space-saving combined surge arrester module with LifeCheck for protecting one double wire of unearthed high-frequency bus systems or video transmissions, with either direct or indirect shield earthing. LifeCheck detects thermal or electrical overload conditions after which the surge arrester must be replaced. The indication is contactless using DEHNrecord LC / SCM / MCM.

Standards
CertificationUL
UL StandardUL 497b
UL File NumberE156818
Technical data
SPD classM
Max. continuous operating voltage DC (UC)6.0 V
Nominal current at 45 °C (IL)1.0 A
D1 Total lightning impulse current (10/350 µs) (Iimp)9 kA
C2 Total nominal discharge current (8/20 µs) (In)20 kA
Series resistance per line1.0 Ohm
Cut-off frequency line-line (fG)100.0 MHz
ApprovalsCSA, UL 497B, ATEX, IECEx, CCC, CSA & USA Hazloc, SIL
Test values according to UL 497b
Type (SPD classification)BXT ML2 BD HFS 5
Strike voltage Line to Ground 100 V/s min.70 V
Strike voltage Line to Ground 100 V/s max.110 V
Surge voltage Line to Ground 100 V/s min.70 V
Surge voltage Line to Ground 100 V/s max.550 V


Product data sheet
Datasheet for DEHN 920271, EAN: 4013364117556

Questions & answers

What is the delivery time of DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck?

The article DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 920271 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck always at the best possible price. We can give you a discount of 2% on DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 920271 BXTML2BDHFS5 combination conductor for 1 twin cable BLITZDUCTOR XT LifeCheck we can offer you a price of 187,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
